xx08000166.vsd
J
G
F
K
H
IEC08000166 V1 EN

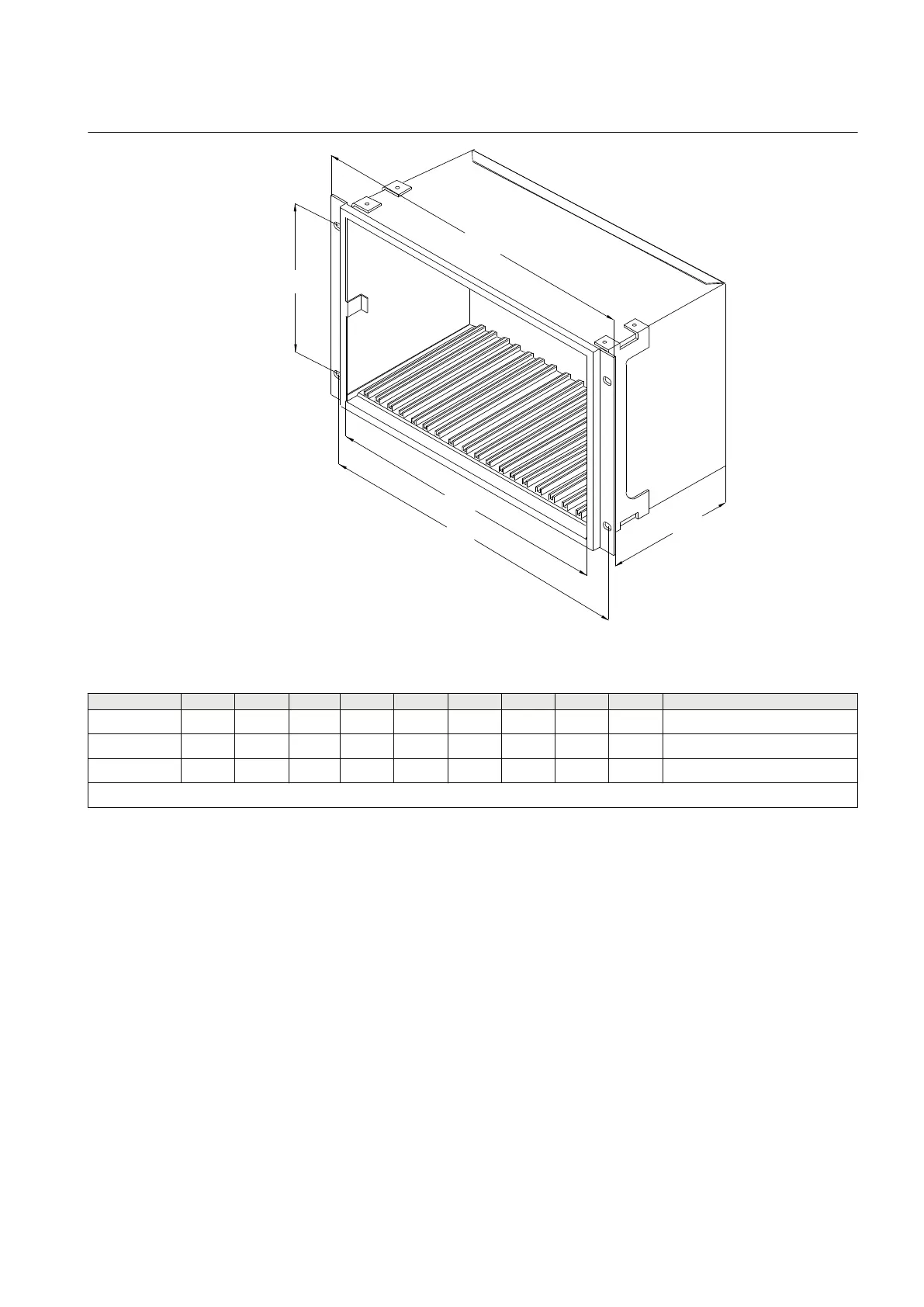

Figure 2: Case without rear cover with 19” rack mounting kit
Case size (mm) A B C D E F G H J K
6U, 1/2 x 19” 265.9 223.7 201.1 252.9 205.7 190.5 203.7 - 187.6 -
6U, 3/4 x 19” 265.9 336.0 201.1 252.9 318.0 190.5 316.0 - 187.6 -
6U, 1/1 x 19” 265.9 448.3 201.1 252.9 430.3 190.5 428.3 465.1 187.6 482.6
The H and K dimensions are defined by the 19” rack mounting kit
1MRK 504 088-UEN C Section 5
Installing the IED
25
Installation and commissioning manual
