5.2.5 Wall mounting dimensions
en04000471.vsd
E
A
B
C
D
IEC04000471 V1 EN

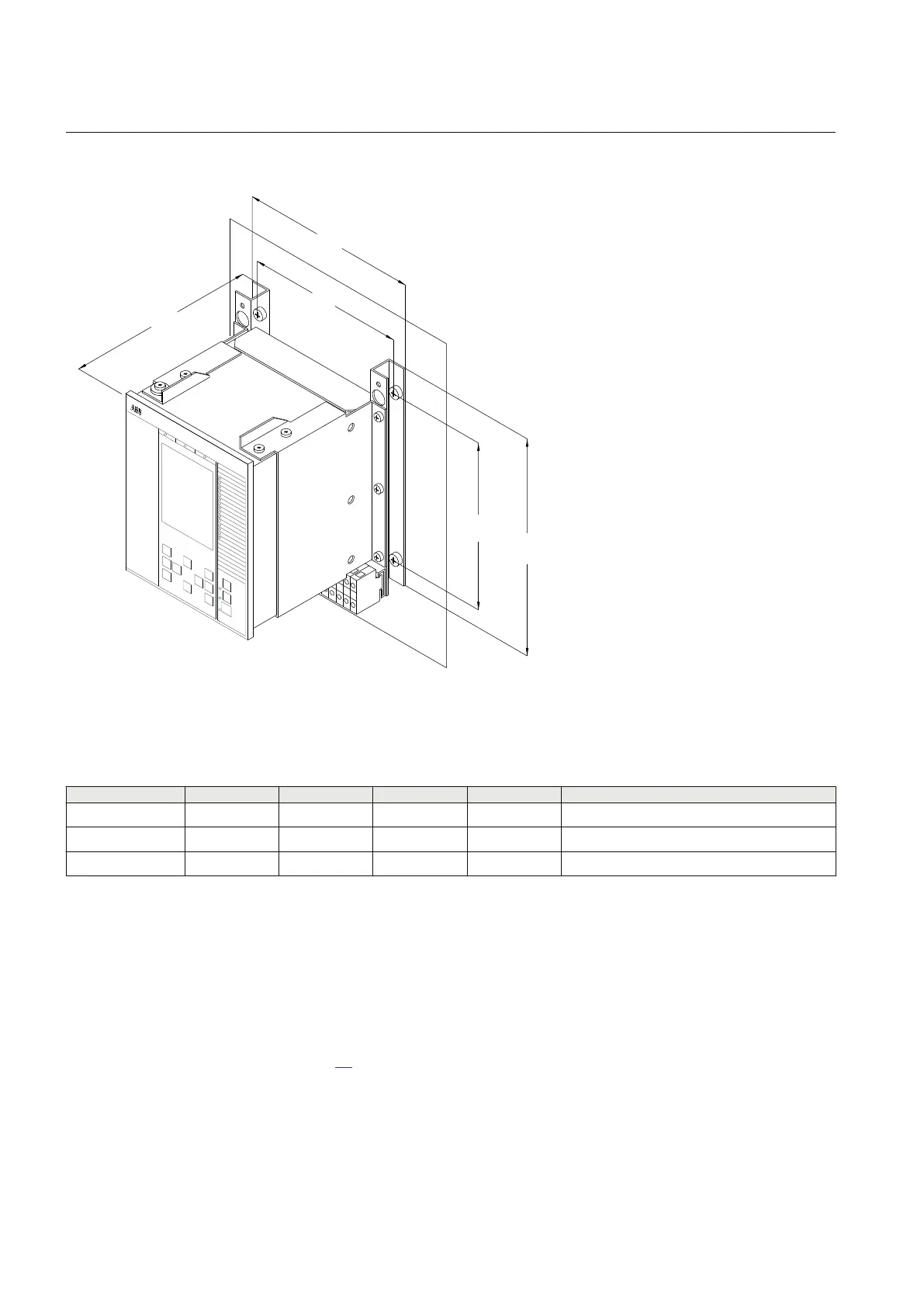

Figure 9: Wall mounting
Case size (mm) A B C D E
6U, 1/2 x 19” 292.0 267.1 272.8 390.0 243.0
6U, 3/4 x 19” 404.3 379.4 272.8 390.0 243.0
6U, 1/1 x 19” 516.0 491.1 272.8 390.0 243.0
5.3 Mounting methods and details
5.3.1
Mounting the IED
The IED can be rack, wall or flush mounted with the use of different mounting kits,
see figure
10.
An additional box of type RHGS can be mounted to one side of a 1/2
or 3/4 IED.
