ABB RET670 Installation And Commissioning Manual

5.3.3.2 Mounting procedure for 19” panel rack mounting
xx08000160.vsd
1a
2
1b
IEC08000160 V1 EN

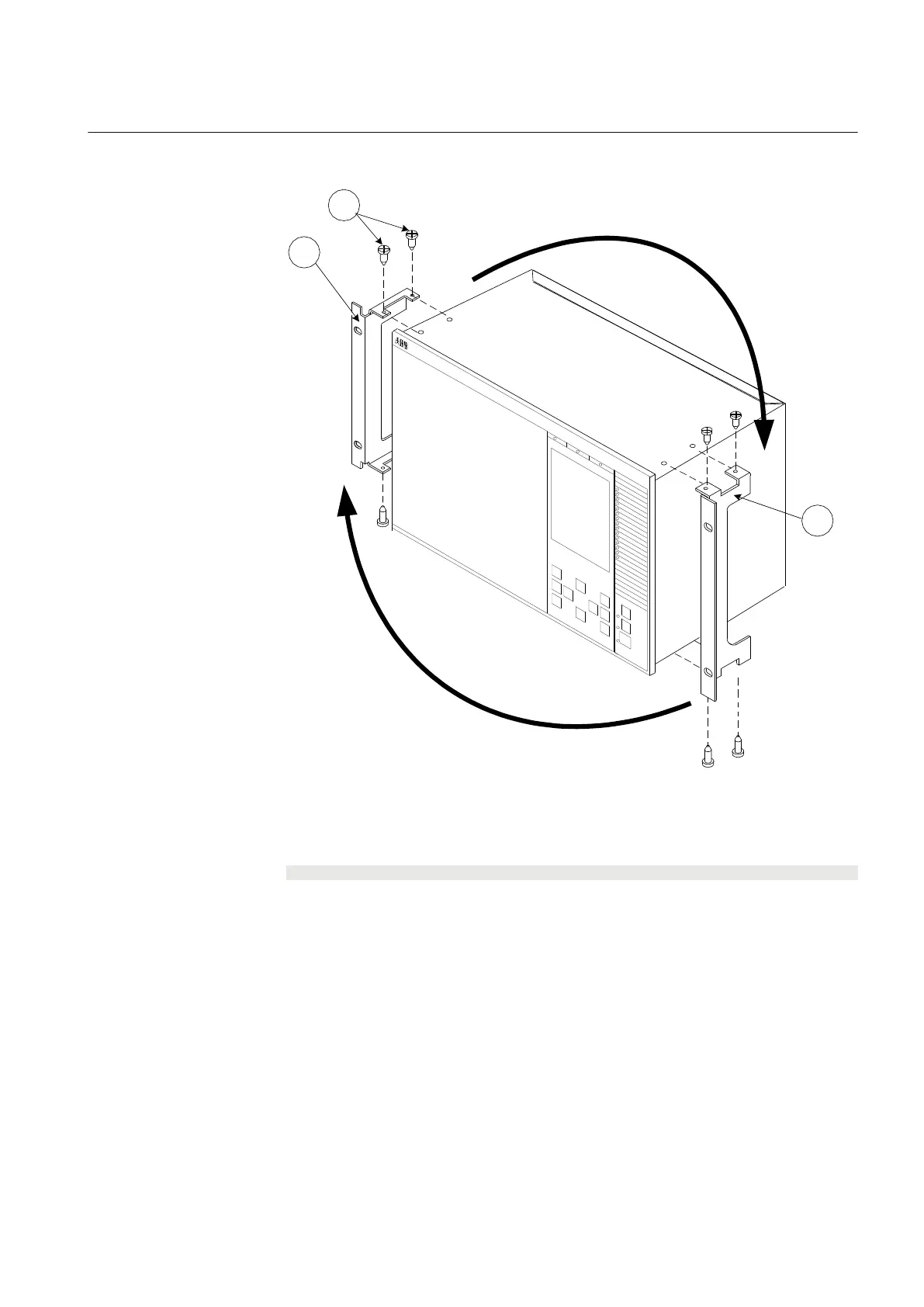

Figure 12: 19” panel rack mounting details
Pos Description Quantity Type
1a, 1b Mounting angels, which can be mounted, either to
the left or right side of the case.
2 -
2 Screw 8 M4x6
Procedure
1.
Carefully fasten the mounting angles (1a, 1b) to the sides of the IED.
Use the screws (2) supplied in the mounting kit.
2. Place the IED assembly in the 19” panel.
3. Fasten the mounting angles with appropriate screws.
1MRK 504 088-UEN C Section 5
Installing the IED
35
Installation and commissioning manual

ABB RET670 Specifications

General

Rated Frequency	50/60 Hz
Inputs	Analog and binary inputs
Application	Protection of power systems
Communication Protocols	IEC 61850, DNP3, Modbus
Operating Temperature Range	-25°C to +55°C
Mounting	Rack mounted
Number of Binary Inputs	Up to 48
Number of Binary Outputs	32
Protection Functions	Overcurrent Protection
Outputs	Binary outputs
Enclosure	IP 54
Type	Line Differential Protection
Number of Analog Inputs	24
