xx06000168.vsd

IEC06000168 V1 EN

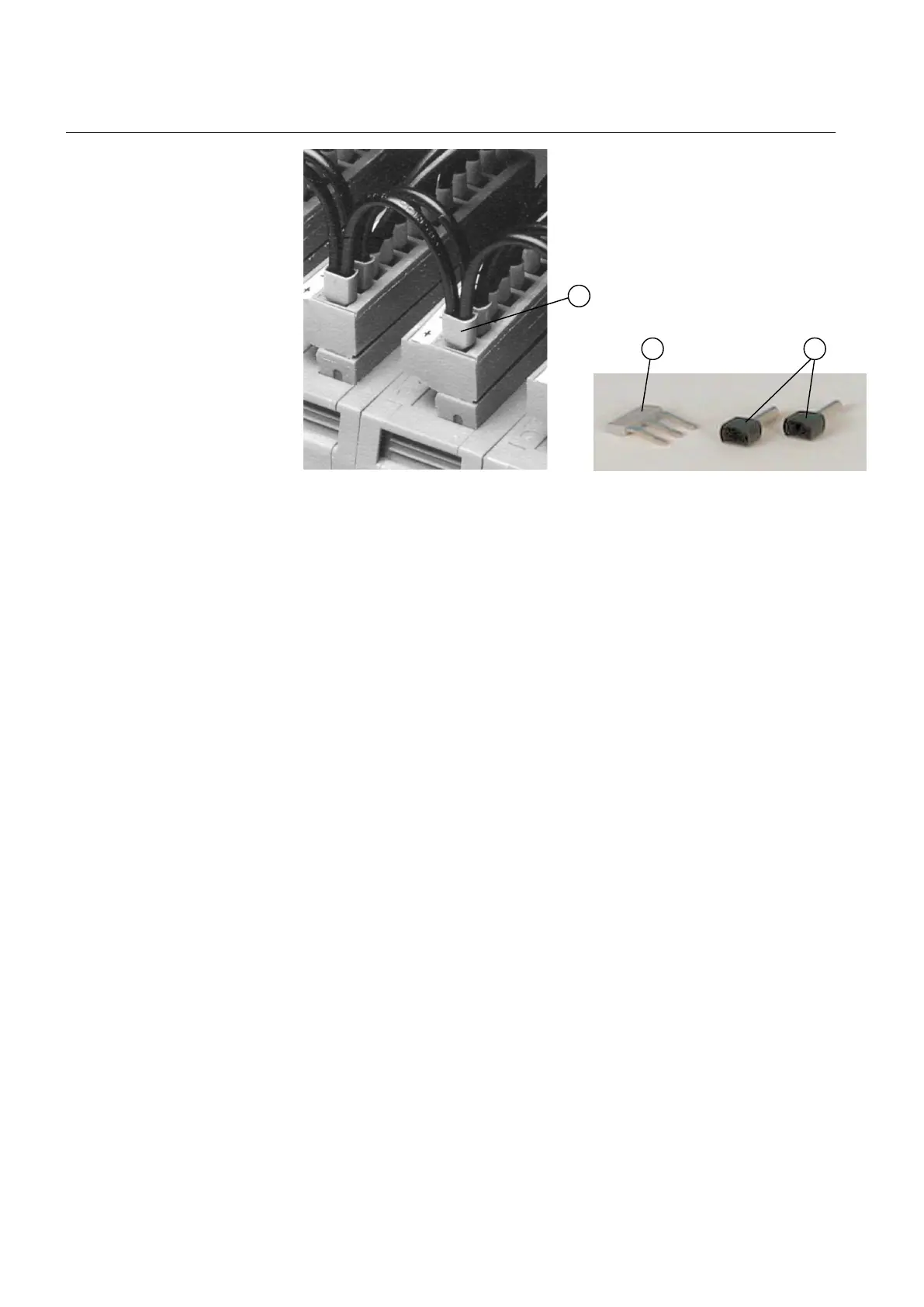

Figure 33: Cable connectors

PosNo Description

1 Is ferrule,

2 A bridge connector, is used to jump terminal points in a connector.

5.4.6 Making the screen connection

When using screened cables always make sure screens are

earthed and connected

according to applicable engineering methods. This may include checking for

appropriate earthing points near the IED, for instance, in the cubicle and/or near the

source of measuring. Ensure that earth connections are made with short (max. 10

cm) conductors of an adequate cross section, at least 6 mm

(AWG10) for single

screen connections.

Section 5 1MRK 504 088-UEN C

Installing the IED

Installation and commissioning manual
