5.3.2.2 Mounting procedure for flush mounting
1
3
5
xx08000161.vsd
4
2
6
IEC08000161 V1 EN

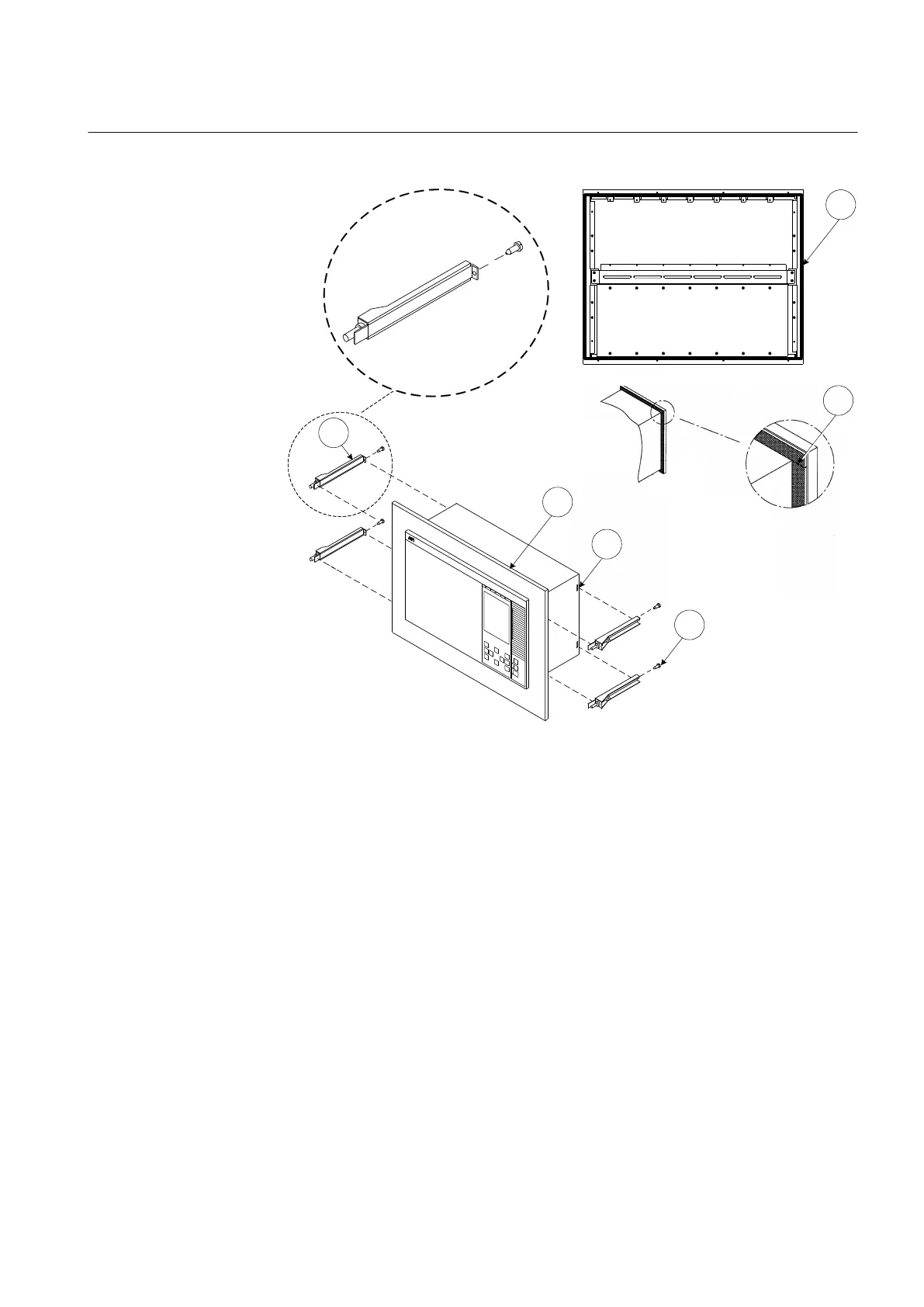

Figure 11: Flush mounting details.
PosNo Description Quantity Type
1 Sealing strip, used to obtain IP54 class. The sealing strip is factory
mounted between the case and front plate.
- -
2 Fastener 4 -
3 Groove - -
4 Screw, self tapping 4 2.9x9.5 mm
5 Joining point of sealing strip - -
6 Panel - -
Procedure
1.
Cut an opening in the panel (6).
1MRK 504 088-UEN C Section 5
Installing the IED
33
Installation and commissioning manual
