ABB RET670 - Page 33

xx08000165.vsd
J
G
F
K
H
IEC08000165 V1 EN

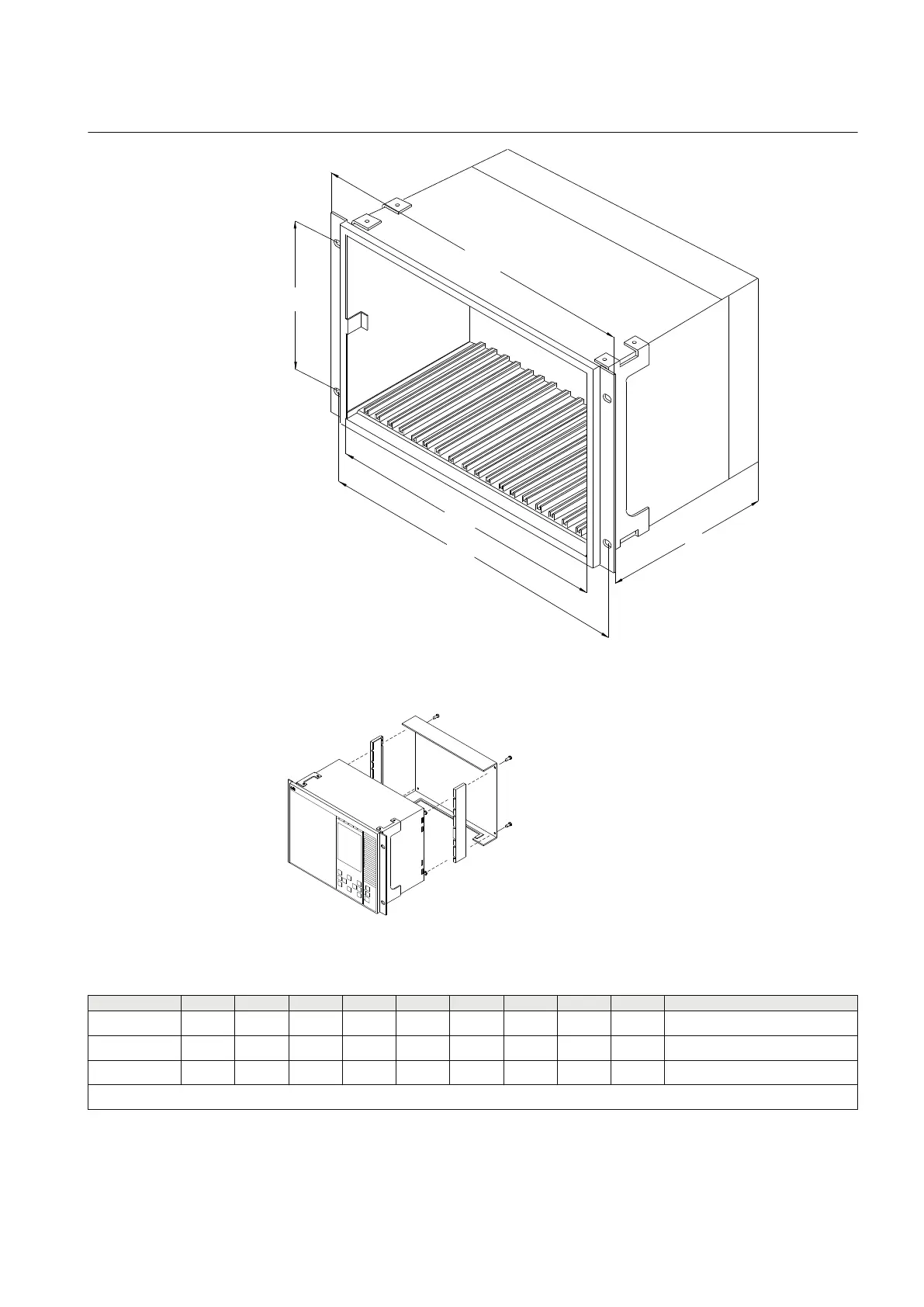

Figure 4: Case with rear cover and 19” rack mounting kit
xx05000503.vsd
IEC05000503 V1 EN
Figure 5: Rear cover case with details
Case size (mm)
A B C D E F G H J K
6U, 1/2 x 19” 265.9 223.7 242.1 255.8 205.7 190.5 203.7 - 228.6 -
6U, 3/4 x 19” 265.9 336.0 242.1 255.8 318.0 190.5 316.0 - 228.6 -
6U, 1/1 x 19” 265.9 448.3 242.1 255.8 430.3 190.5 428.3 465.1 228.6 482.6
The H and K dimensions are defined by the 19” rack mounting kit.
1MRK 504 088-UEN C Section 5
Installing the IED
27
Installation and commissioning manual
