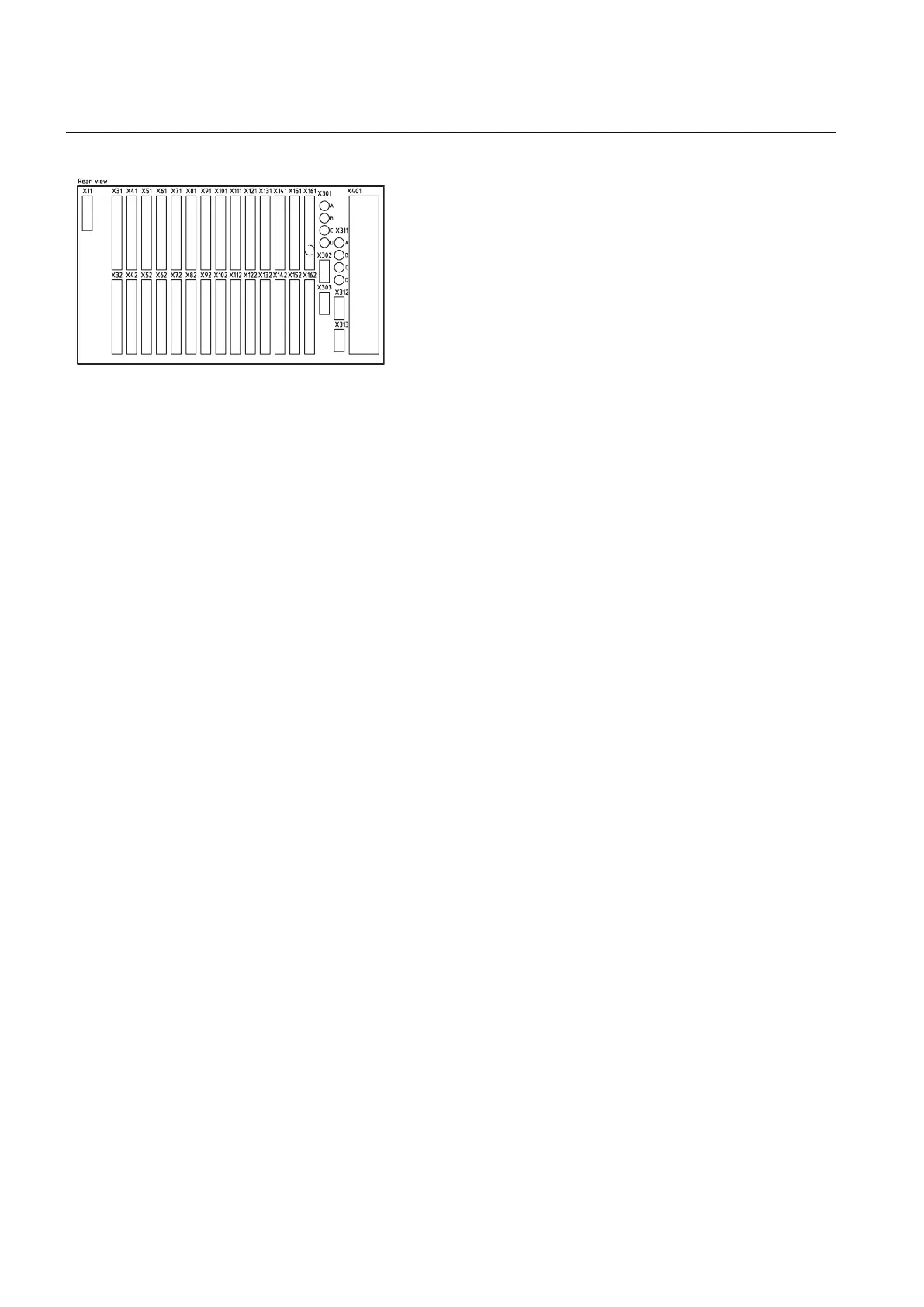

Table 6: Designations for 1/1 x 19” casing with 1 TRM slot

IEC08000474 BG V1 EN

Module Rear Positions

PSM X11

BIM, BOM,

SOM, IOM or

MIM

X31 and X32 etc. to X161

and X162

BIM, BOM,

SOM, IOM, MIM

or GSM

X161 and X162

SLM X301:A, B, C, D

IRIG-B X302

LDCM

X313 and X303

OEM

X311:A, B, C, D

RS485 X312, X313

TRM X401

Note!

1) 2 LDCM can be included. First LDCM always

in position X313, second LDCM always in

position X303.

2) OEM X311:A, B (IEC 61850-8-1). OEM

X311:C, D (IEC 61850-8-1)

Section 5 1MRK 504 088-UEN C

Installing the IED

Installation and commissioning manual
