IEC08000482 BG V1 EN

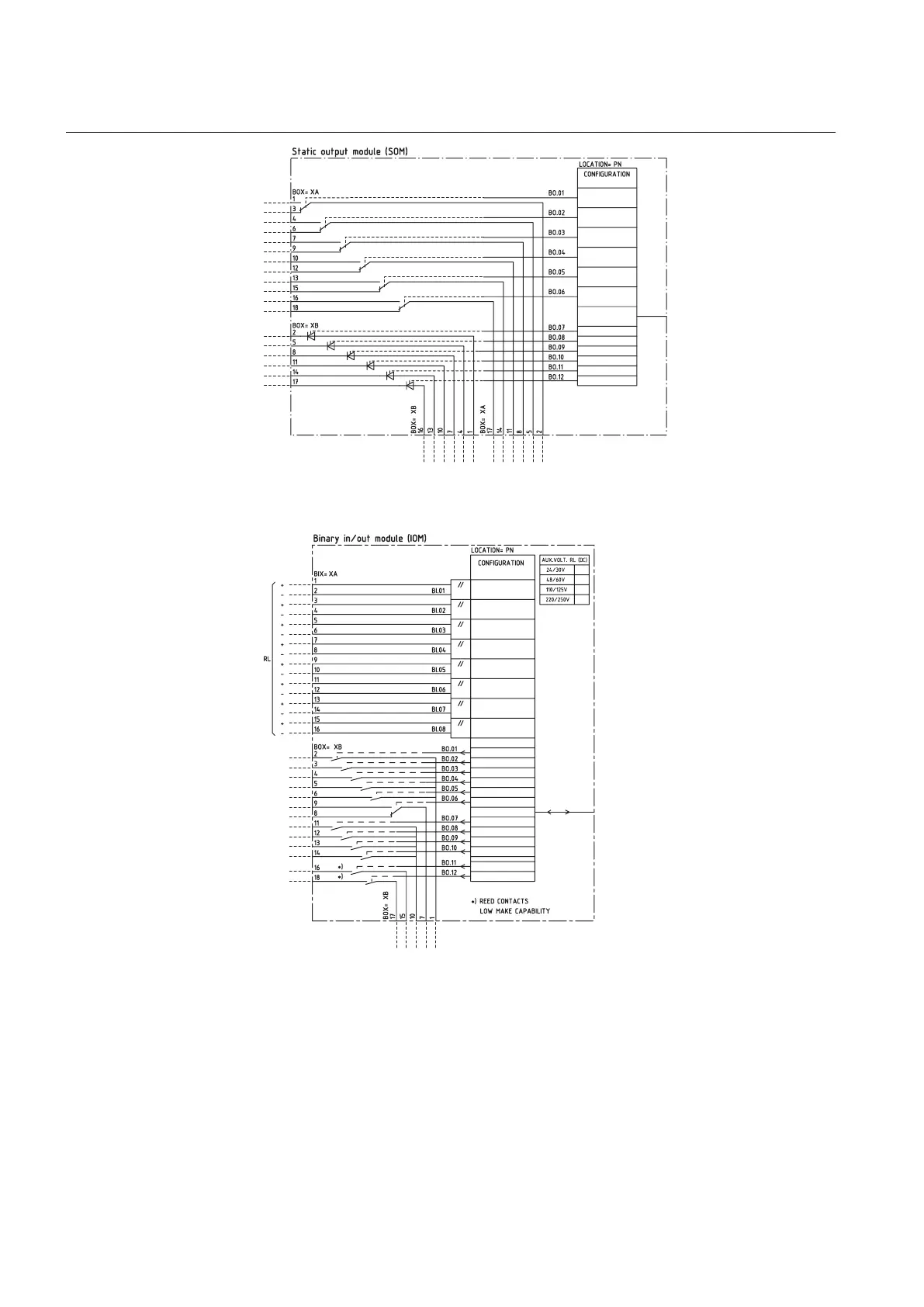

Figure 26: Static output module (SOM)
IEC08000483 BG V1 EN
Figure 27: Binary in/out module (IOM). Input contacts named XA corresponds
to rear position X31, X41, and so on, and output contacts named
XB to rear position X32, X42, and so on.
Section 5 1MRK 504 088-UEN C
Installing the IED
54
Installation and commissioning manual
