ABB i-
bus
®
KNX
Planning and application
244
2CDC508134D
0202 | FC
A/S 1
.x.x.1
4.1.6

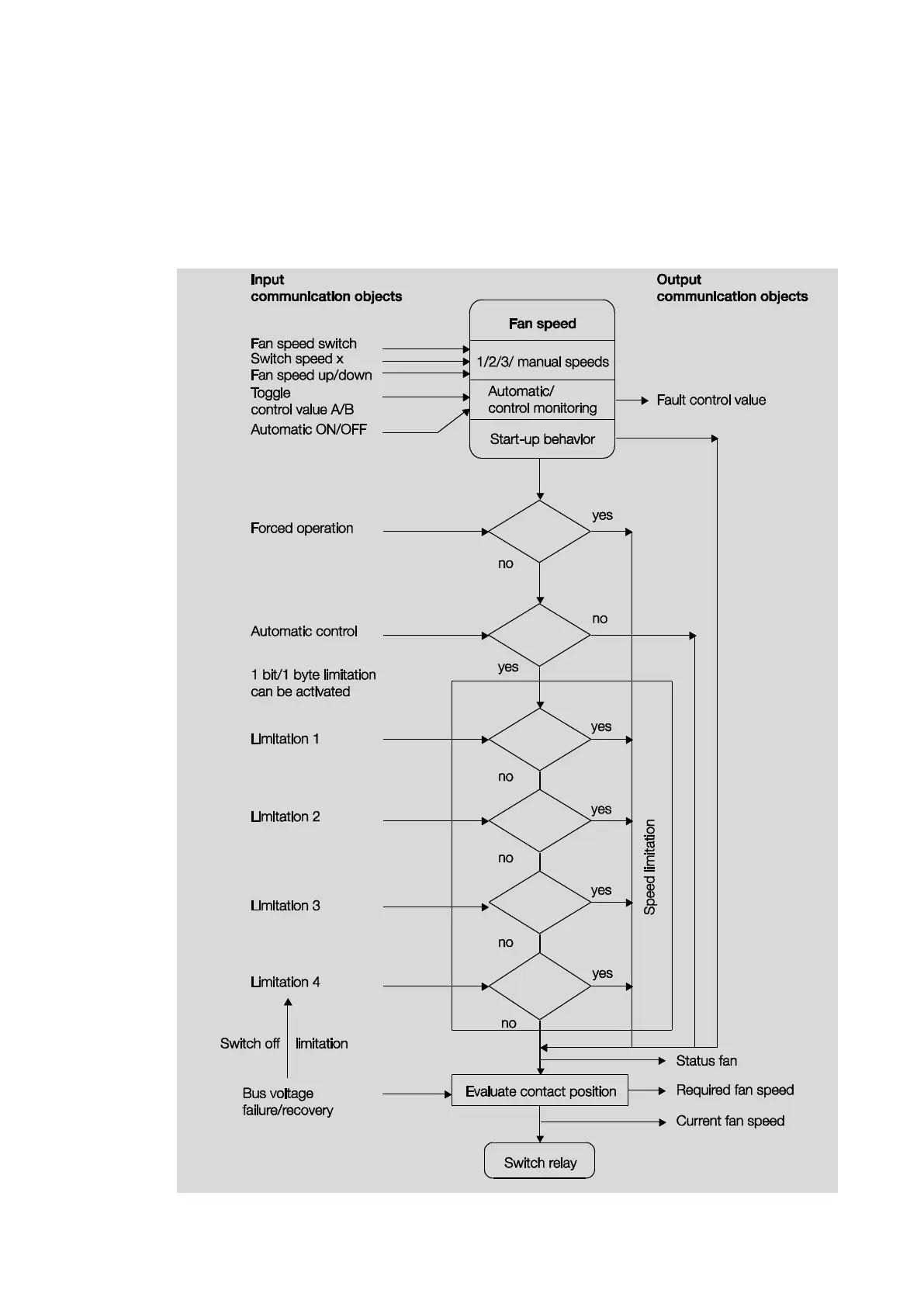

Fan operation functional diagram
The following illustration indicates the sequence in w
hich the fan control functions are processed.
communication objects, which lead to the same box, have the same priority and are processed in the
sequence in which the telegrams are received.
245
247
Table of Contents
Default Chapter
3
Table of Contents
3
1 General
7
Using the Product Manual
7
Notes
8
Product and Functional Overview
9
Product Overview
9
Functional Overview
10
Integration in the I-Bus
11
Tool
11
2 Device Technology
13
Fan Coil Actuator FCA/S 1.1.1.2, PWM, MDRC
13
Technical Data
13
Valve Outputs (Thermoelectric, PWM)
15
Valve Outputs (Motor-Driven, 3-Point)
15
Inputs
15
Resolution, Accuracy and Tolerances
16
Resistance Signals
16
Fan, Rated Current 6 a
18
Fan, Lamp Load 6 a
19
Output, Rated Current 16 a
20
Output, Lamp Load 16 a
21
Connection Diagram (Motor-Driven, 3-Point)
22
Dimension Drawing
24
Fan Coil Actuator FCA/S 1.1.2.2, PWM, MDRC
25
Technical Data
25
Valve Outputs (Thermoelectric, PWM)
27
Valve Outputs (Motor-Driven, 3-Point)
27
Inputs
27
Resolution, Accuracy and Tolerances
28
Resistance Signals
28
Fan, Rated Current 6 a
30
Fan, Lamp Load 6 a
31
Output, Rated Current 20 AX
32
Output, Lamp Load 20 AX
33
Connection Diagram (Thermoelectric, PWM)
34
Dimension Drawing
36
Fan Coil Actuator FCA/S 1.2.1.2, 0-10V, MDRC
37
Technical Data
37
Outputs, Valve V1/2, Analog
39
Inputs
39
Resolution, Accuracy and Tolerances
40
Resistance Signals
40
Fan, Rated Current 6 a
42
Fan, Lamp Load 6 a
43
Output, Rated Current 16 a
44
Output, Lamp Load 16 a
45
Connection Diagram
46
Dimension Drawing
48
Fan Coil Actuator FCA/S 1.2.2.2, 0-10V, MDRC
49
Technical Data
49
Outputs, Valve V1/2, Analog
51
Inputs
51
Resolution, Accuracy and Tolerances
52
Resistance Signals
52
Fan, Rated Current 6 a
54
Fan, Lamp Load 6 a
55
Output, Rated Current 20 AX
56
Output, Lamp Load 20 AX
57
Connection Diagram
58
Dimension Drawing
60
Mounting and Installation
61
Manual Operation
63
Display Elements
64
Operating Controls
65
Commissioning
67
Overview
67
Functions of the Inputs
68
Output Functions
69
Parameters
70
Parameter Window General - Settings
71
Parameter Window Manual Operation - Settings
74
Parameter Window Outputs a
78
Parameter Window Enable Output a
78
Description of the Fan Coil Operating Modes with Valve Drive, Thermoelectric (PWM)
79
Description of the Fan Coil Operation Modes with Valve Drive, Motor-Driven (3-Point) and Analog
85
Parameter Window A: Output (Valve Drive, Thermoelectric (PWM))
99
Parameter Window AB: Output (Valve Drive, Motor-Driven (3-Point))
106
Parameter Window A: Output (Valve Drive, Analog (0
111
Parameter Window Function
115
Parameter Window Security
119
Parameter Window Characteristic Curve
121
Parameter Window Output B, C, D
124
Parameter Window Enable Output E
125
Parameter Window E, F, G: Fan (Multi-Level)
126
Parameter Window Status Messages (Multi-Level)
131
Parameter Window Thresholds (Multi-Level)
136
Parameter Window Automatic Control (Multi-Level)
139
Parameter Window Direct Operation (Multi-Level)
145
Parameter Window Startup/Run-On
147
Parameter Window E, F, G: Fan (Two-Level)
150
Parameter Window E, F, G: Fan (One-Level)
151
Parameter Window Status Messages (Single Speed)
154
Parameter Window Threshold (One-Level)
156
Parameter Window Automatic Control (One-Level)
158
Parameter Window E, F, G: Output (Switch Actuators)
164
Parameter Window H: Output
165
Parameter Window Time
168
Parameter Window Inputs a
172
Parameter Window Enable Inputs a
172
Parameter Window A: Switch Sensor
173
Parameter Distinction between Long and Short Operation - no
175
Parameter Distinction between Long and Short Operation - Yes
182
Parameter Window A: Value/Forced Operation
183
Parameter Distinction between Long and Short Operation - no
186
Parameter Distinction between Long and Short Operation - Yes
192
Parameter Window A: PT100, PT1000 and KTY
193
Parameter Window A: PT100/PT1000
193
Parameter Options for KTY
197
Line Fault Compensation Via Cable Length
199
Line Fault Compensation Via Cable Resistance
200
Parameter Window A: Threshold 1
201
Parameter Window A: Threshold 1 Output
204
Communication Objects
205
Summary of Communication Objects
205
Communication Objects General
209
Communication Objects Valve Drive, Thermoelectric (PWM) and Motor-Driven (3-Point)
213
Communication Objects Fan E, F, G
218
Communication Objects Fan Multi-Level
218
Communication Objects Fan One-Level
225
Communication Objects Switch Actuators E, F, G
230
Communication Objects Output H
231
Communication Objects Inputs a
232
Communication Objects Switch Sensor
233
Communication Objects Value/Forced Operation
235
Communication Objects Temperature Sensor
236
Communication Objects Heating/Cooling
238
Planning and Application
239
Fan Output
240
Fan Operation
240
Fan with Changeover Switch
242
Fan with Step Switch
242
Automatic Operation
242
Direct Operation
244
Switchover between Automatic and Direct Operation
244
Speed Switching Logic
245
Fan Operation Functional Diagram
246
Switch Output
247
Function Diagram
247
Time Function
248
Staircase Light
248
Valve Drives, Valves and Controller
249
Electromotor Valve Drives
249
Electrothermal Valve Drives
249
Control Types
250
Continuous Control
250
Pulse Width Modulation (PWM)
251
Pulse Width Modulation - Calculation
253
Reaction on Bus Voltage Failure, Recovery, Download and ETS Reset
254
Bus Voltage Recovery
254
ETS Reset
255
Download
255
Priorities
256
Appendix
257
Scope of Delivery
257
Status Byte General
258
Status Byte Outputs A, B, C, D
259
Status Byte Fan
260
Ordering Details
261
A.5 Ordering Details
261
Notes
262
A.6 Notes
262
