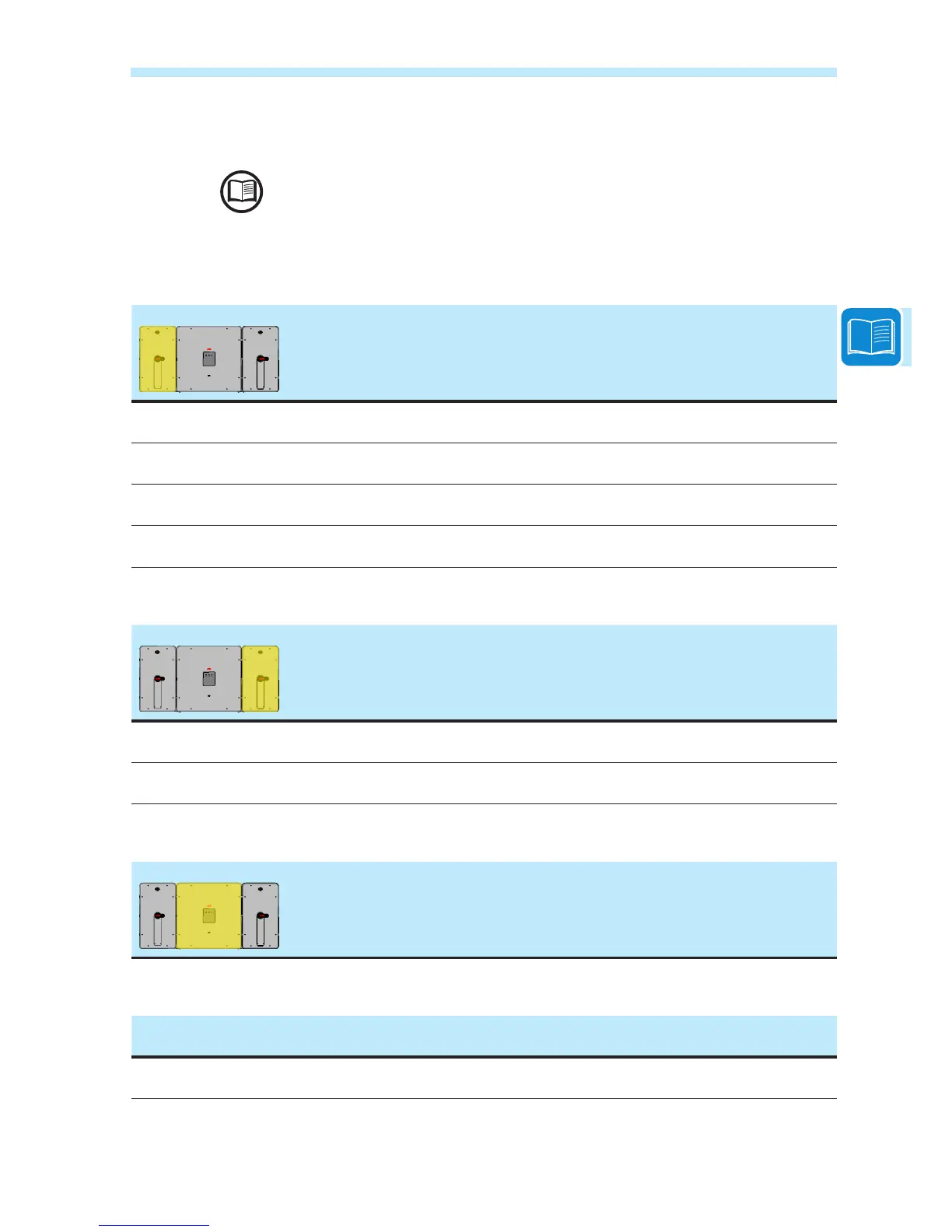

2 - Characteristics
Models and range of equipment
The choice of the inverter model must be made by a qualied technician
who knows about the installation conditions, the devices that will be installed
outside the inverter and possible integration with an existing system.
The power module is the same for all congurations, while the DC or AC
wiring box can be purchased depending on requirements.
“DC Wiring Box” Model Number
Description
DCWB-TRIO-50.0-TL-OUTD DC input connectors with screw terminal block
DCWB-S-TRIO-50.0-TL-OUTD
DC input connectors with screw terminal block + DC discon-
nect switch
DCWB-SX-TRIO-50.0-TL-OUTD/12 INPUTS
Input with 12 quick t connectors pairs + String fuses + DC
disconnect switch + DC overvoltage surge arresters type 2
DCWB-SX-TRIO-50.0-TL-OUTD/16 INPUTS
Input with 16 quick t connectors pairs + String fuses + DC
disconnect switch + DC overvoltage surge arresters type 2
DCWB-SY-TRIO-50.0-TL-OUTD
Input with 12 quick t connectors pairs + String fuses + DC
disconnect switch + DC overvoltage surge arresters type 1+2
“AC Wiring Box” Model Number
Description
ACWB-TRIO-50.0-TL-OUTD AC output connectors with screw terminal block
ACWB-S-TRIO-50.0-TL-OUTD
AC output connectors with screw terminal block + AC discon-
nect switch
ACWB-SX-TRIO-50.0-TL-OUTD
AC output connectors with screw terminal block + AC discon-
nect switch + AC overvoltage surge arresters type 2
“Power module” Model Number
Description
TRIO-50.0-TL-OUTD-POWER MODULE Inverter section / power module
“Bracket” Model Number Description
TRIO-50.0-BRACKET-VERTICAL Wall mounting bracket; 90 to 16 degrees from horizontal
TRIO-50.0-BRACKET-HORIZONTAL Horizontal mounting bracket; 15 to 0 degrees horizontal
