Mounting on a horizontal support

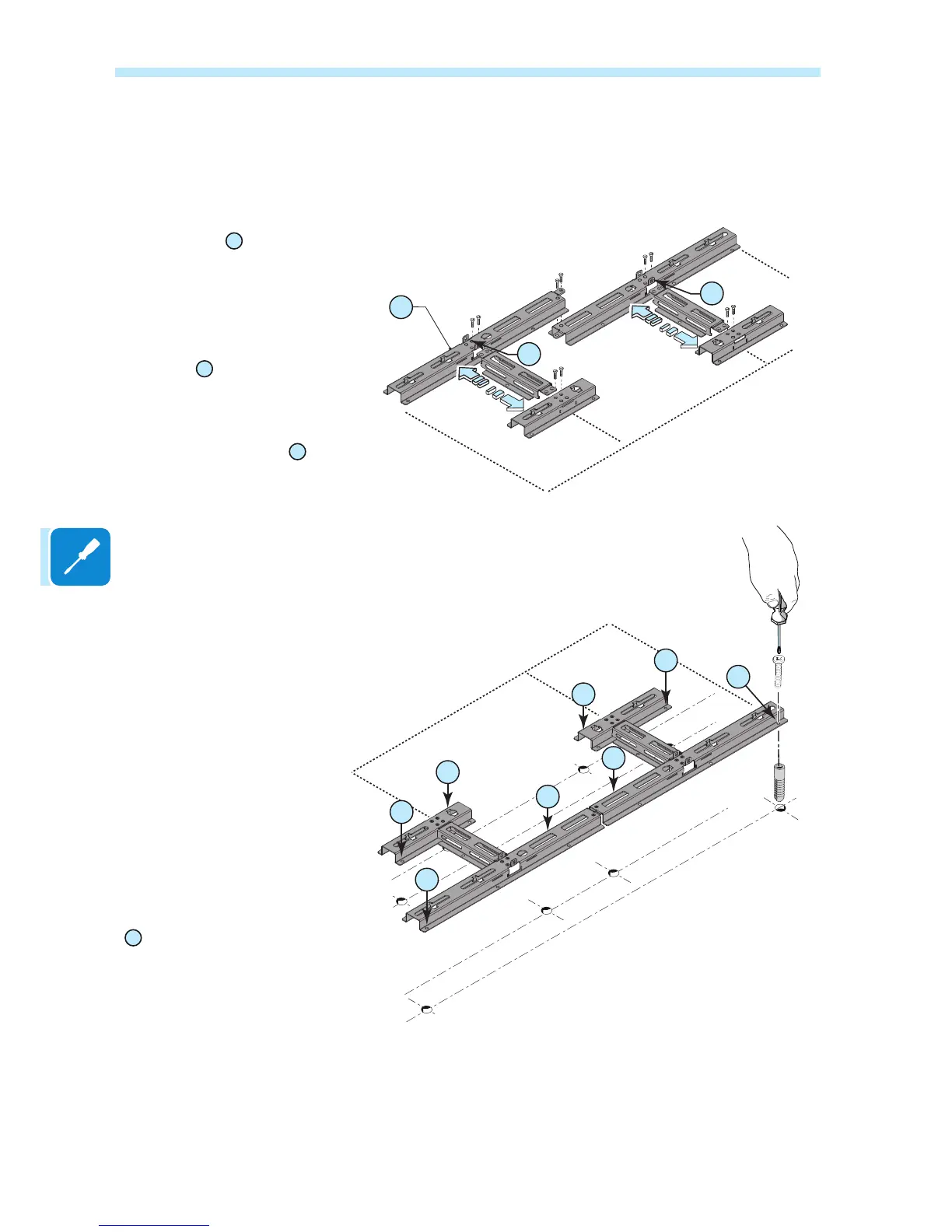

• Connect the 6 pieces of the hori-
zontal bracket
01
together with
the 10 screws (M5x14) shipped
with the bracket (refer to gure at
right).
• Insert the 2 cage nuts into the
their seats
B
on the bracket.
• Position the bracket
01
so
that it is perfectly at and
use it as a drilling template.
Consider the overall dimensions
of the power module along with
the 2 wiring boxes and check
that the bracket is level.
• It is the installer’s responsibility to
choose an appropriate number
and and distribution of attach-
ment points. The choice must be
based on the type of support and
the type of anchors to be used.
Attach the bracket to the support
with at least 8 attachment srews.
Depending on the type of anchor
chosen, drill the required 8 holes
A
to mount the bracket
• Fix the bracket to the surface and
ensure that it is not distorted in
shape.
01
A
A
A
A
A
A
A
A
B
B
