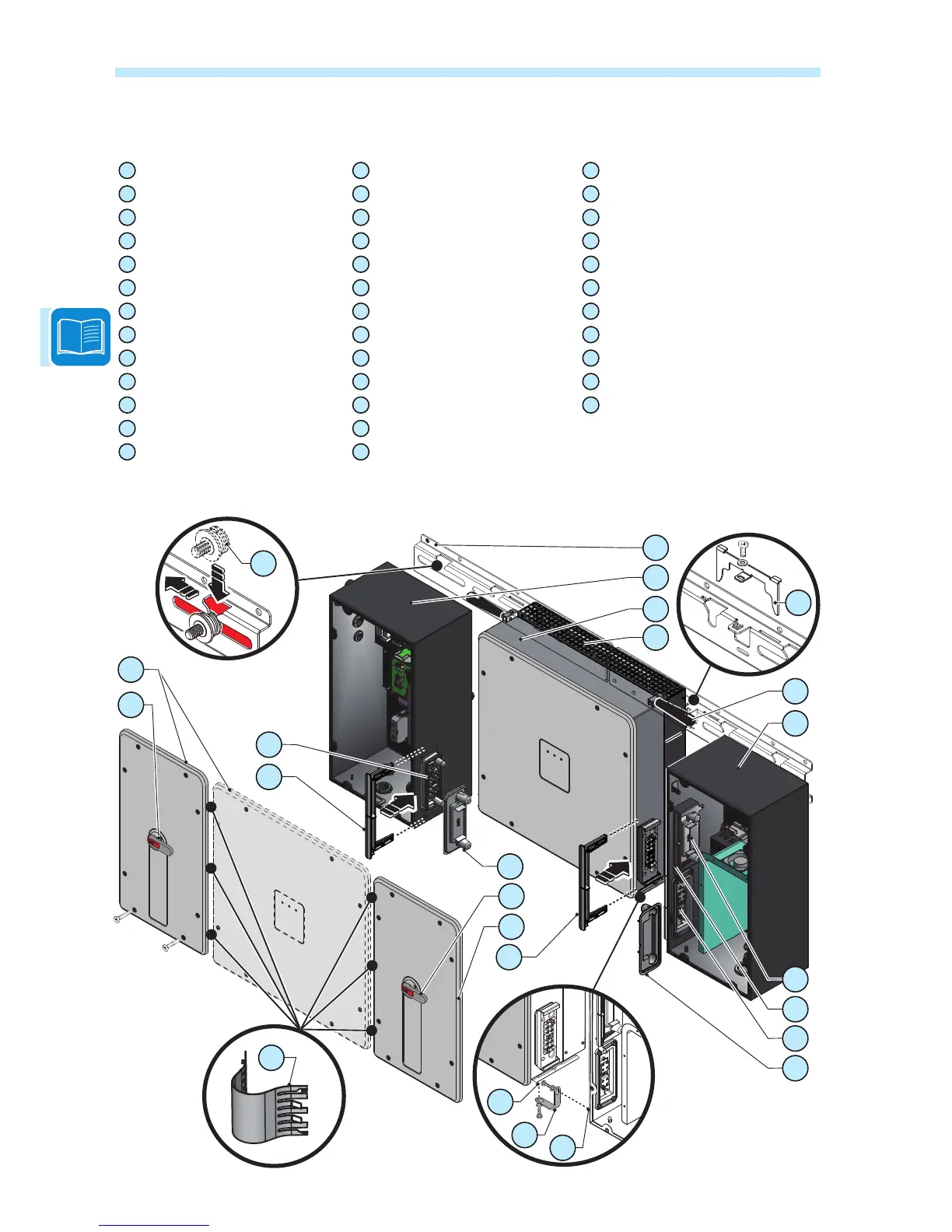

List of main reference components
01
assembly bracket
14
DC disconnect switch
28
top stops
02
DC wiring box
15
DC overvoltage surge arresters
29
conductor springs
03
power module
16
single AC cable gland PG42
30
single AC cable glands (not supplied)
04
interface connector cap
17
AC output terminal block
31
cap deposit box
05
AC wiring box
18
AC overvoltage surge arresters
32
ground connection brackets
06
handles
19
input connectors (MPPT)
33
WiFi antenna M20 cap
07
metal locking forks
20
ground protection terminal
34
PG 21 cable gland
08
front cover
21
anti-condensation valve
35
PG 16 cable gland
09
communication and control board
22
negative (-) side string fuses
36
AC disconnect switch
10
positive (+) side string fuses
23
interface connector
37
ground brackets tting points
11
DC cable glands
24
spacers
38
plastic locking forks
12
AC lter board
26
heat sink
13
DC input terminal block
27
rear pins
27
06
07
07
37
32
37
23
05
31
14
23
04
08
04
01
08
02
03
26
29
14
28
38
