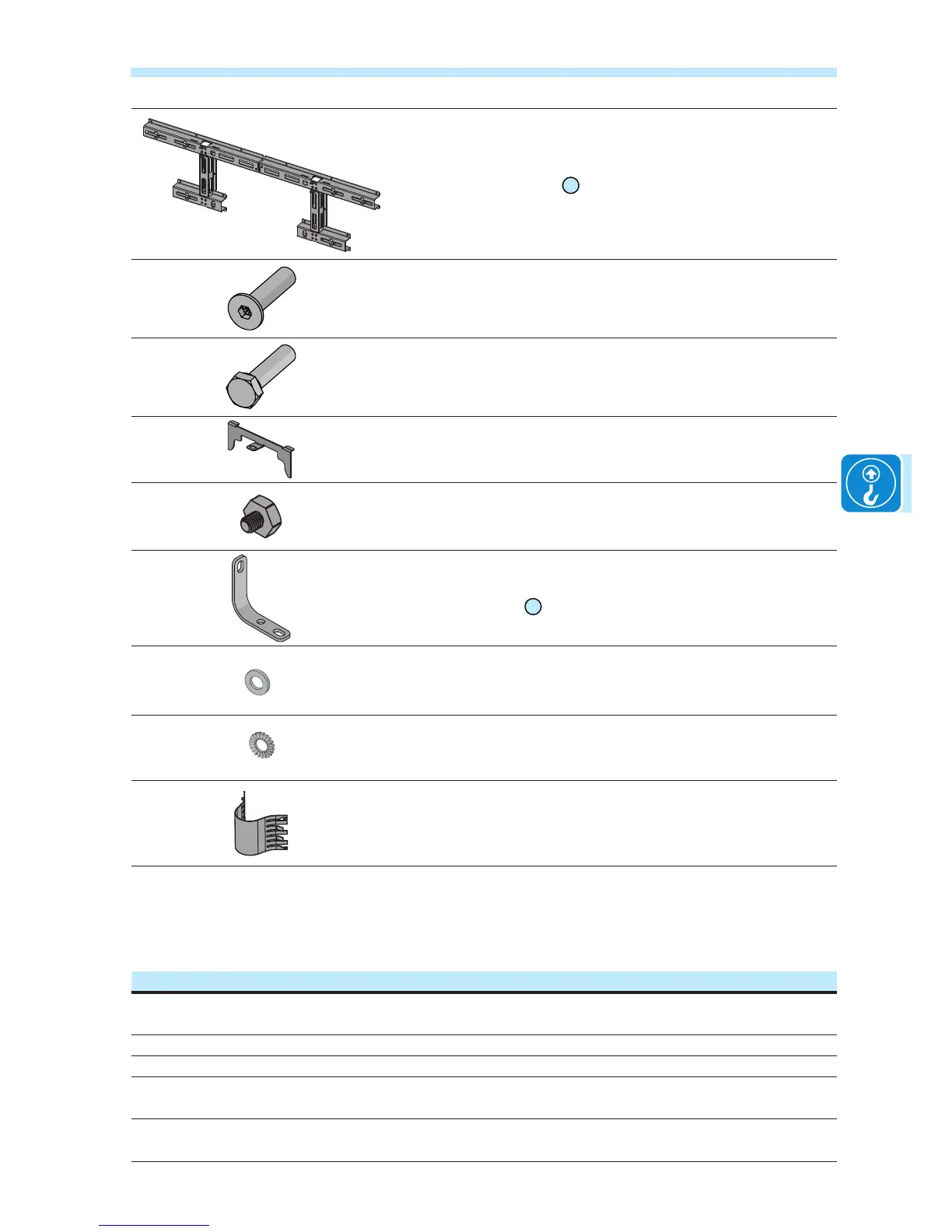

Horizontal support assembly
01
bracket.
0 1
Countersunk screws M5x14 for me-
chanically securing the half-brackets
4 10
Hex head screw M6x16 (4 for secu-
ring the ground connection brackets
and 2 for the cage nuts)
6 6
Forks for securing the power module
to the wiring boxes
2 2
Rear spacers for wall alignment (ver-
tical installation)
4 0
Wiring box/power module ground
connection brackets
32
2 2
Flat washer M6 (4 for securing the
ground connection brackets and 2 for
the cage nuts)
6 6
Toothed washer M6 for securing the
ground connection brackets
4 4
Conductor springs 6 6
Kit of recommended spare parts
A list of spare parts that are compatible with the TRIO inverter available
(at the ABB warehouse) is given below:
Code Description Quantity
TRIO HANDLING KIT
Kit of handles and eyebolts for lifting the power mo-
dule part
4 handles
2 eyebolts
KIT 10 FUSES 12A Kit of 12A fuses (gPV - 1000Vdc) (only -SX/-SY) 10
KIT 10 FUSES 15A Kit of 15A fuses (gPV - 1000Vdc) (only -SX/-SY) 10
KIT SURGE DC SIDE TRIO
Kit of spare cartridges for DC surge arresters
type 2 for wiring box -SX
2 (Dehn PN. 952051)
1 (Dehn PN. 952041)
KIT SURGE AC SIDE TRIO
Kit of spare cartridges for AC surge arresters
type 2 for wiring box -SX
3 (Dehn PN. 952010)
1 (Dehn PN. 952050)
