ABB TRIO-50.0-TL-OUTD

- 94 -
000539CG
7 - Operation
Preliminary operations before commissioning
In order to commission the inverter it is necessary to carry out certain
preliminary operations to ensure the inverter operates properly.

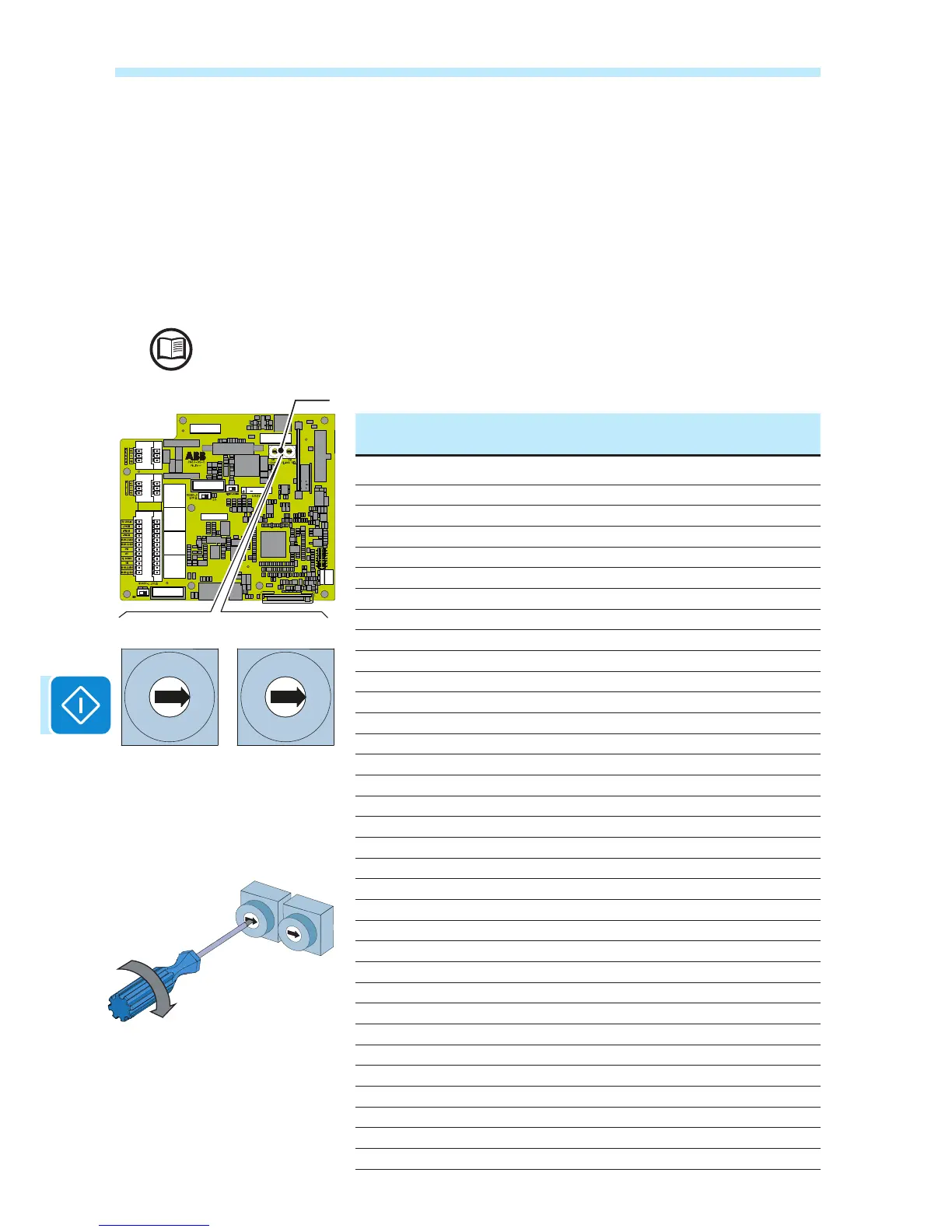

Setting the national grid standard
According to the country in which the inverter is installed there are
different grid parameters (dictated by the distributor).
It is essential that you set the grid standard for the country of installation before commissioning,
and the installer must be aware of the correct standard to be set.
Switch Country Grid Standard
1 2
0 0 NOT ASSIGNED
0 1 GERMANY VDE 0126 @ 400V
0 6 SPAIN RD413 @ 400V
0 8 UK - G59 @ 400V
0 9 IRELAND @ 400V
0 A AUSTRALIA @ 400V
0 B ISRAEL @ 400V
0 C GERMANY - BDEW @ 400V
0 E NETHERLANDS @ 400V
0 F GREECE @ 400V
1 0 PORTUGAL @ 400V
1 1 CORSICA @ 400V
1 2 HUNGARY @ 400V
1 3 CHINA LV @ 400V
1 4 KOREA @ 380V
1 5 TAIWAN @ 380V
1 6 CHECA Republic @ 400V
1 7 GERMANY-VDE AR-N-4105@400V
1 8 CEI-021 @ 400V EXTERNAL Prot.
1 B SOUTH AFRICA @ 400V
1 C SPAGIN RD 1565 @ 400V
1 D BELG C10-11 100% @ 400V
1 F BRAZIL @ 380V
2 0 TURKEY LV @ 400V
2 1 ROMANIA @400V
2 2 SLOVENIA @400V
2 3 TURKEY HV @ 400V
2 4 CEI-016 @ 400V
2 5 EN50438 generic @ 400V
2 8 FRANCE LL 2014 @ 400V
2 9 THAILAND MEA @ 400V
2 A INDIA @ 400V
2 D THAILAND PEA @ 380V
2 E SINGAPORE @ 400V
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
1
2
ON
3 2 1
OFF
S6
ON
3 2 1
OFF
S6
R46
R49
3 2 1
J1
J18
J7 J5
J8
X5
2
2
1
2
1
18
17
1
18
17
J6
J15
J22
J9
J10 J11 J12
J16
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
a05
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
1
2
S8
S9
