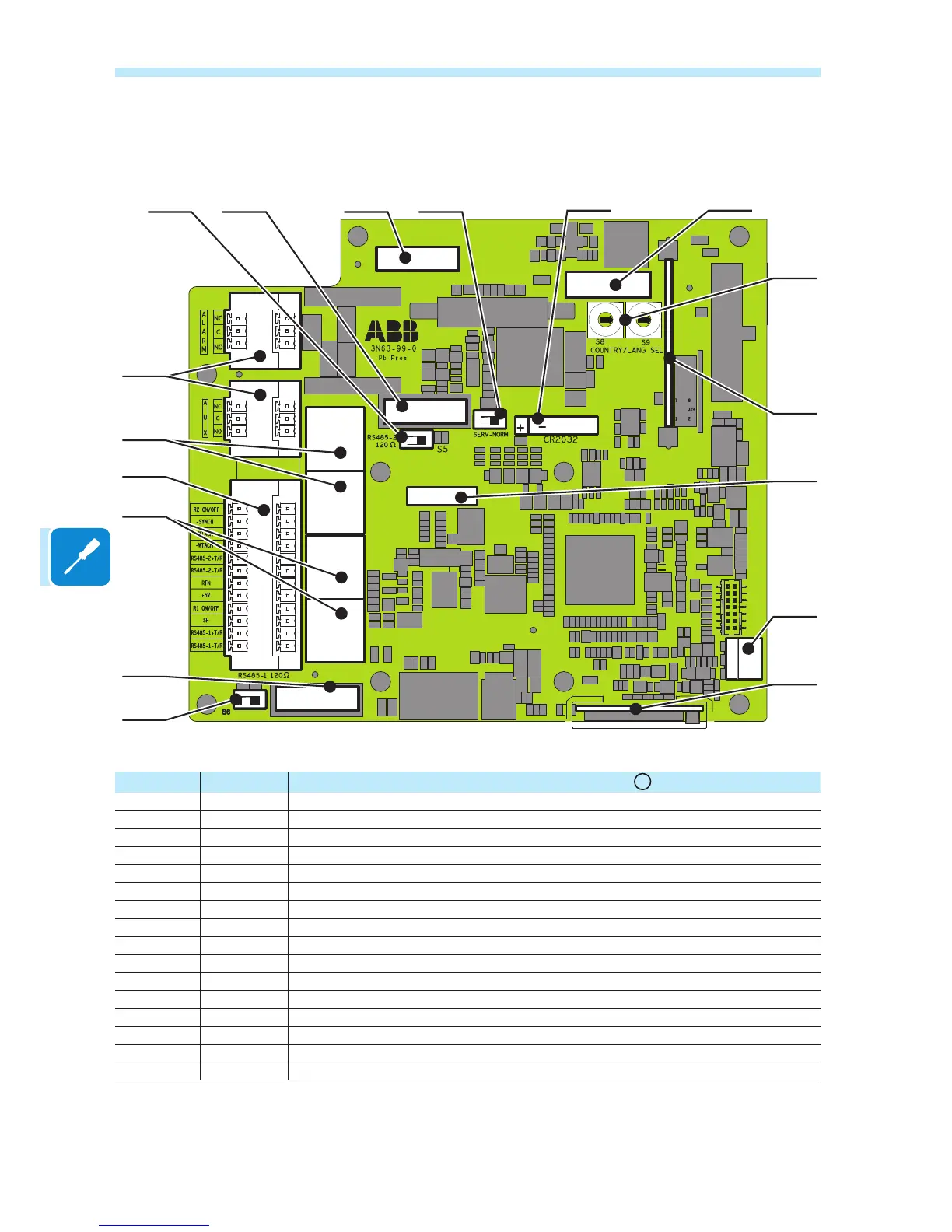

Communication and control board
Code Reference
Description of the communication and control board
09
J15 a02 Connector for expansion board installation (optionals)
A5 a04 SD card housing
S8 - S9 a05 Rotary switches for setting the country standard
J5 - J6 a09 Connection to the multifunction relay (ALARM and AUX)
J7 a11 Connection of the RS485 (PC) lines, of the remote ON/OFF and 5V auxiliary lines
S6 a12 RS485 line (1) termination resistance selector switch
S5 a13 RS485 line (2) termination resistance selector switch
J9 - J10 a14 RS485 (1) line connection on RJ45 connector
J8 a15 RS485 (1) communication card housing
J11 - J12 a16 RS485 (2) line connection on RJ45 connector
J16 a17 RS485 (2) communication card housing
S7 a18 Switch to set the inverter to normal or service mode
J22 a19 Inverter data memory card housing
X5 a20 Battery housing
J1 a22 Grounding kit housing (optional kit)
J18 a23 Connector for PMU card installation (optional)
ON
3
2
1
OFF
S6
ON
3
2
1
OFF
S6
R46
R49
3
2
1
J1
J18
J7 J5
J8
X5
2
2
1
2
1
18
17
1
18
17
J6
J15
J22
J9
J10 J11 J12
J16
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
a04
a22
a23
a21
a05
a19a20
a14
a16
a09
a17a13 a02 a18
a12
a15
a11
