Mounting with a support bracket
Mounting on a vertical support

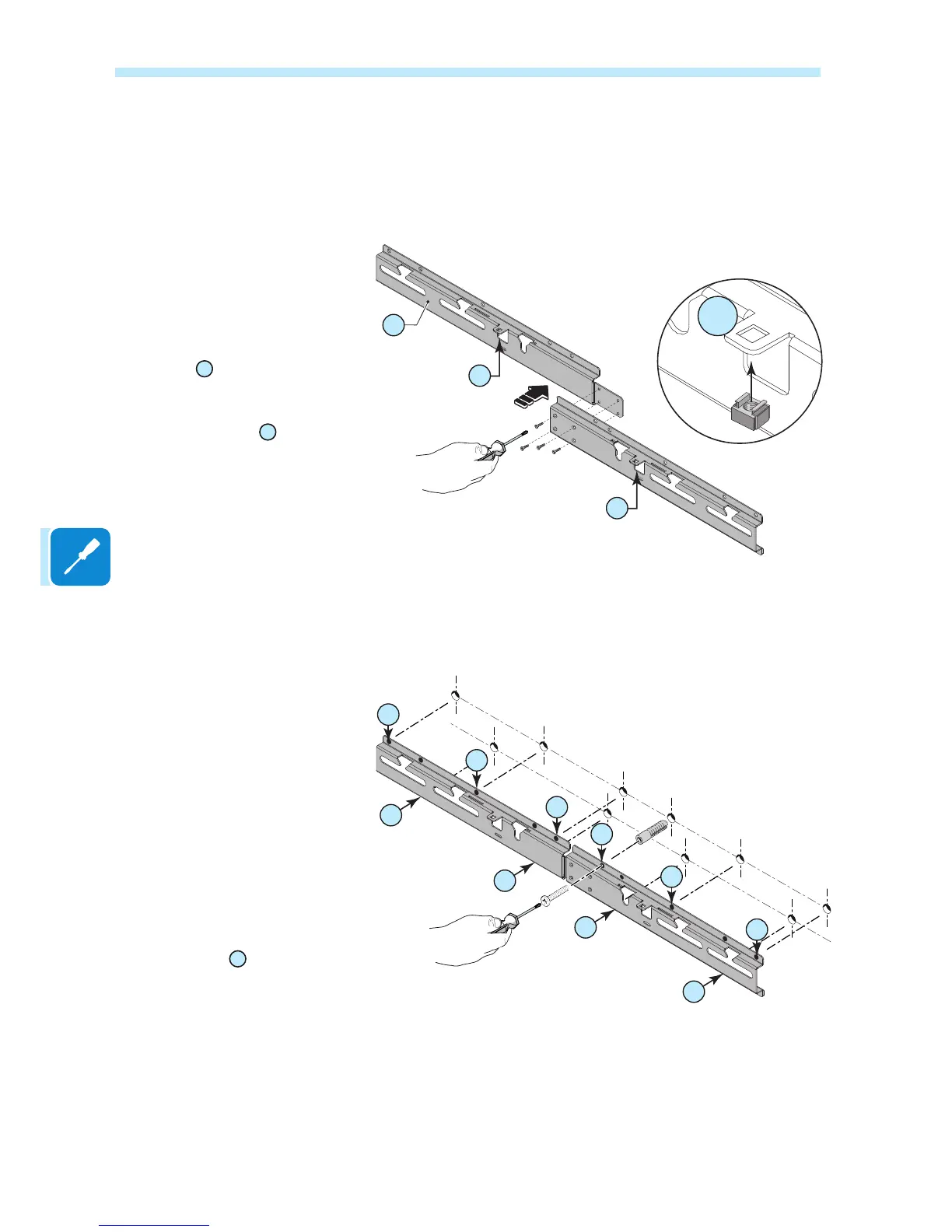

• Use 4 of the countersunk M5x14
screws to connect the two bra-
cket pieces together.
• Insert the 2 cage nuts into the
their seats
B
on the bracket.
• Position the bracket
01
perfectly
level on the vertical support
and use it as drilling template.
Consider the overall dimensions
of the power module along with
the 2 wiring boxes.
• It is the installer’s responsibi-
lity to choose an appropriate
number and and distribution of
attachment points. The choi-
ce must be based on the type
of support (wall, frame or other
support), the type of anchors to
be used, and their ability to sup-
port 4 times the inverter’s weight
(4x95Kg=380Kg for all models).
Attach the bracket to the wall with
at least 10 attachment srews.
Depending on the type of anchor
chosen, drill the required 10 ho-
les (minimum)
A
to mount the
bracket. Put at least four srews in
the upper side and at least four in
the lower side.
• Fix the bracket to the support.
01
A
A
A
A
A
A
A
A
A
A
B
B
