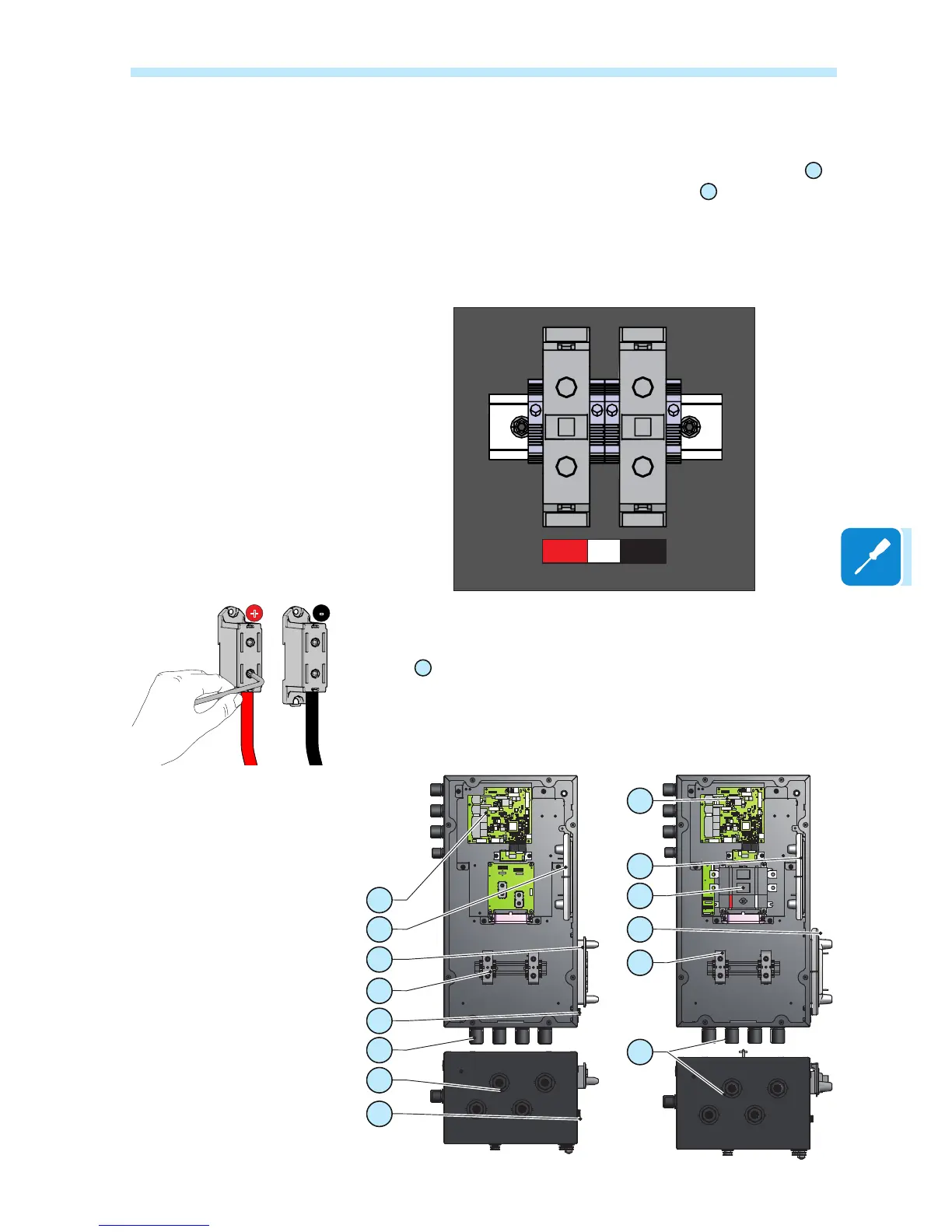

Connection of inputs on the Standard and -S models
For these two models connection with the DC input terminal board
13
is
made by inserting the cables into the cable glands
11
.
The maximum cable diameter accommodated by the cable gland is between
13 to 21 mm, while each terminal clamp on the terminal block accepts a
cable with a maximum cross-section of 95 mm
2
(copper or aluminum).
+IN -IN
Unscrew the cable gland, remove the cover, feed a cable of suitable
cross-section and connect it to the terminals on the DC input terminal
block.
13
.
Once connection to the terminal block has been completed, retighten the
cable gland rmly and check seal.
+ -
Standard (DC) -S (DC)
14
31
09
13
23
11
09
31
23
13
21
11
11
21
