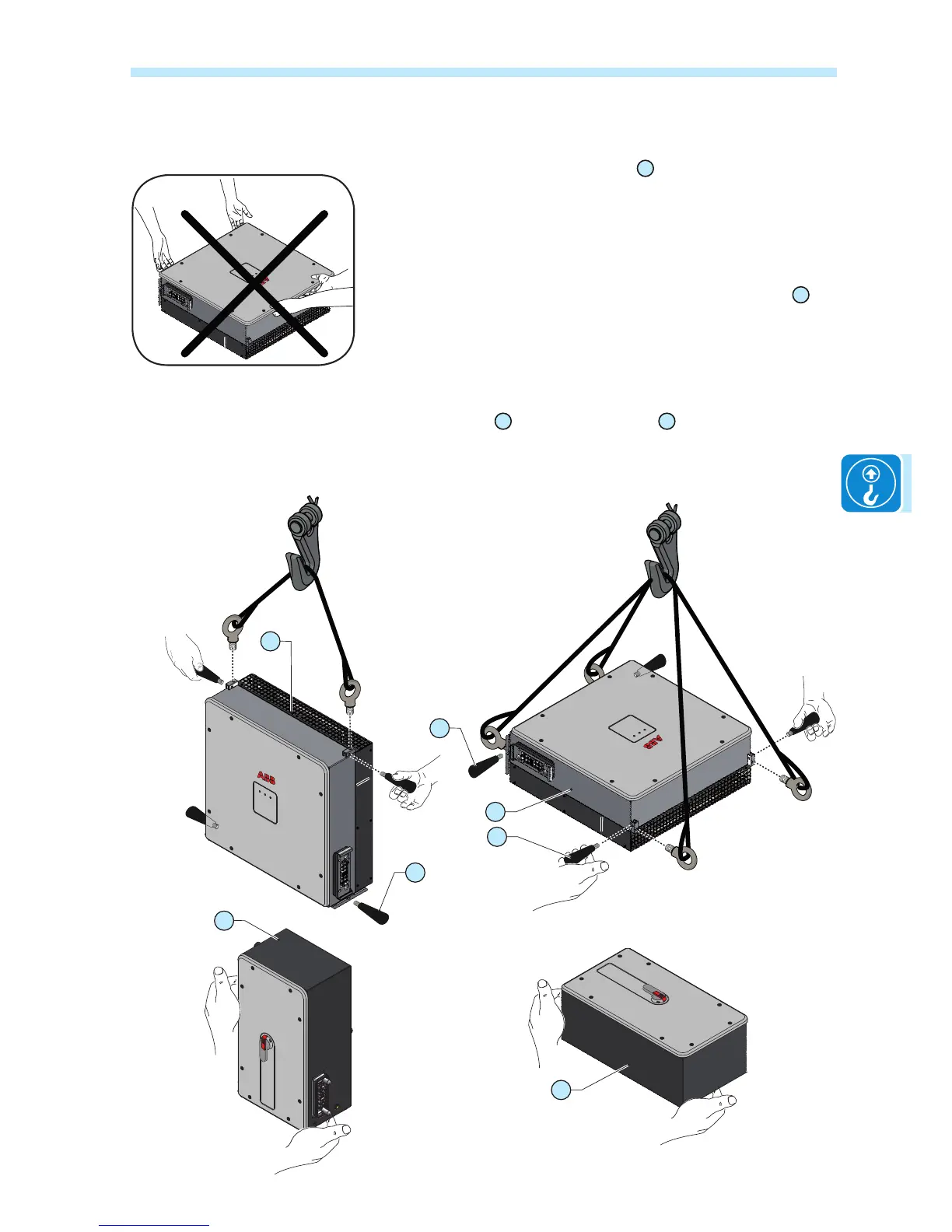

Types of lifting
Because of its weight, the power module
03
must be lifted by two people
or alternatively using suitable lifting equipment.
it is preferable not to lift the inverter from the cover. If it should be neces-
sary, respect the lifting points at the screws (shown in the gure).
In order to make the power module easier to manage, 4 handles
06
can
be tted into the designated holes depending on requirements (4 side
holes; 2 top holes; 2 bottom holes).
If lifting with ropes, the eyebolts can be tted to the holes which are useful
for lifting in a vertical position, while if lifting in a horizontal position, it is
preferable to use 4 anchoring points at the operator's discretion.
The DC wiring box
02
and the AC wiring box
05
can be lifted manually as
they are of a more limited weight.
The handles and eyebolts can be ordered separately.
M12
02
03
03
06
06
05
06
