4 - Lifting and transport
Storage

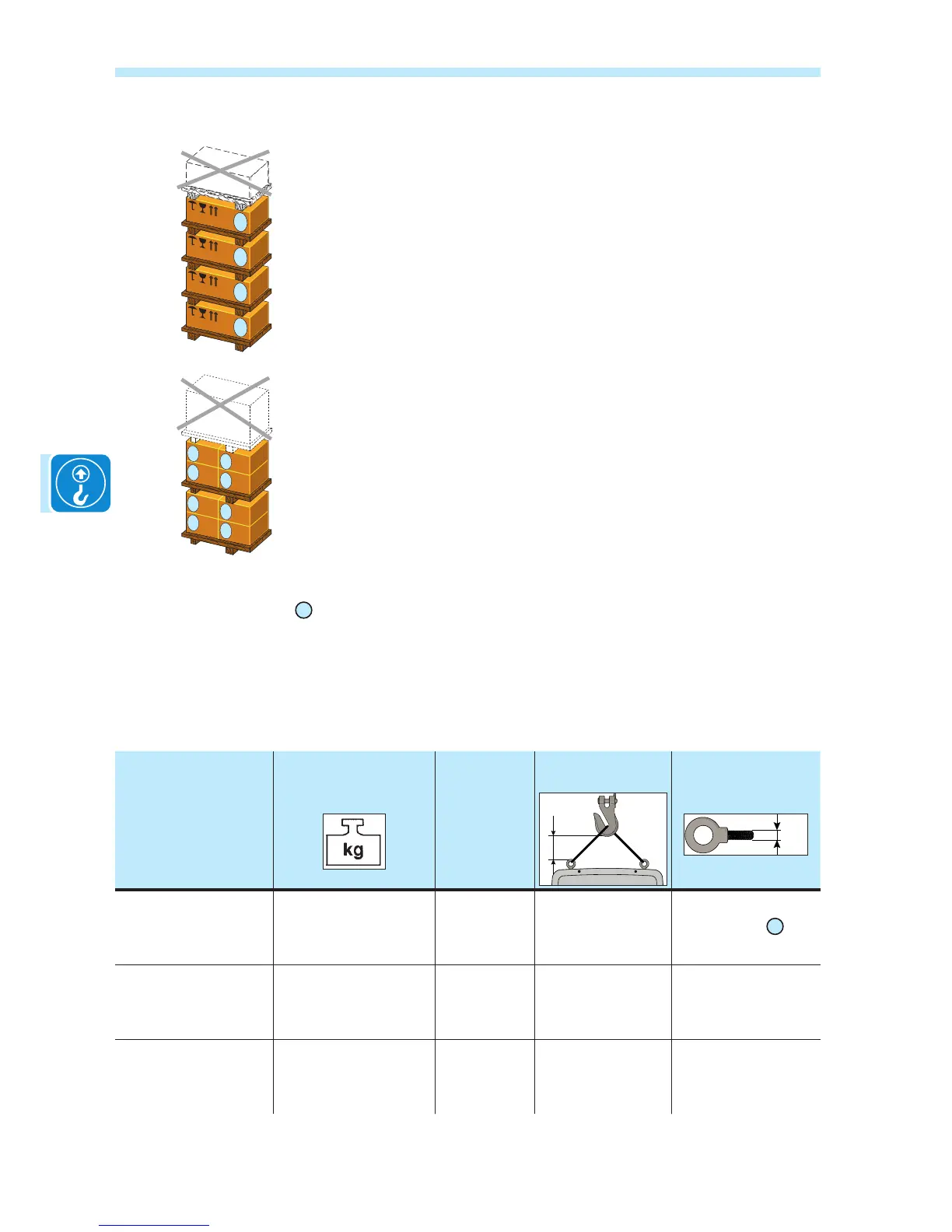

If the package with the power module part is stored correctly, it can
withstand a maximum load of 4 stacked devices (divided into 4 pallets).
If the package with the wiring box is stored correctly, it can withstand a
maximum load of 8 stacked devices (divided into 2 pallets).
DO NOT stack with equipment or products other than those indicated.
Assembly
01
brackets and/or accessory components are in separate packages and can be
piled separately
Weight of the modules of the equipment
Table: Weights Weight
(kg)
Lifting points
(n°#)
Min. height of cables
(mm)
H
Holes or Eyebolts
UNI2947
ø M
(mm)
Power module 66 kg 4 1.200
M 12
kit of handles
06
and
eyebolts (to be ordered)
Wiring box DC
Standard / -S: 13 kg
-SX / -SY: 14 kg
- -
-
Wiring box AC
Standard / -S: 14 kg
-SX: 15 kg
- - -
4
4
4
4
1
3
2
4
5
7
6
8
