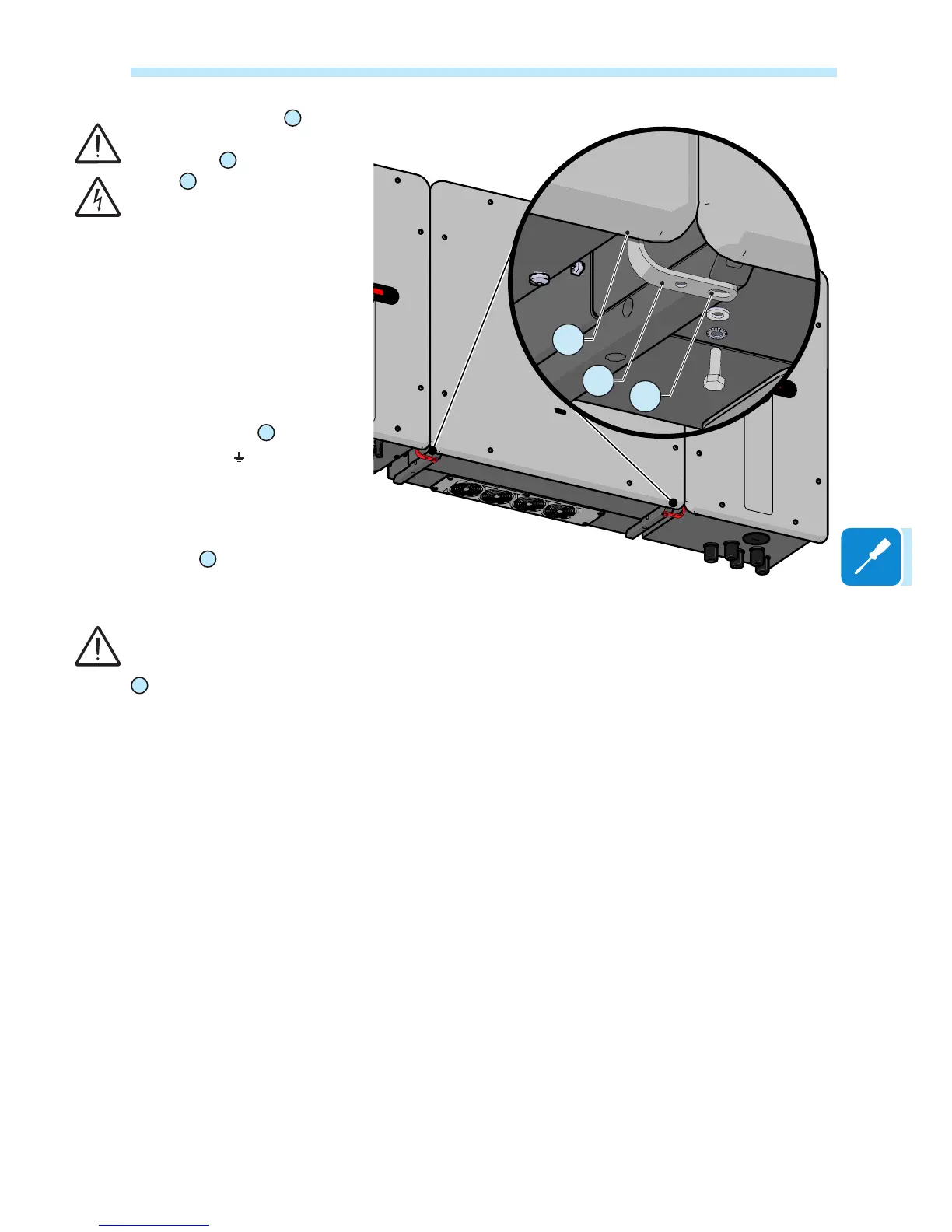

• Before tting the covers
08
, install
(mandatory) the ground connec-
tion brackets
32
into the fastening
points
37
at the bottom between
the power module and the 2 wiring
boxes.
Follow the order of installation
set out below:
- earth connection bracket
- at washer
- toothed washer
- xing screw with hexagonal
head.
Tighten the 2 xing screws with
hexagonal heads on the earth
connection points
37
(marked
by the symbol ) located on
the power module. Then also
tighten the 2 xing screws (one
per wiring box) that permanently
secure the 2 ground connection
brackets
32
.
The ground connection between
the 3 parts which compose the in-
verter is ensured by the brackets
32
.
• Proceed with the wiring and con-
nections depending on the mo-
del.
