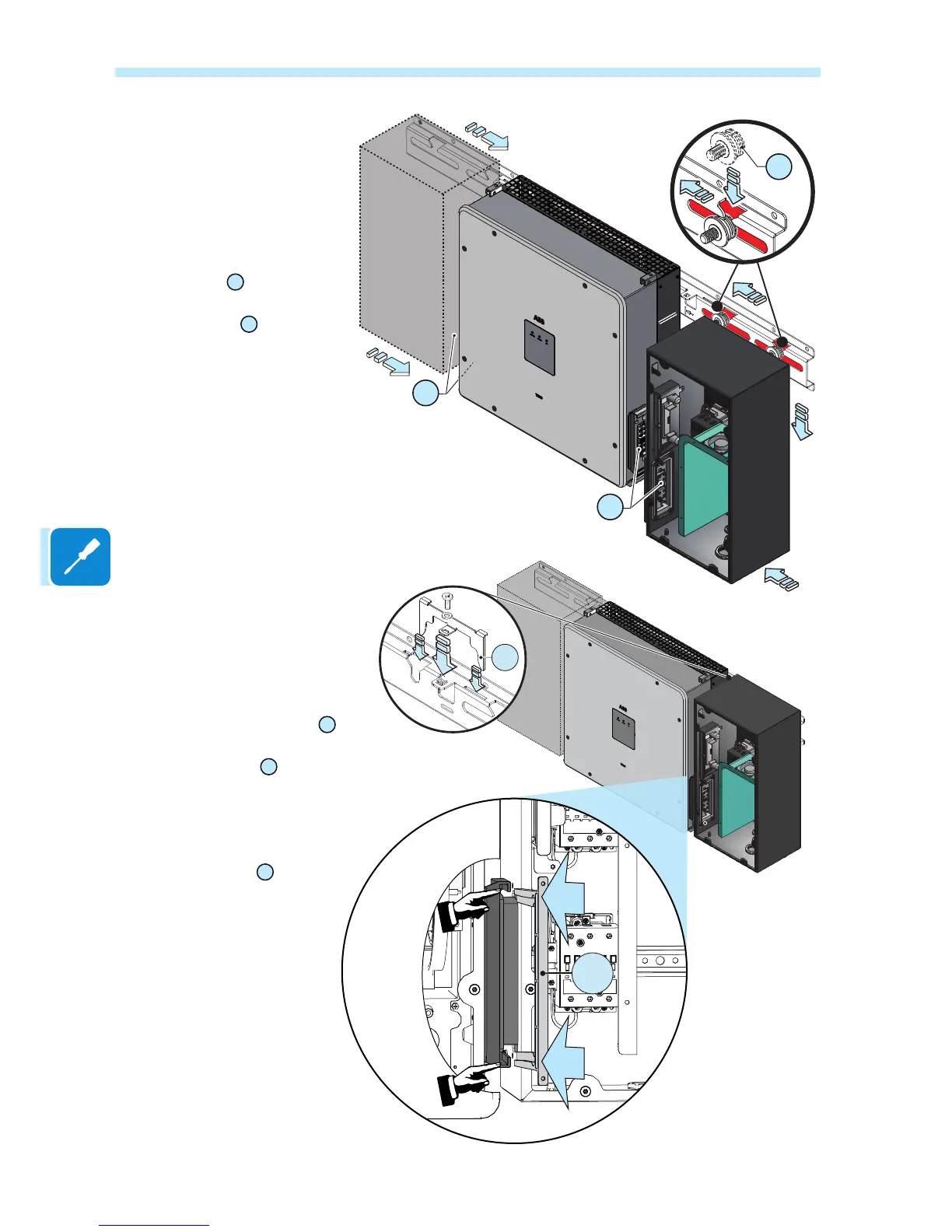

• Couple the wiring boxes to the
power module one at a time,
making them slide horizontally
on the bracket
01
and ensuring
that the quick t connectors are
inserted correctly
23
.
• Once this has been completed,
insert the metal locking forks
07
into the designated slots of the
quick-t connectors
23
in order
to secure the wiring boxes to the
power module.
• Install the top stops
28
, inserting
them into the slots and locking the
screws (hex screw M6x16) on the
cage nuts which were previously
tted onto the bracket.
27
23
23
28
07
