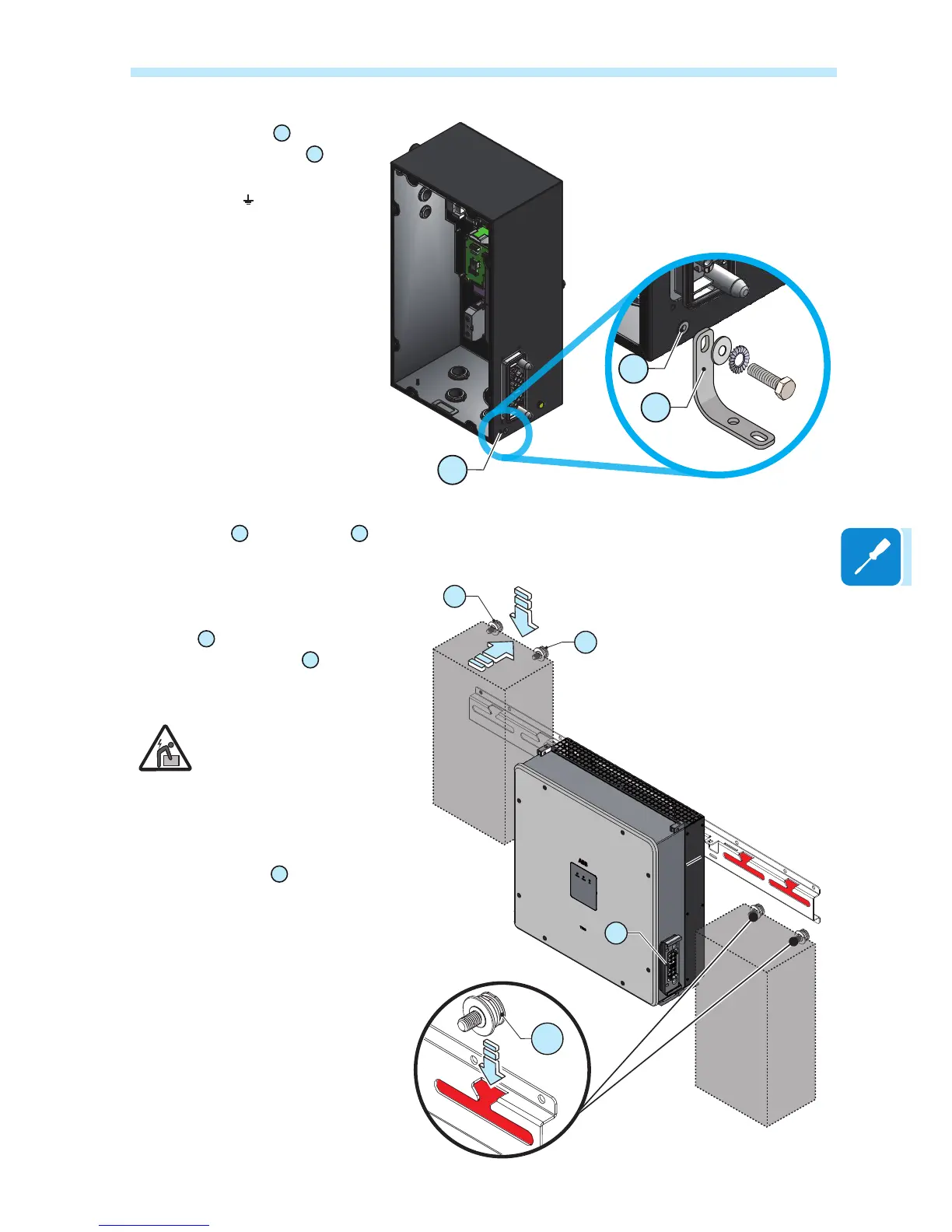

• Install the 2 brackets acting as
an earth connection
32
on the
provided fastening points
37
(one
for each wiring box) and marked
with the symbol . On the gure is
shown how to install the brackets
on the wiring box.
The bracket is not symmetrical and
so it must be xed on the side with
the holes facing down.
Follow the order of installation set
out below:
- earth connection bracket
- at washer
- toothed washer
- xing screw with hexagonal head.
During this phase loosely position
the screw without tightening it.
• Insert 1 spacer
24
into the rear pins
27
at the bottom of each wiring box.
• Mount the wiring boxes onto the
bracket
01
one at a time inser-
ting the two rear pins
27
at the
top into the slots on the bracket.
Risk of injury due to
the heavy weight of
the equipment.
In this condition, the wiring boxes
will be detached from the power
module so not to interfere with the
quick-t connectors
23
27
