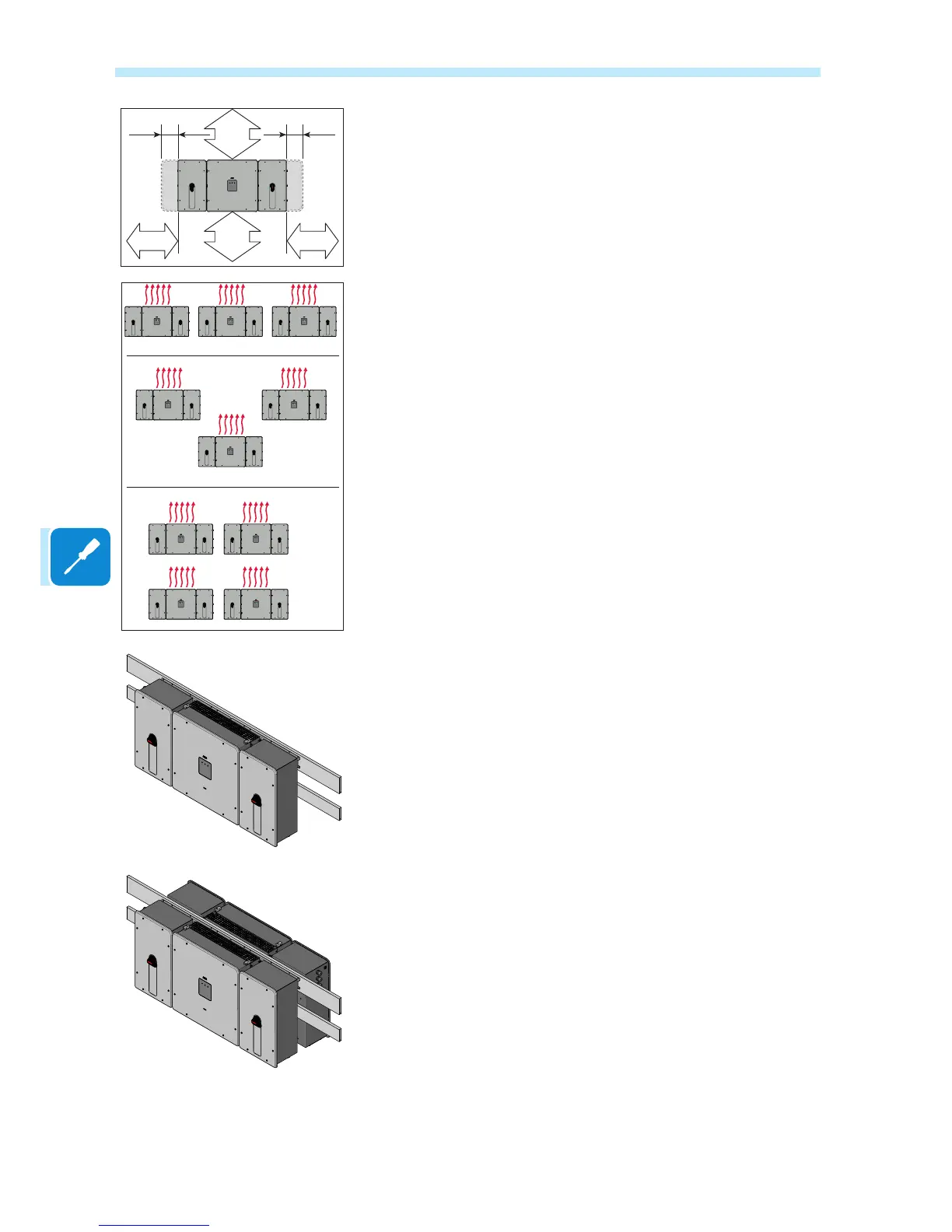

• Respect the minimum distances from objects around the inverter that
could prevent the inverter installation and restrict or block the air ow.
The wiring boxes are connected to the inverter using quick t connec-
tors which require sufcient space in order for them to be connected
and disconnected easily
• Provide sufcient working space in front of the inverter that allows to
make connections on the wiring box.
• In case of multiple installation position the inverters side by side keeping
the minimum distances (measured from the outer edge of the inverter)
for each inverter.
• If the space available does not allow this arrangement, position the in-
verters in a staggered arrangement as shown in the gure so that heat
dissipation is not affected by other inverters below.
• The vertical installation is also permitted on a structure which must be
composed of a support for the attachment of the bracket and one for the
support of the rear pins.
• The vertical installation of two inverters positioned back to back is also
permitted on a structure which must be composed of a support for the
attachment of the brackets and one for the support of the rear pins.
Please refer to the warranty terms and conditions to evaluate any possible warranty exclu-
sions due to improper installation.
