ABB Welcome IP - Page 140

Case studies
System Manual
│
140
Unit (Switch without PoE):
The switch is not PoE-capable in a system or the capacity is too low. That is why an additional
power supply is required for the devices.
24 V DC

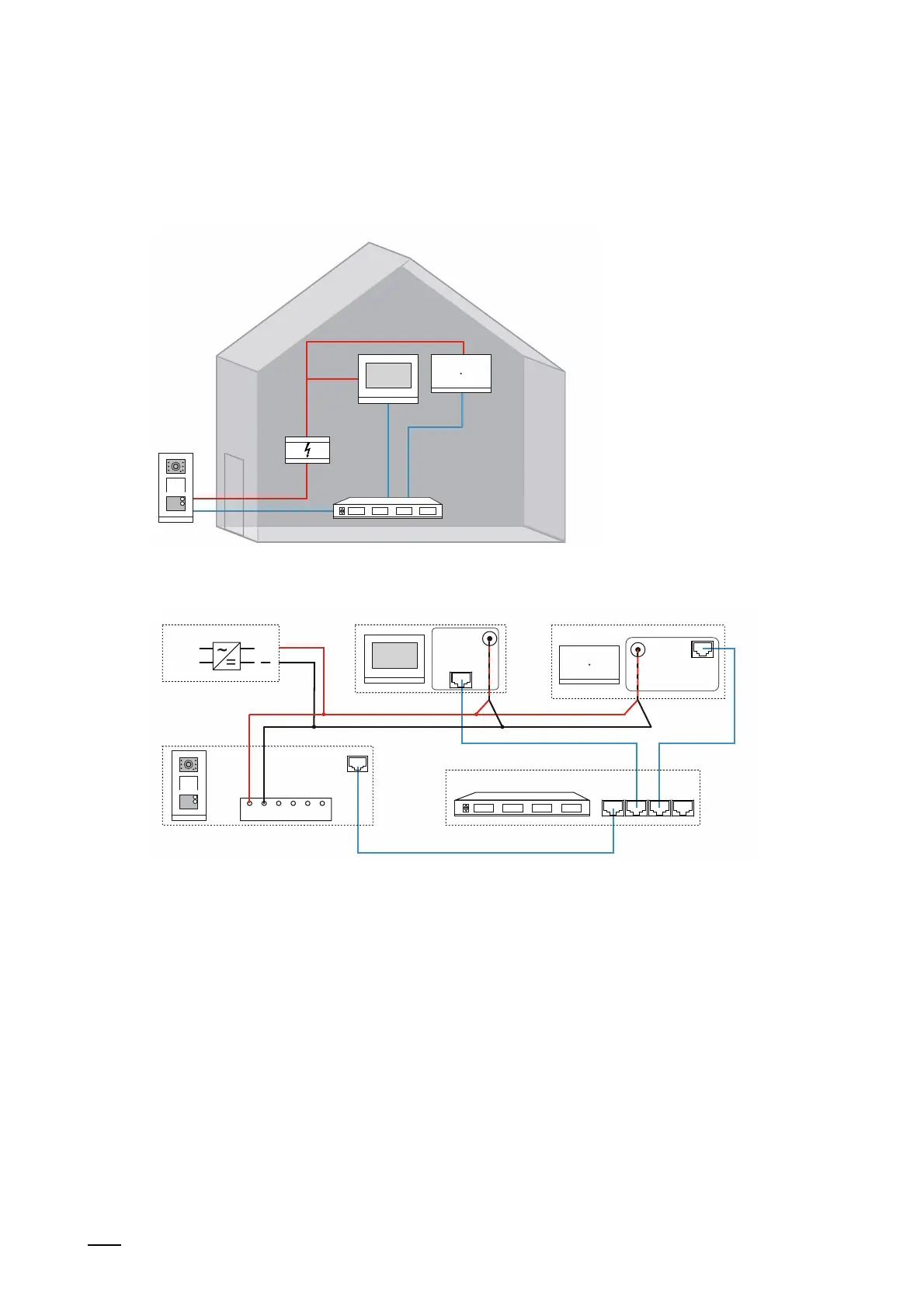

Fig. 123: Overview: Unit (Switch without PoE)
LAN LAN LAN LAN
DC+/-
LAN 1 (P oE)
DC+/- LAN (PoE)
GND DC+ LOCK COM NC NO
LAN (P oE)
N
L
100 - 240 V
+
24 V
Fig. 124: Connection: Unit (Switch without PoE)
