8.5.7 VCA Control Display
This function is only available in the thermal channel. This setting page configures the font size and font
colour of temperature overlays for the different pre-alarm and alarm thresholds. The colour of the permanent
overlay without alarm threshold can also be set.
8.6 Events

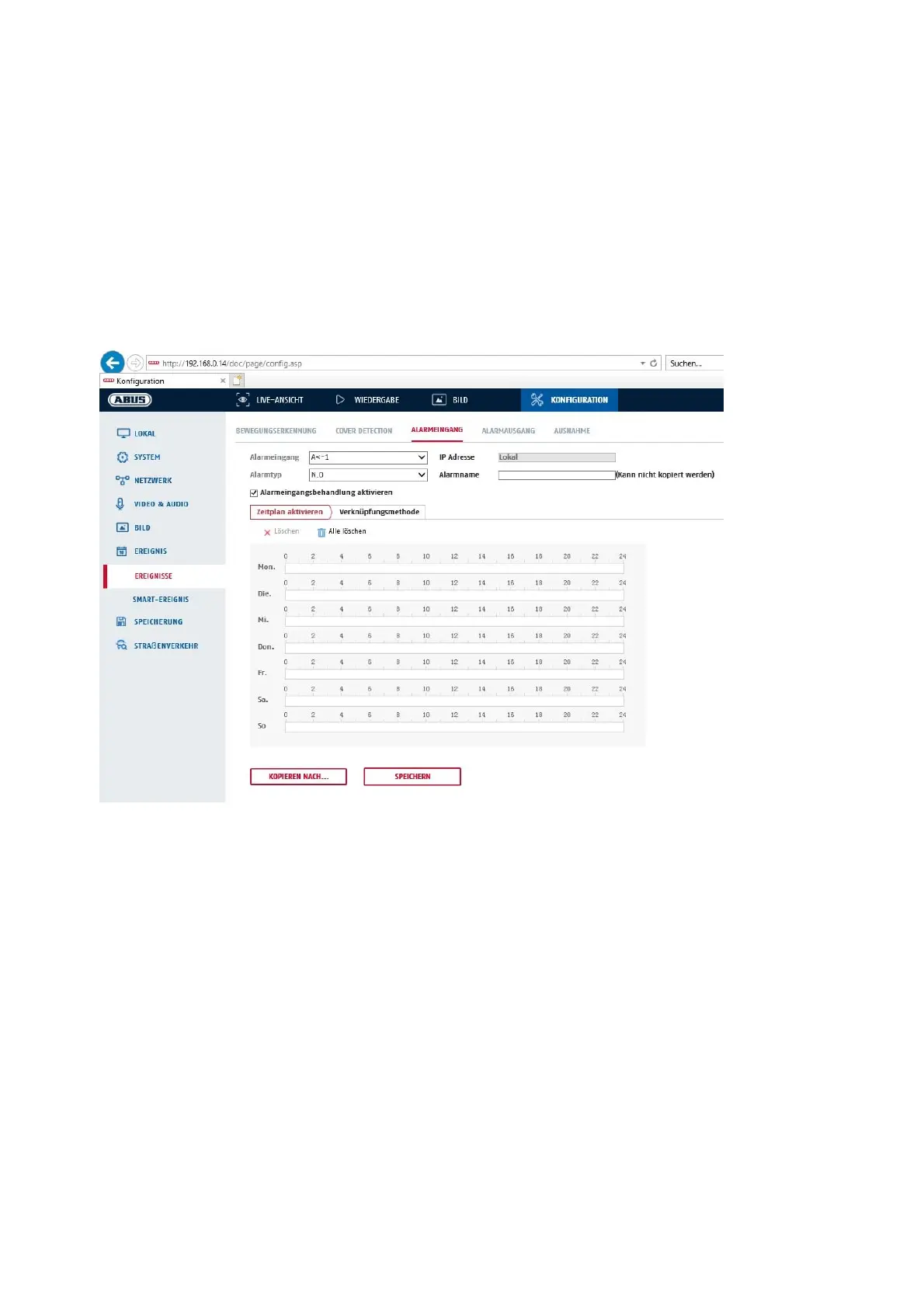

8.6.1 Alarm input
Under this menu item you can configure the alarm input of the camera
Alarm input no.
Select the alarm input that you want to configure.
Alarm name
Here you can assign a name for the respective alarm input. Please do not use the alarm input no. or any
special characters.
Alarm type
Select the alarm type here. You have the choice between "NO" (Normally open) or "NC" (Normally closed).
Timetable
To store a schedule, click on "Activate schedule". Determine here on which days of the week and at which
times the alarm input should be active.
The period is selected by marking it with the left mouse button. By clicking on an already marked period, the
details can also be set by keyboard or deleted again.
To copy the time selection to other weekdays, move the mouse pointer behind the bar of the weekday already
set and use the "Copy to ..." function. function.
