8
AcuRev 1300
Dimensions:

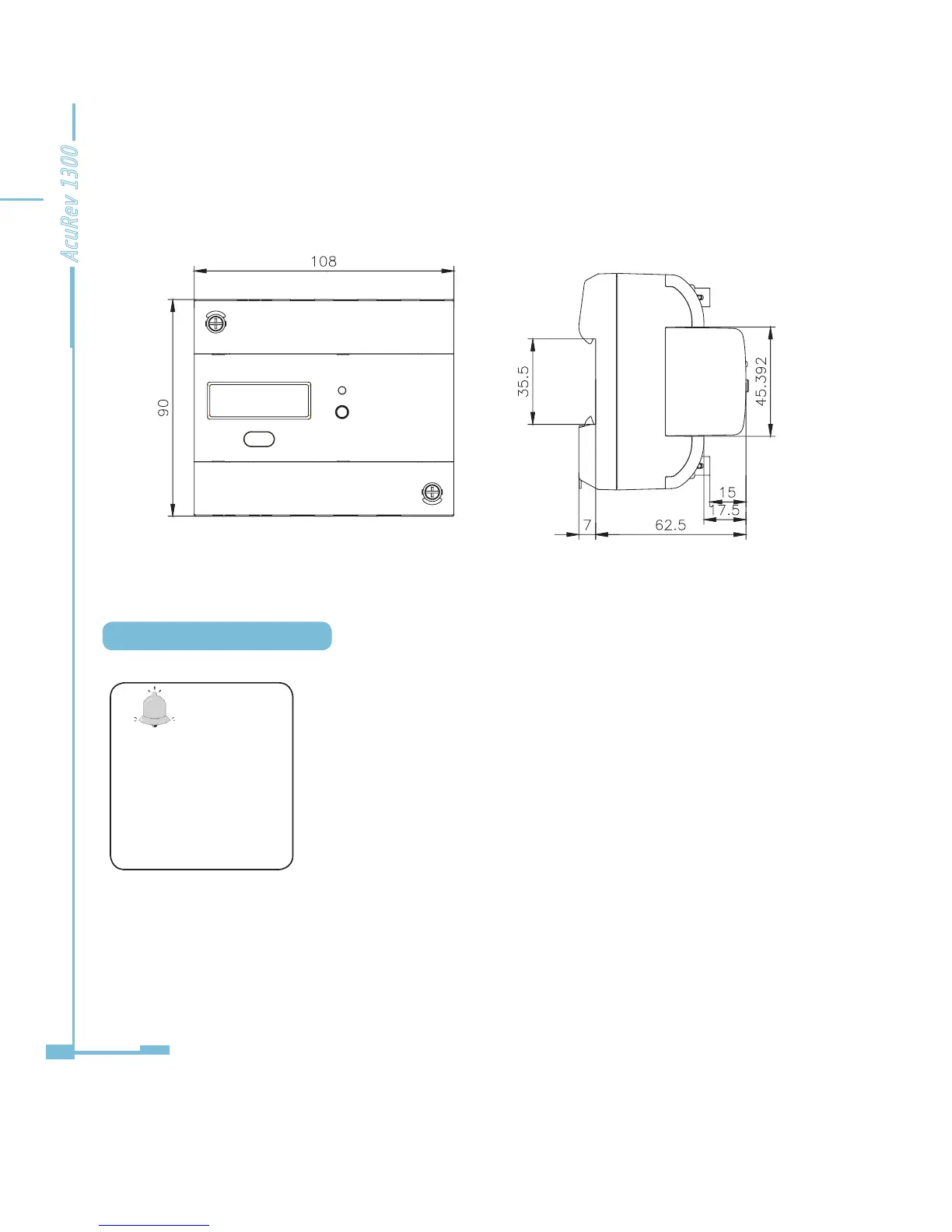

Figure 2-2 Meter base dimensions
Environmental
Before installation, please check the environment,
temperature and humidity to ensure theAcuRev 1300 series meter
is being placed where it will not be damaged.
1. Temperature
AcuRev 1300 operating temperature is -25~70°C. Exceeding this
temperature range will cause damage to the meter. Please note
that it can influence the meter life negatively if themeter operates in extremely high or
extremely low temperatures. AcuRev 1300 storage temperature range is -40~85°C.
Front View
Side View
Unit: mm
2.2 Installation Methods
Temperature and
humidity of the
environment must accord
with the requirement of
acurev 1300, Otherwise
it may cause the meter
damaged.
Note
