24
AcuRev 1300
In this chapter, you would see some details about human-computer interaction,
including how to use the key to browse demanded information, and how to set the
parameters correctly.
Chapter 2.1 shows the dimensions of Display Module. It consists of one LCD screen
and one key. To make the description clearly, all of the chars and number segments are
lighten in the picture below, but when we use it , they would not appear in one page.

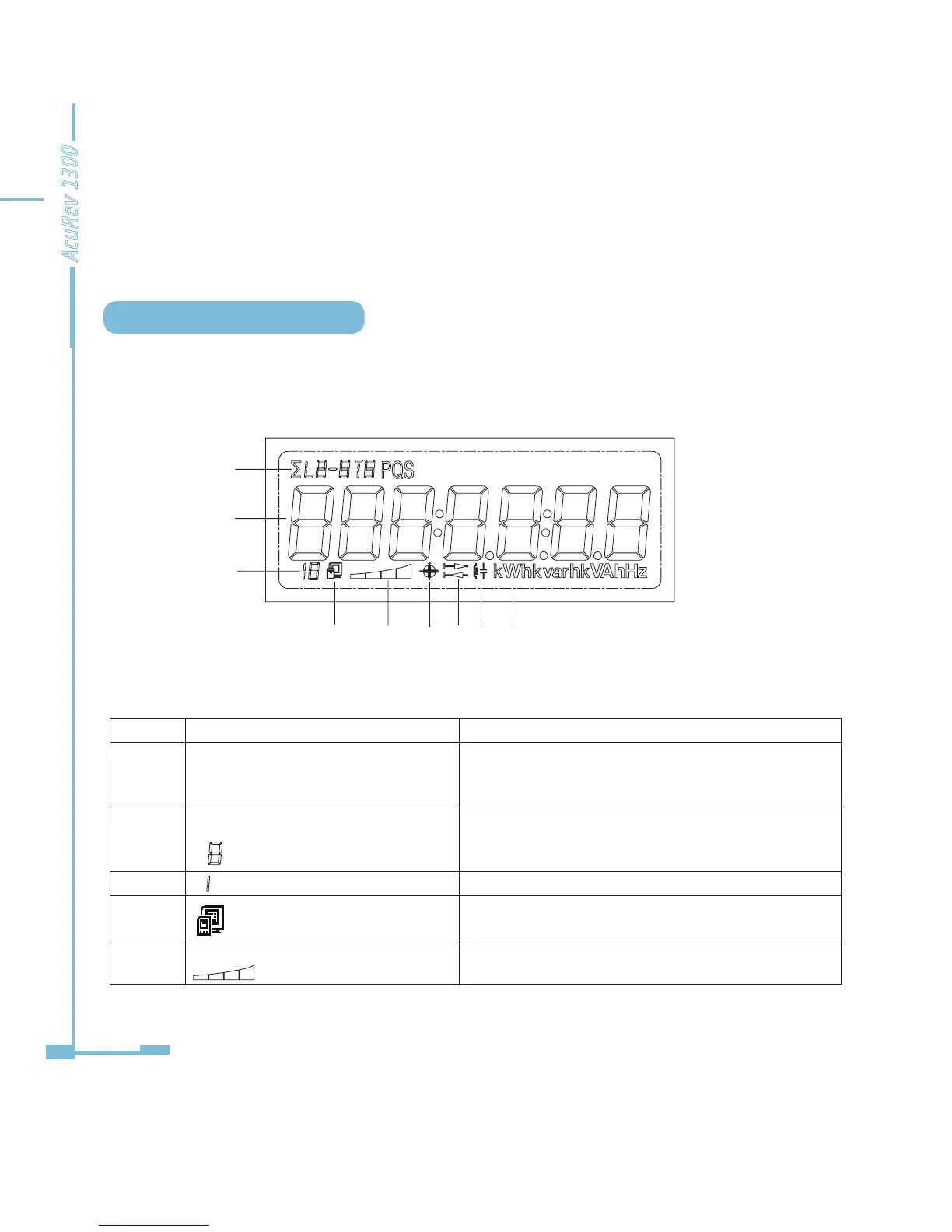

Figure 3-1 All LCD display lighten
Table 3-1 Display of content
NO. Content Description
1 Description area
To display what kind of parameter in the display area.
To distinguish the power of conjunction, split phase,
current, demand, parameter Settings, and so on.
2
Measurement parameter display area
7
decimal point, time signal
To display the main measurement parameters:
Energy, Voltage, Current, Power, Frequency, Demand,
Settings, Time.
3 Indicate the all information mode
4 Communication icon
No icon: no communication; One icon: query sent
Two icons: query sent and response received
5 Load size icon
Display in the analog way according to the load
frequency
3.1 Display Panel and Keys
1
2
3
4
5
6
7
8
9
