10
AcuRev 1300

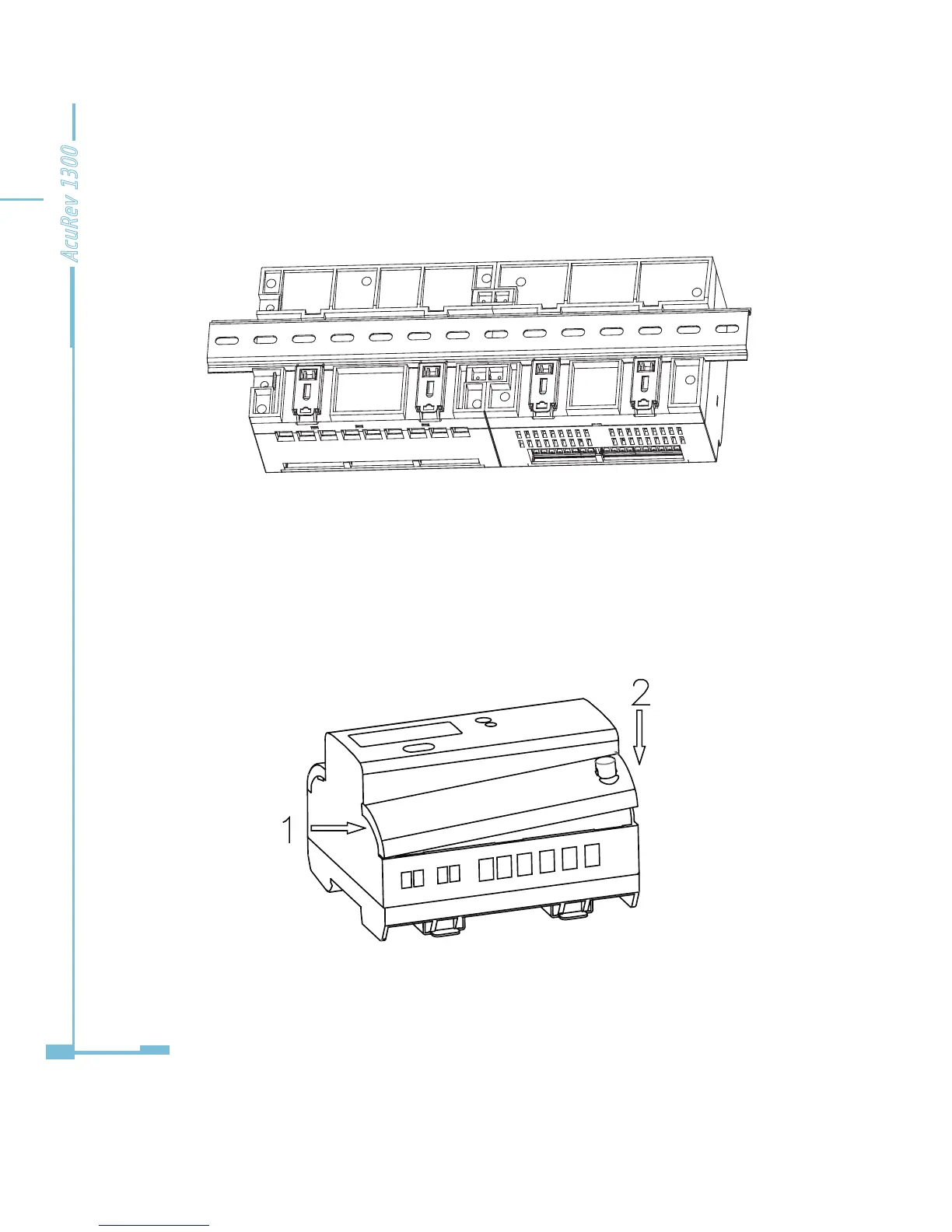

Figure 2-4 Step B
3. Before mentioning this step, the steps needed to remove the seal/cover need to be
mentioned. I.E. Step 5 below should come rst.To attach seal/cover back onto the meter
place the left side of the cover down onto meter and press down on the right side. When
installed correctly you will hear a clicking sound.The steps to attach the other cover is
opposite to the above step.
Figure 2-5 Step C
