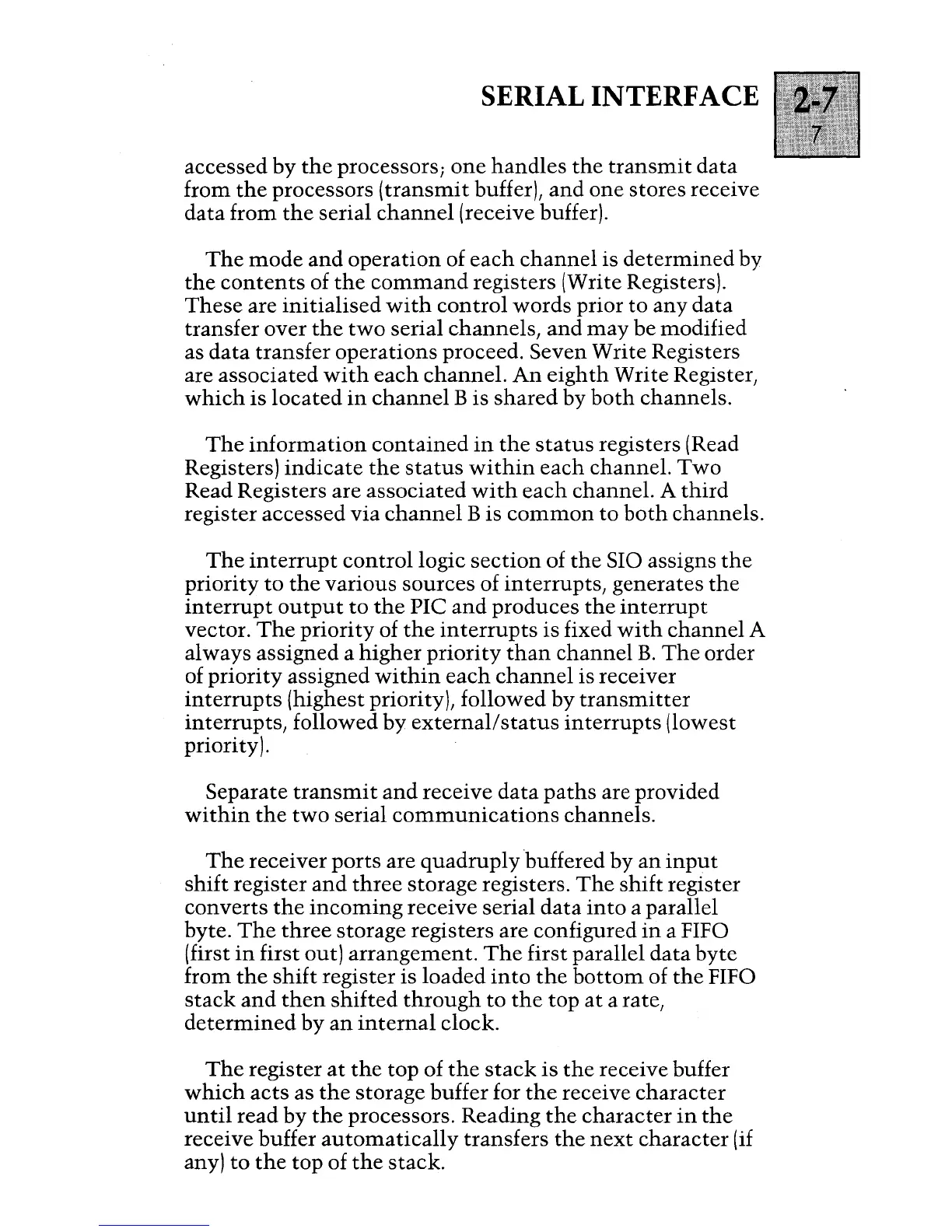

SERIAL INTERFACE
accessed by
the
processors;
one
handles
the
transmit
data
from
the
processors
(transmit
buffer),
and
one stores receive
data from
the
serial
channel
(receive buffer).
The
mode
and
operation
of
each
channel
is
determined
by
the
contents
of
the
command
registers (Write Registers).
These
are
initialised
with
control
words
prior
to
any data
transfer over
the
two
serial channels,
and
may
be modified
as
data
transfer operations proceed. Seven Write Registers
are associated
with
each
channel.
An
eighth
Write Register,
which
is
located
in
channel
B is
shared
by
both
channels.
The
information
contained
in
the
status
registers (Read
Registers)
indicate
the
status
within
each
channel.
Two
Read Registers are associated
with
each
channel. A
third
register accessed
via
channel
B is
common
to
both
channels.
The
interrupt
control
logic
section
of
the
SIO assigns
the
priority
to
the
various sources of
interrupts,
generates
the
interrupt
output
to
the
PIC
and
produces
the
interrupt
vector.
The
priority of
the
interrupts
is fixed
with
channel
A
always assigned a
higher
priority
than
channel
B.
The
order
of priority assigned
within
each
channel
is receiver
interrupts
(highest priority), followed by
transmitter
interrupts,
followed by
external/status
interrupts
(lowest
priority).
Separate
transmit
and
receive
data
paths
are provided
within
the
two
serial
communications
channels.
The
receiver
ports
are
quadruply
buffered by
an
input
shift register
and
three
storage registers.
The
shift register
converts
the
incoming
receive serial
data
into
a parallel
byte.
The
three
storage registers are configured
in
a FIFO
(first
in
first out)
arrangement.
The
first parallel
data
byte
from
the
shift
register is loaded
into
the
bottom
of
the
FIFO
stack
and
then
shifted
through
to
the
top
at
a rate,
determined
by
an
internal
clock.
The
register
at
the
top of
the
stack
is
the
receive buffer
which
acts
as
the
storage buffer for
the
receive
character
until
read by
the
processors. Reading
the
character
in
the
receive buffer
automatically
transfers
the
next
character
(if
any)
to
the
top of
the
stack.
