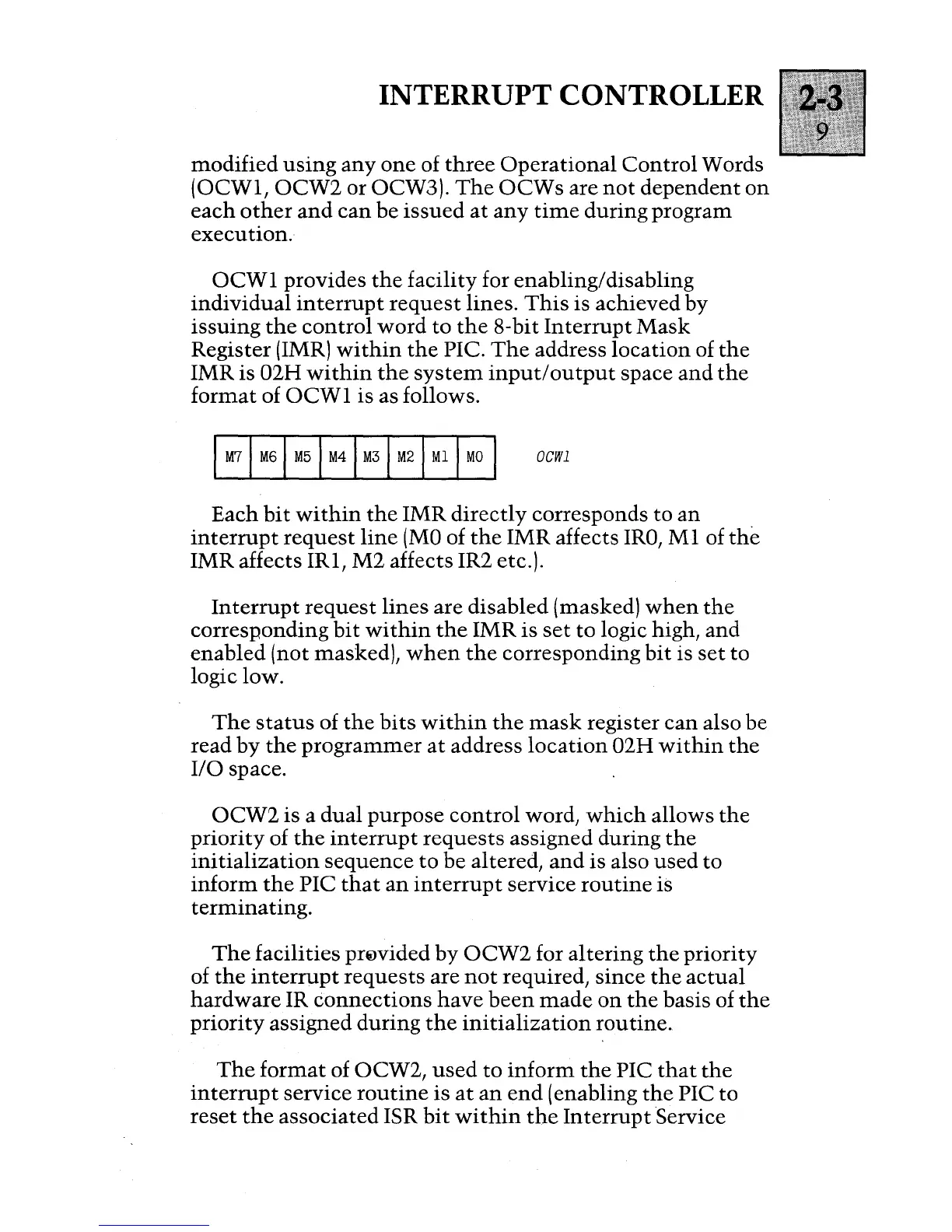

INTERRUPT CONTROLLER
modified
using
anyone
of
three
Operational
Control
Words
(OCWl,
OCW2
or OCW3).
The
OCWs
are
not
dependent
on
each
other
and
can
be
issued
at
any
time
during program
execution.
OCWl
provides
the
facility for enabling/disabling
individual
interrupt
request
lines.
This
is achieved by
issuing
the
control
word
to
the
8-bit
Interrupt
Mask
Register
(IMR)
within
the
PIC.
The
address
location
of
the
IMR is
02H
within
the
system
input/output
space
and
the
format
of
OCW
1 is as follows.
I
M71
M61
M51
M41
M31 M21
Ml
I
MO
I
DeW1
Each
bit
within
the
IMR
directly
corresponds
to
an
interrupt
request
line
(MO
of
the
IMR affects
IRO,
Ml
of
the
IMR affects
IRl,
M2
affects IR2 etc.).
Interrupt
request
lines
are disabled (masked)
when
the
corresponding
bit
within
the
IMR is
set
to
logic high,
and
enabled (not masked),
when
the
corresponding
bit
is
set
to
logic low.
The
status
of
the
bits
within
the
mask
register
can
also be
read
by
the
programmer
at
address
location
02H
within
the
I/O
space.
OCW2
is a dual purpose
control
word,
which
allows
the
priority of
the
interrupt
requests
assigned during
the
initialization
sequence
to
be altered,
and
is also
used
to
inform
the
PIC
that
an
interrupt
service
routine
is
terminating.
The
facilities prilvided by
OCW2
for altering
the
priority
of
the
interrupt
requests
are
not
required, since
the
actual
hardware
IR
connections
have
been
made
on
the
basis of
the
priority
assigned during
the
initialization
routine.
The
format
of OCW2,
used
to
inform
the
PIC
that
the
interrupt
service
routine
is
at
an
end
(enabling
the
PIC
to
reset
the
associated ISR
bit
within
the
Interrupt
Service
