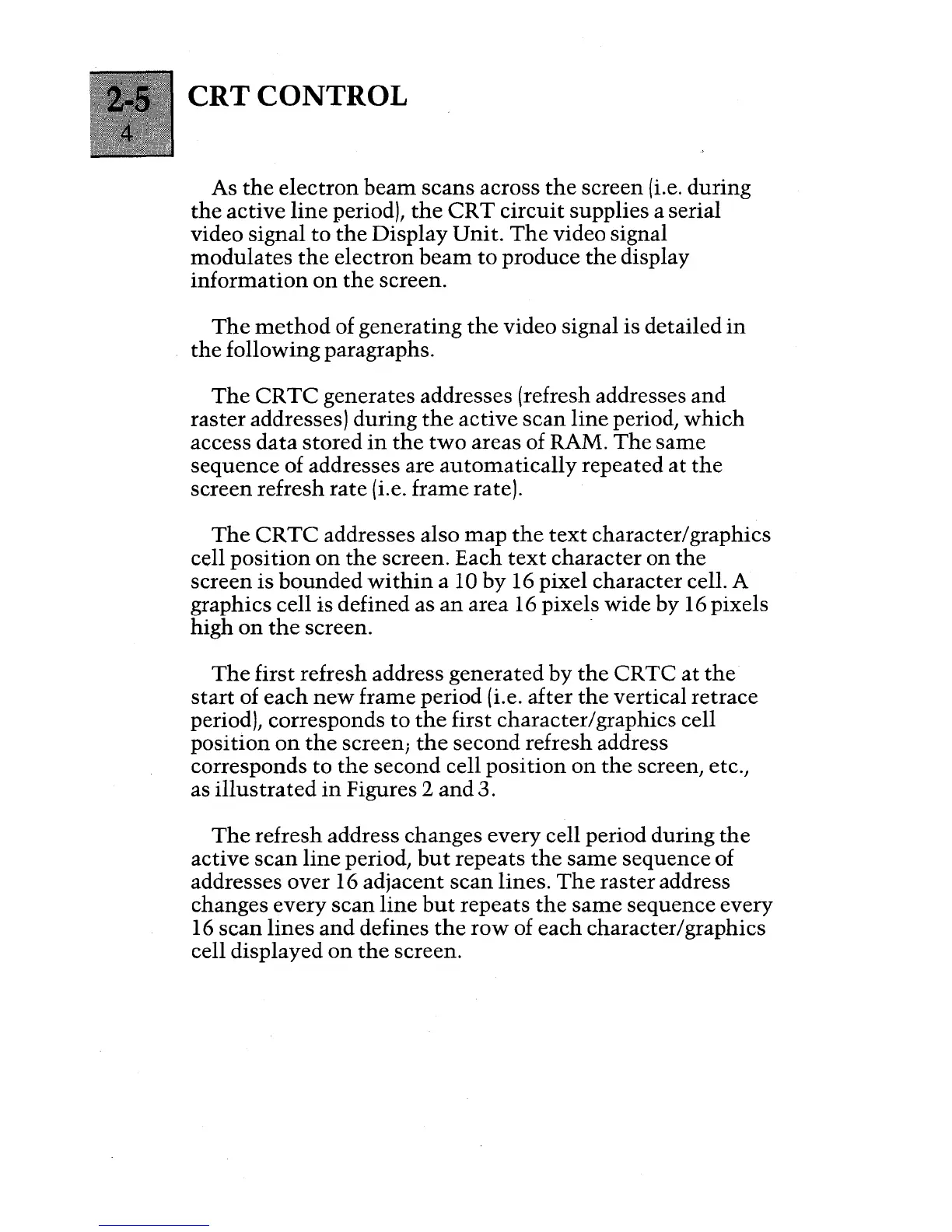

CRT
CONTROL
As
the
electron
beam
scans across
the
screen (i.e. during
the
active
line
period),
the
CRT
circuit
supplies a serial
video signal
to
the
Display
Unit.
The
video signal
modulates
the
electron
beam
to
produce
the
display
information
on
the
screen.
The
method
of generating
the
video signal is detailed
in
the
following paragraphs.
The
CRTC
generates addresses (refresh addresses and
raster
addresses) during
the
active
scan
line
period,
which
access
data
stored
in
the
two
areas of RAM.
The
same
sequence of addresses are
automatically
repeated
at
the
screen refresh
rate
(i.e. frame rate).
The
CR
TC
addresses also
map
the
text
character/graphics
cell
position
on
the
screen. Each
text
character
on
the
screen is
bounded
wi
thin
a 10 by 16 pixel character cell. A
graphics cell is defined as
an
area 16 pixels wide by 16 pixels
high
on
the
screen.
The
first refresh address generated by
the
CR
TC
at
the
start
of each
new
frame period (i.e. after
the
vertical retrace
period), corresponds
to
the
first character/graphics cell
position
on
the
screen;
the
second refresh address
corresponds to
the
second cell
position
on
the
screen, etc.,
as
illustrated
in
Figures 2
and
3.
The
refresh address changes every cell period during
the
active
scan
line
period,
but
repeats
the
same
sequence of
addresses over 16 adjacent scan lines.
The
raster address
changes every scan
line
but
repeats
the
same
sequence every
16
scan
lines
and
defines
the
row
of each character/graphics
cell displayed
on
the
screen.
