Acteon X-MIND unity - Page 74

 !"##"$"%"&%*""#
Page C;of (()XM_unity_Installation&Maintenance_Manual Ed.1.3c2013
(

"##&3$0!

'

"&F&$2%0
13"/%0*"#!

5

&3$0!!&0%1!

;

0$&$2%0

=

6H!&0%1!


0"">@1AA2
>G!1'8%5@@38B@C2
1. Disassemble the XMIND unity remote exposure switch by unscrewing the 2 fixing screws (5).
2. Fix the back cover (2) to the wall by using the wall anchors (1) and Anchors screws (3).

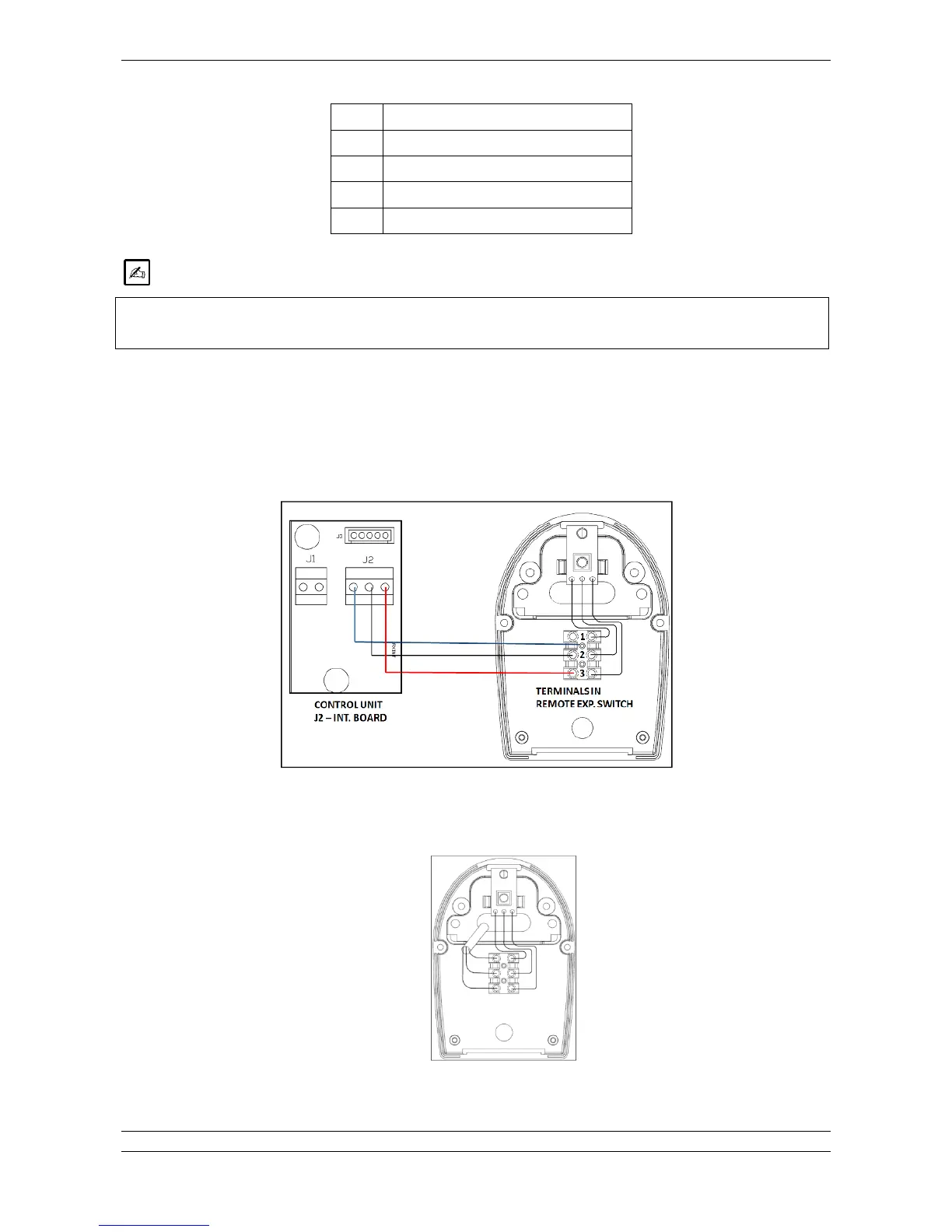

3. Connect the wires to the terminal as indicated in the figure below, it is important to respect polarity. (For further details
please refer to the wiring scheme in the chapter “ELECTRICAL SCHEME”)
Fig. 5.51
4. Arrange connections in the remote exposure switch as shown below, use the cable ties provided to fix the cable and
always respect polarity.
Fig. 5.52
5. Close the front cover (4) then screw in the fixing screws (5).
