Page ;Bof (()XM_unity_Installation&Maintenance_Manual Ed.1.3c2013

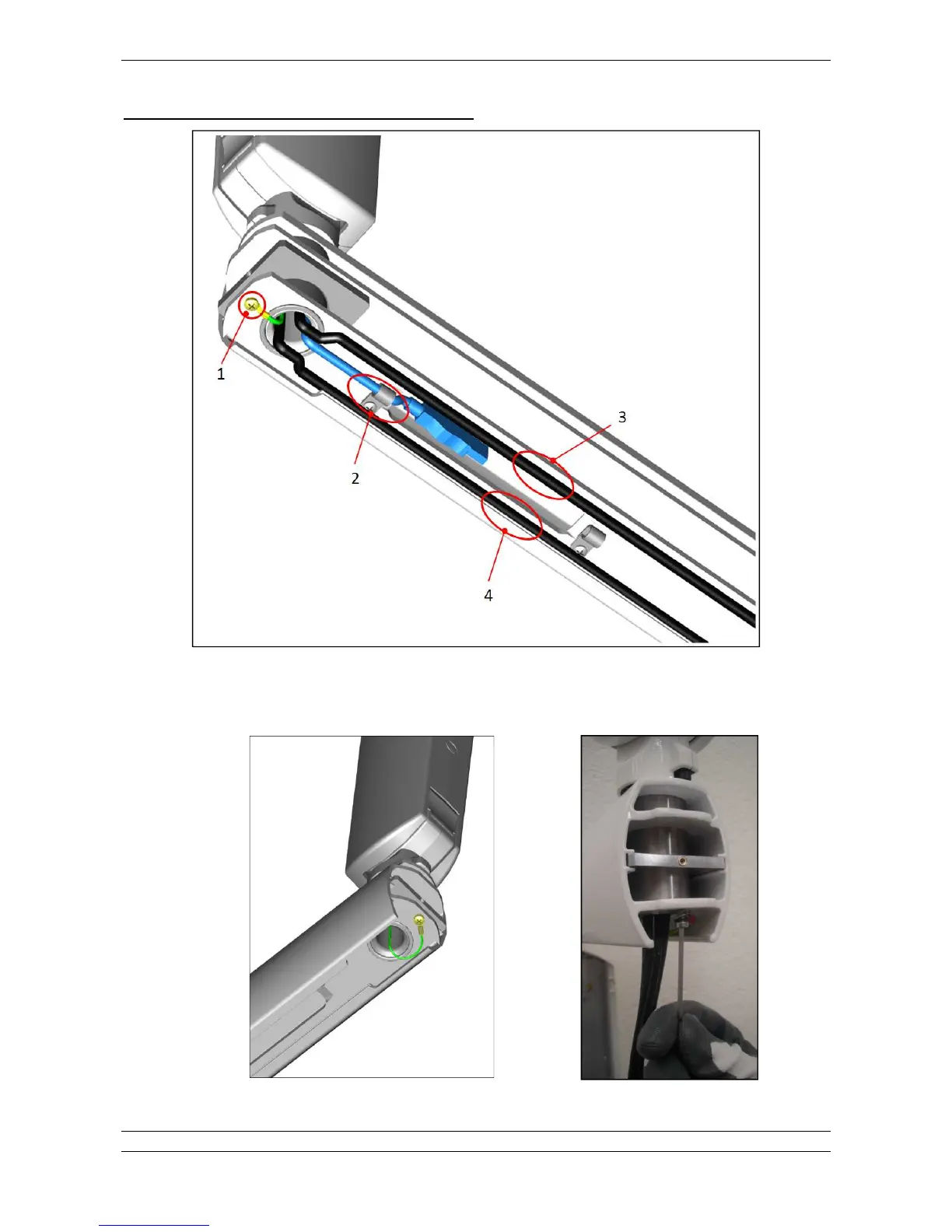

CABLE HOUSING AND CONNECTIONS INSIDE THE BRACKET
Fig. 5.19
1. Fix ground cable connection in the dedicated terminal D(E of the horizontal bracket by means of screw and toothed
washer installed already provided.
Fig. 5.20
