All the types of horizontal bracket available are already provided with the ground internal wiring.
A ground cable provided with ring for protective ground connection is connected at the bottom of the bracket and it must be routed
and connected on the wall plate as indicated in the following instructions contained in the manual.
BRACKET PREPARING INSTRUCTIONS

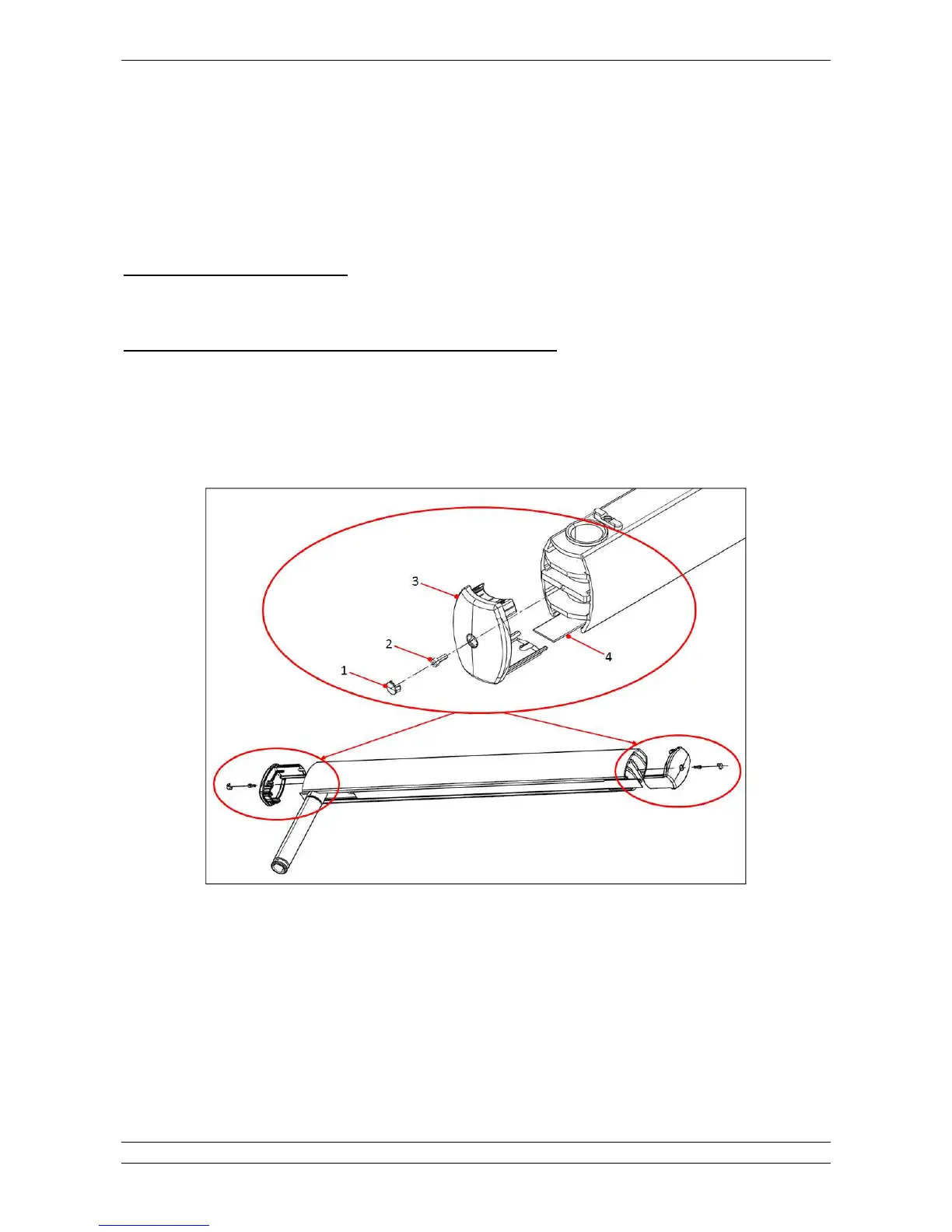

Take out the bracket from the box and disassemble it as shown below, in order to have access to the cables area.
The bracket cap on the scissor arm side is already disassembled.
The disassembling procedure it is the same both for TOP and BOTTOM brackets.
To disassemble the bracket cap:
1. Remove the screw cap by using a little flat screwdriver D(E4
2. Remove the screw D'E by using a Metric Allen key.
3. Remove the bracket cap D5E and remove the bottom cover D;Esliding it out.
Fig.5.7
