Acteon X-MIND unity - Checking the Exposure Factors; CHECKING the X RAY TUBE CURRENT (Ma); CHECKING the X RAY TUBE VOLTAGE (Kv)

 !"##"$"%"&%*""#
Page B;of (()XM_unity_Installation&Maintenance_Manual Ed.1.3c2013
()4 

,9
#



*

6$)("
6
()4(4 DFE
The radiographic voltage is measured using a calibrated “noninvasive” instrument.
Please refer to your local regulatory body for dedicated test specifications.
Please check PP chapter for reference values.
()4'4 D*E

The radiographic current is measured by connecting a multimeter to the 2 test points available in the fork.
Following the instructions below to perform this measure.

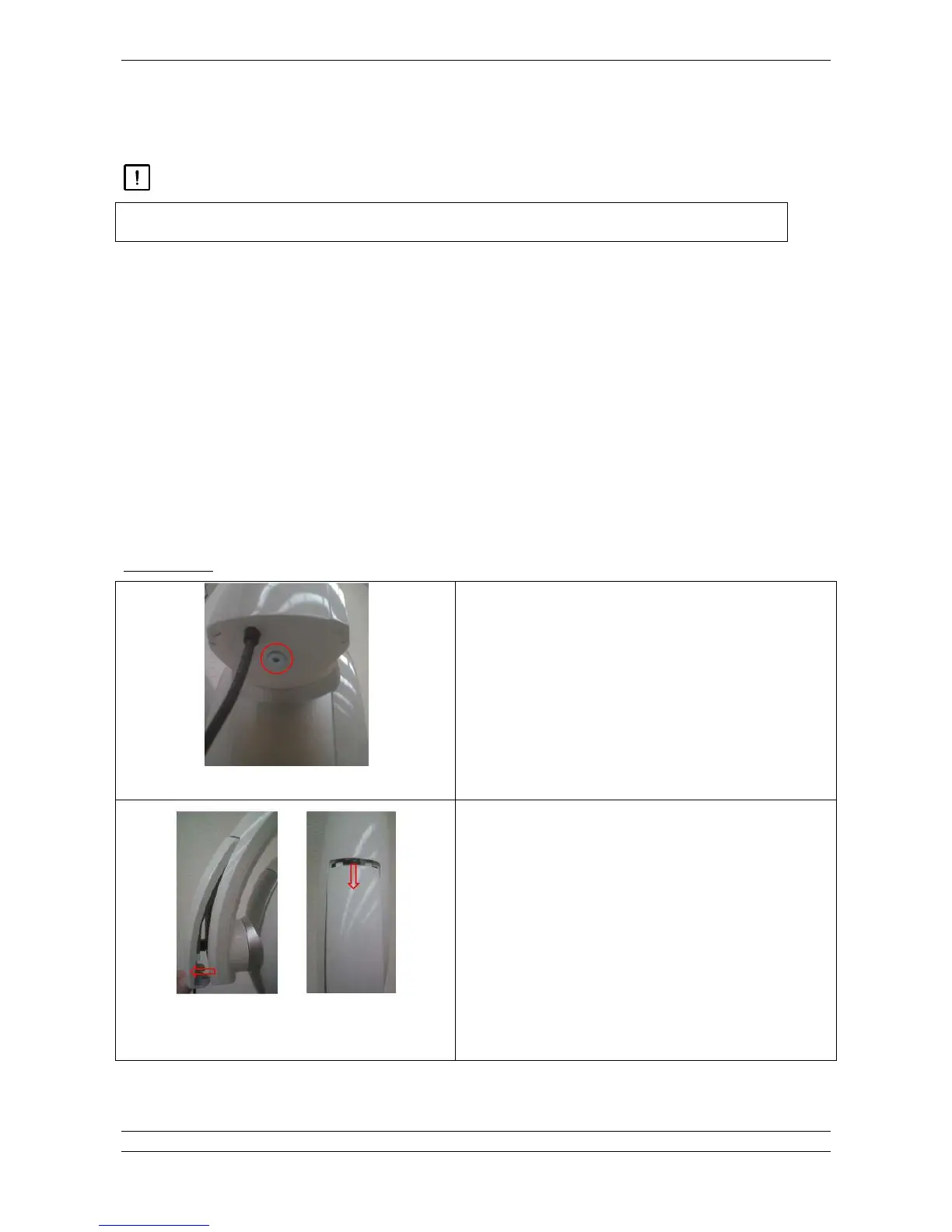

INSTRUCTIONS
Fig.10.1
1. Remove fixing screw located at bottom side of the fork.
Fig.10.2
2. After removed the screw, move back and slide down the bottom
cover of the fork.
