Acuity Controls nLight ECLYPSE User Manual

Power Supply Requirements for 24VAC-Powered Controllers
BACnet MS/TP is a Three-Wire Data Bus
Even though data is transmitted over a 2-wire twisted pair, all EIA-485 transceivers interpret the voltage levels of the trans-
mitted differential signals with respect to a third voltage reference common to all devices connected to the data bus (signal
reference). In practice, this common signal reference is provided by the building’s electrical system grounding wires that
are required by electrical safety codes worldwide. Without this signal reference, transceivers may interpret the voltage lev-
els of the differential data signals incorrectly, and this may result in data transmission errors.
The PS120 Power Supply is a double-insulated device and therefore is not grounded. The reference for the BACnet MS/TP data bus is
made by connecting the shield of the BACnet MS/TP data bus to the ECLYPSE Controller’s S terminal to provide a signal reference. This
shield is grounded at one point only – see Data Bus Shield Grounding Requirements.
Avoid Ground Lift
24V Power wiring runs should not be too long, nor have too many devices connected to it. Wiring used to supply power to
devices has a resistance that is proportional to the length of the wiring run (See the table below).
AWG Diameter Area Copper wire resistance
Range (mm) (kcmil) (mm
2
) (Ω/km) (Ω/1000 ft.)
14 0.0641 1.628 4.11 2.08 8.286 2.525
16 0.0508 1.291 2.58 1.31 13.17 4.016
18 0.0403 1.024 1.62 0.823 20.95 6.385
Table10: Resistance of Common Copper Wire Sizes
If the power run from the power supply is relatively long and it supplies power to many devices, a voltage will develop over
the length of wire. For example, a 1000 ft. of 18 AWG copper wire has a resistance of 6.4 Ohms. If this wire is supplying 1
Ampere of current to connected devices (See the figure below), the voltage developed across it will be 6.4 volts. This effect
is called ground lift.
The equivalent resistance of a run of wire. For
example, a 1000 ft of 18 AWG copper wire
has a resistance of 6.4 Ohms. With 1 Ampere
of current, the voltage developed along the
length of the electrical power run for one
conductor will be 6.4 volts.
24V COM
24V AC/DC
BACnet Device
R
eqv
Electrical Power Run Length
I = 1 A
AC Power
Source
24 / 120 / 208 /
240 / 277 / 347 /
480 VAC, 1Ø, 2-
Wire plus Ground
Power Supply
24 VAC
Fuse: 4A Max.
Fast Acting
Electrical
System
Ground – At
Transformer
Only

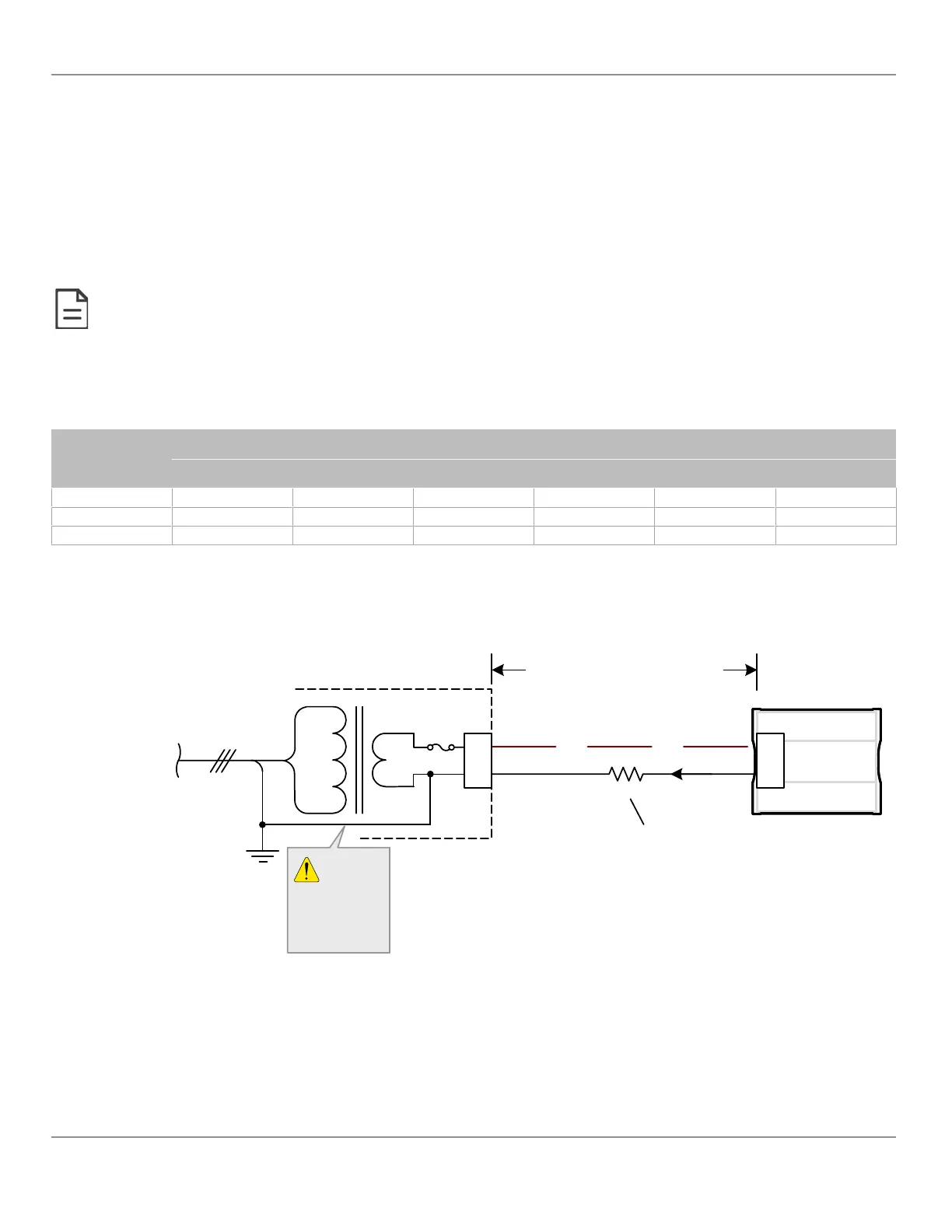

Figure103: Ground Lift from a Long Power Run with a 24VAC Device
Because the 24V COM terminal on BACnet MS/TP controllers is the signal reference point for the data bus, ground lift off-
sets the data bus voltage reference that is used to interpret valid data levels sent on the data bus. If the ground lift is more
than 7 volts peak, there is a risk of data corruption and offline events due to the device being incapable of correctly reading
data signals from the data bus.
Thus, it is important to keep the power supply (transformer) as close to the controller as
possible.
BACnet MS/TP Communication Data Bus Fundamentals
106
