Set pre-programmed lists
The “List Settings” button allows entering information which will then be used in drop-down lists.
There are four sections in this menu:

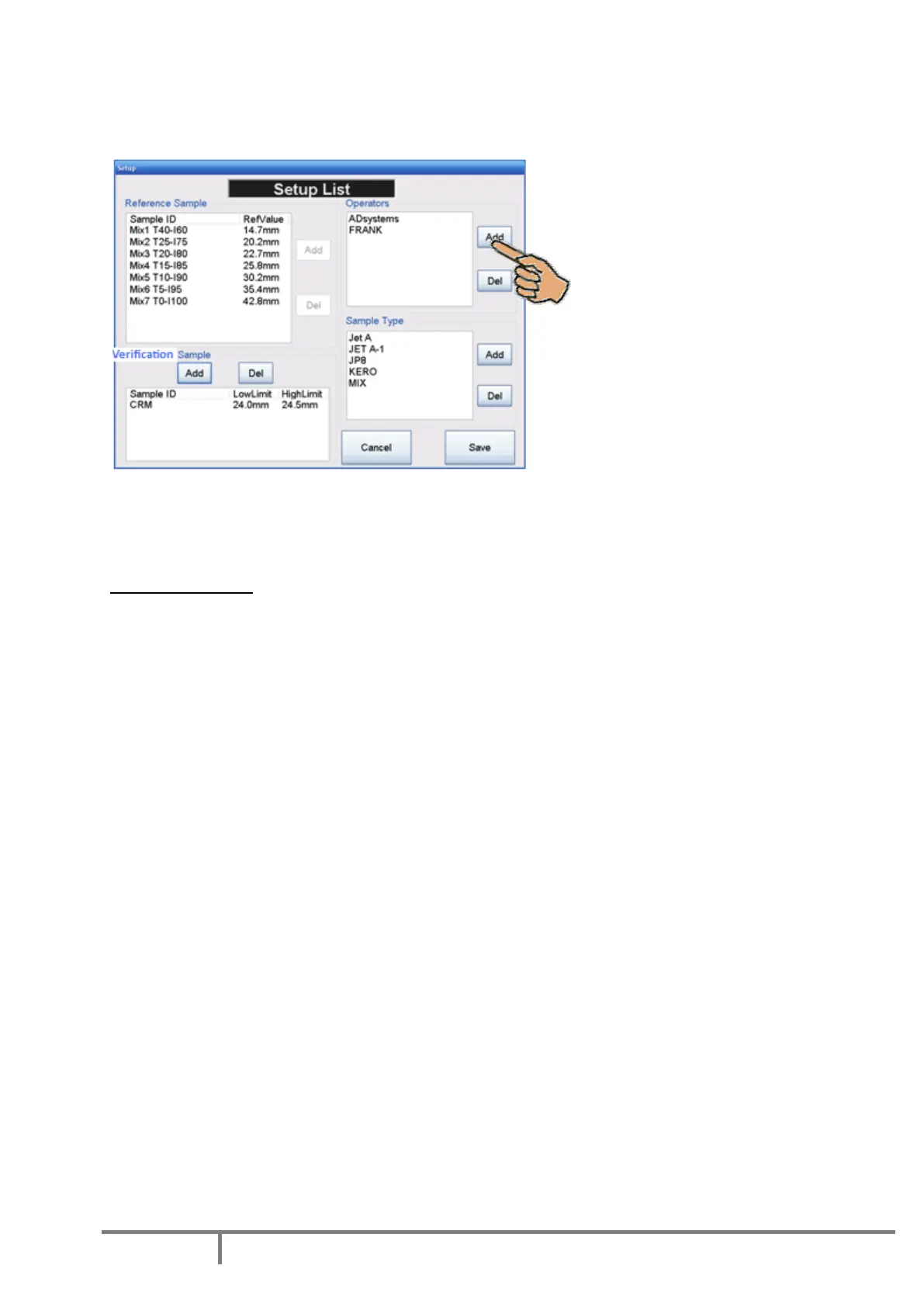

To make a new entry in the list, simply press the Add button, the virtual keyboard will appear. Type-in the
data and press ENTER. To delete any record, select it and press the DEL button.
In order to memorize the modifications, press Save button prior leaving the menu.
Description of Lists:
Operators - name of the person performing tests on the SP 10. Maximum 15 characters.
Sample Type - identification of fuel type to be tested. Maximum 15 characters.
Reference Sample - identification of reference blend used for instrument calibration.
The instrument is shipped with factory pre-defined list of reference fuels in according with the ASTM
D1322 Table 1:
Mix1 T40-I60 Reference value : 14,7 cm
Mix2 T25-I75 Reference value : 20,2 cm
Mix3 T20-I80 Reference value : 22,7 cm
Mix4 T15-I85 Reference value : 25,8 cm
Mix5 T10-I90 Reference value : 30,2 cm
Mix6 T5-I95 Reference value : 35,4 cm
Mix7 T0-I100 Reference value : 42,8 cm
The reference sample name is associated with the reference value. This value will be in future used by the
instrument when the corresponding reference fuel is selected for calibration. It is not possible to delete
the factory fuels or add other fuels in the list.
Verification Sample - identification of quality control fuels used for periodical instrument verification .
Maximum 15 characters. The verification sample name is associated with control limits: Low Limit and
High Limit. Limits values should be entered in tenth of millimeters. The entry of new verification sample
without limits is not allowed.
Example: Name: CRM1; Low Limit: 235 (23,5 mm); High Limit: 245 (24,5 mm)
