Doc : AM220-001E Release: 1.5 updated : October 2014
At the end of test, the SP 10 instrument calculates the mean value of the three consecutive readings of
the smoke point. The result is rounded then corrected with the memorized lamp correction factor. A
complete test report is saved in a built‐in data base. It can be printed, transferred on a USB memory stick
and/or send to a LIMS when the SP 10 is connected to a LAN.
Test modes

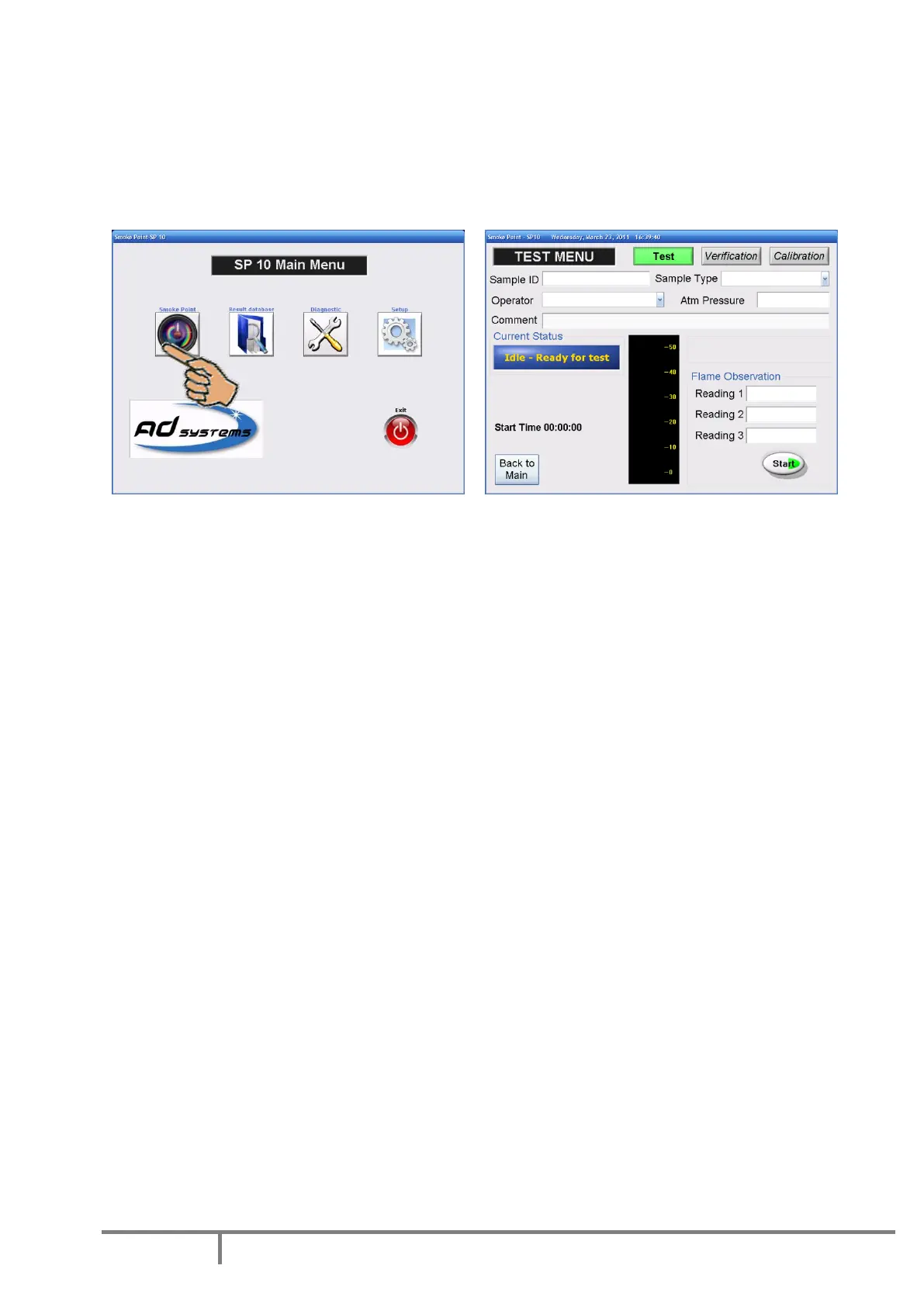

Press the “TEST” button on the Main menu.
By pressing corresponding button on the top of the screen, select type of measurement to perform:
TEST – test sample measurement mode
VERIFICATION – proceed with measurement of verification sample for periodic instrument check
CALIBRATION – proceed with lamp factor calibration by reference fuels
Depends on the mode of measurement, the required test information fields will change accordingly.
Check that the instrument is ready for test – status should be “Ready”.
