74 Adria Caravans
Before placing into service (not CSV 400):
Check whether the battery selector switch (Fig. 58/6) is in the correct position.
Make sure the living area battery is connected.
Placing into service:
The 12 V main switch on the control panel serves to switch the system on (Chapter 8.6).
Vehicle flat blade fuses
The vehicle flat blade fuses (Fig. 58/2) protect the various power circuits

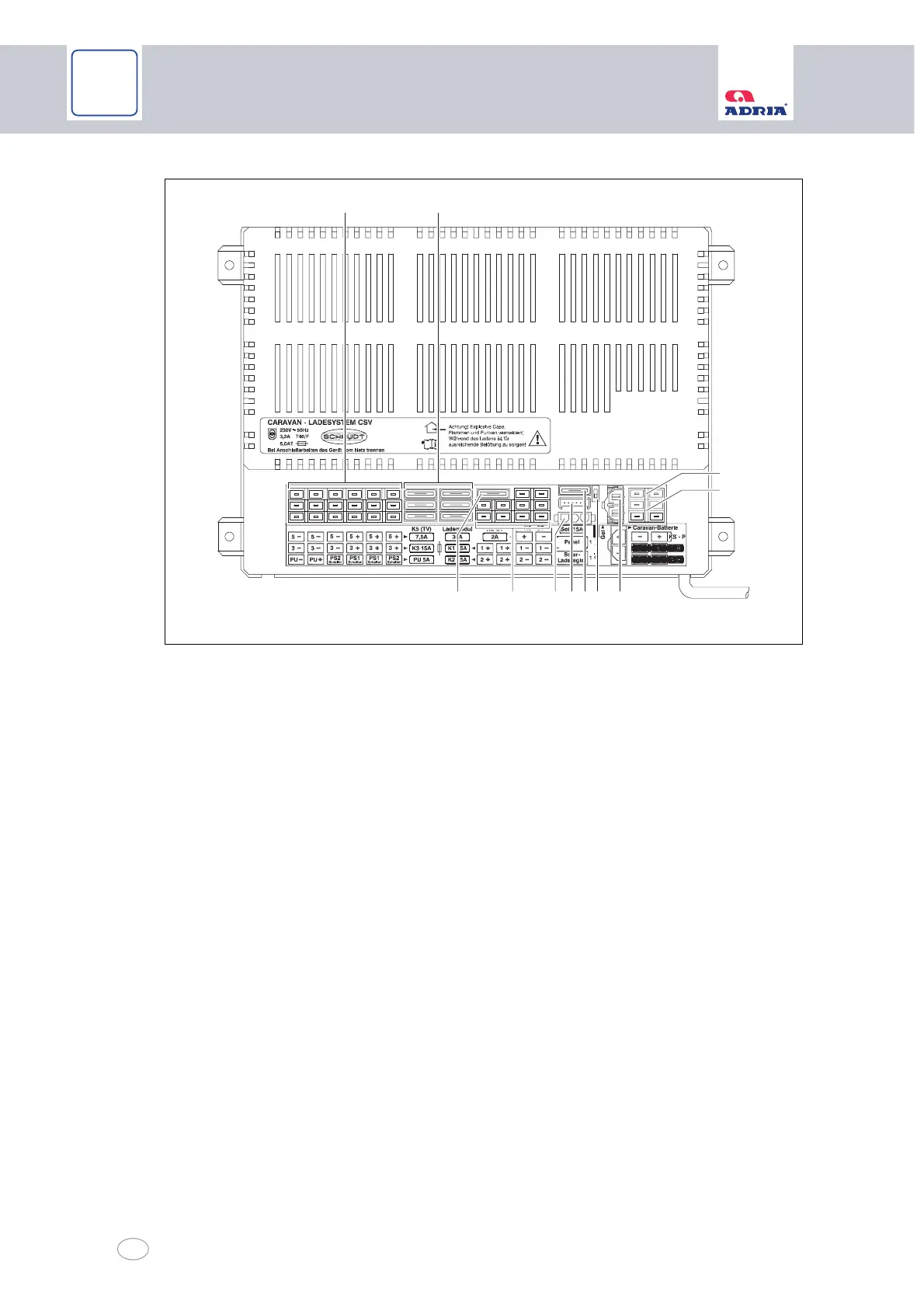

Fig. 58 Power supply unit CSV 4xx (Figure can deviate from actual unit). )
1 Connections for 12 V consumers
2 Vehicle flat blade fuses for 12 V electric circuits
3 Connections for 12 V consumers
4 12 V supply, towing vehicle
5 Caravan battery connection (not CSV 400)
6 Battery selector switch (not CSV 400)
7 Solar flat blade fuse (not CSV 400)
8 Connection for control panel
9 Connection for solar charge regulator (not CSV 400)
10 Connections for 12 V consumers
11 Vehicle flat blade fuses for refrigerator control (not CSV 400)
