4-80 ADS TRITON+
®
Manual

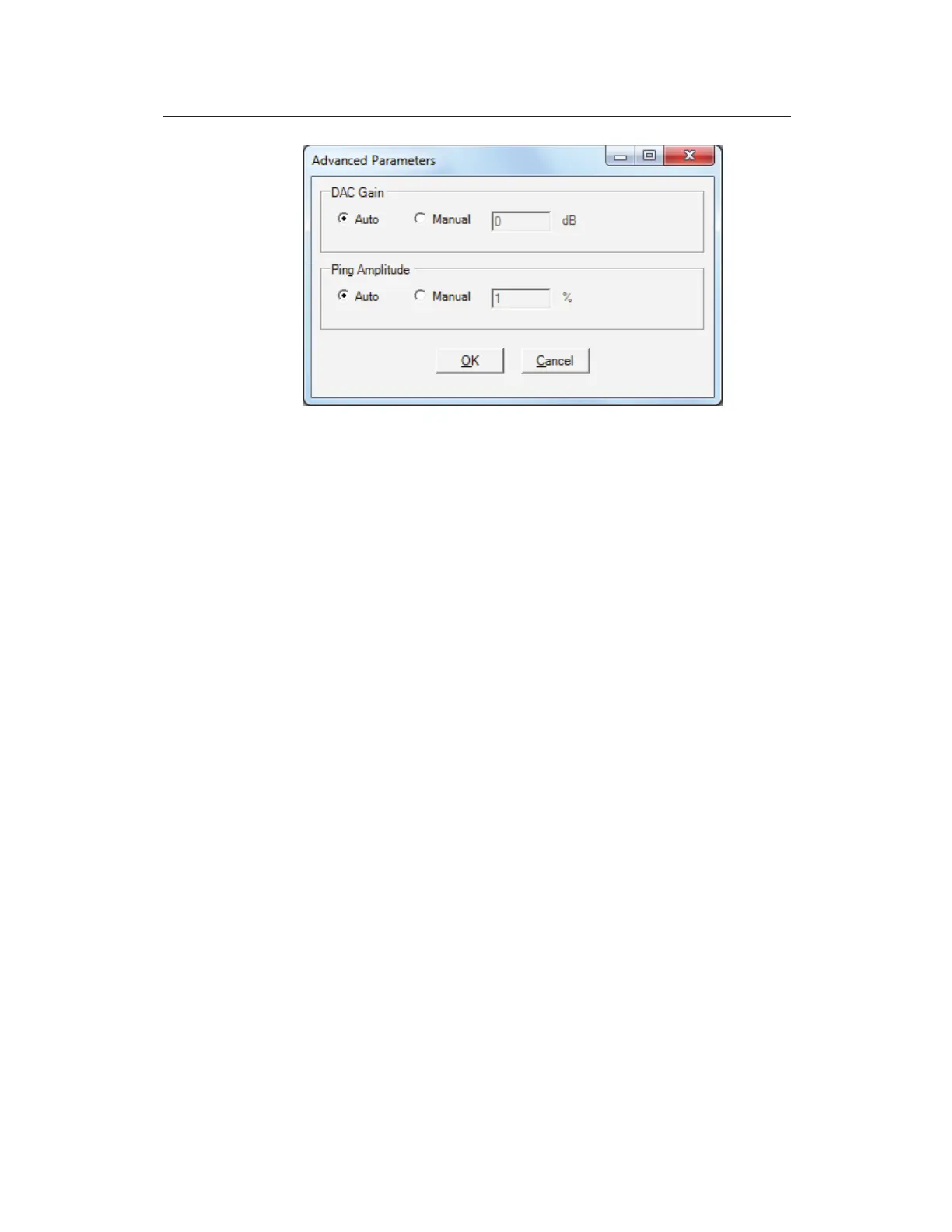

Advanced Parameters dialog
Modify the parameters as necessary, and then select OK once
complete.
DAC Gain Choose the method for managing the amplification of
the analog signal that returns to the sensor:
Auto Select this option to allow the monitor to automatically
optimize the amplification of the signal.
Manual Select this option to enter a fixed value between -
12db (lower amplification) and +12db (high amplification) at
which to amplify the signal.
Ping Amplitude Choose the method for managing the
amplification of the analog signal that is sent out, or transmitted
from, the sensor. Smaller pipes typically require weaker (quieter)
amplification; larger pipes typically require stronger (louder)
amplification.
Auto Select this option to allow the monitor to automatically
optimize the amplification of the signal.
Manual Select this option to enter the percentage of full
amplification at which to transmit the signal. Enter a
percentage between 10 and 100 percent, where 100 percent
represents maximum amplification.
Pressure tab – ParaFlow/Surface Combo
