5-16 ADS TRITON+ Manual
8. Spread the ring sections apart so that you can slide the ring
stabilizer with the spreader mechanism screw into the gap.

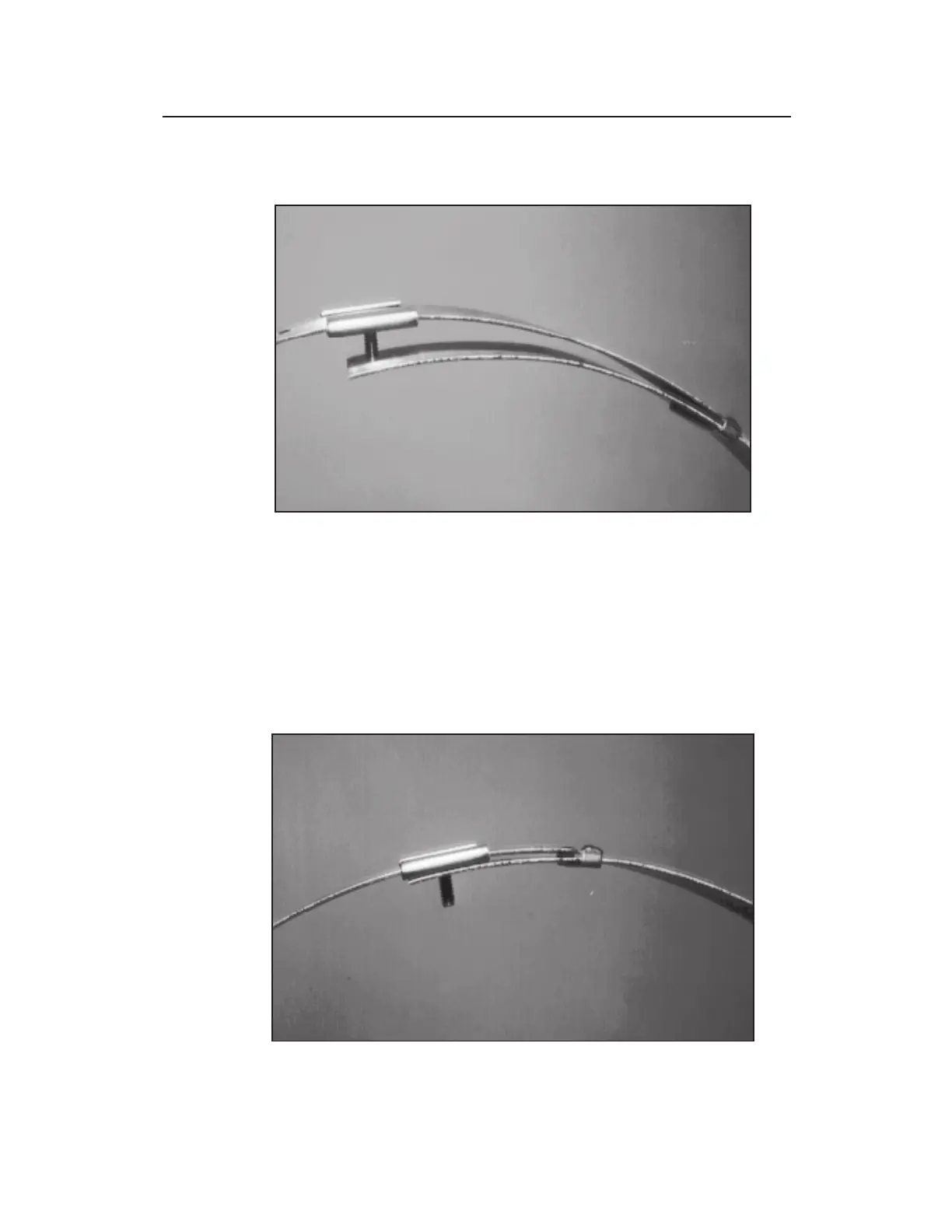

Moving the ring stabilizer into position
9. Perform the following based on the ring type:
Overlapping Insert the spreader mechanism screw
completely through the hole at the open end of the ring.
Non-Overlapping Insert a spreader mechanism screw
through the hole at the left end of the ring so that the end
of the screw extends inside the ring.
Ring stabilizer fully connected
