Sensor Installation and Connection 5-23

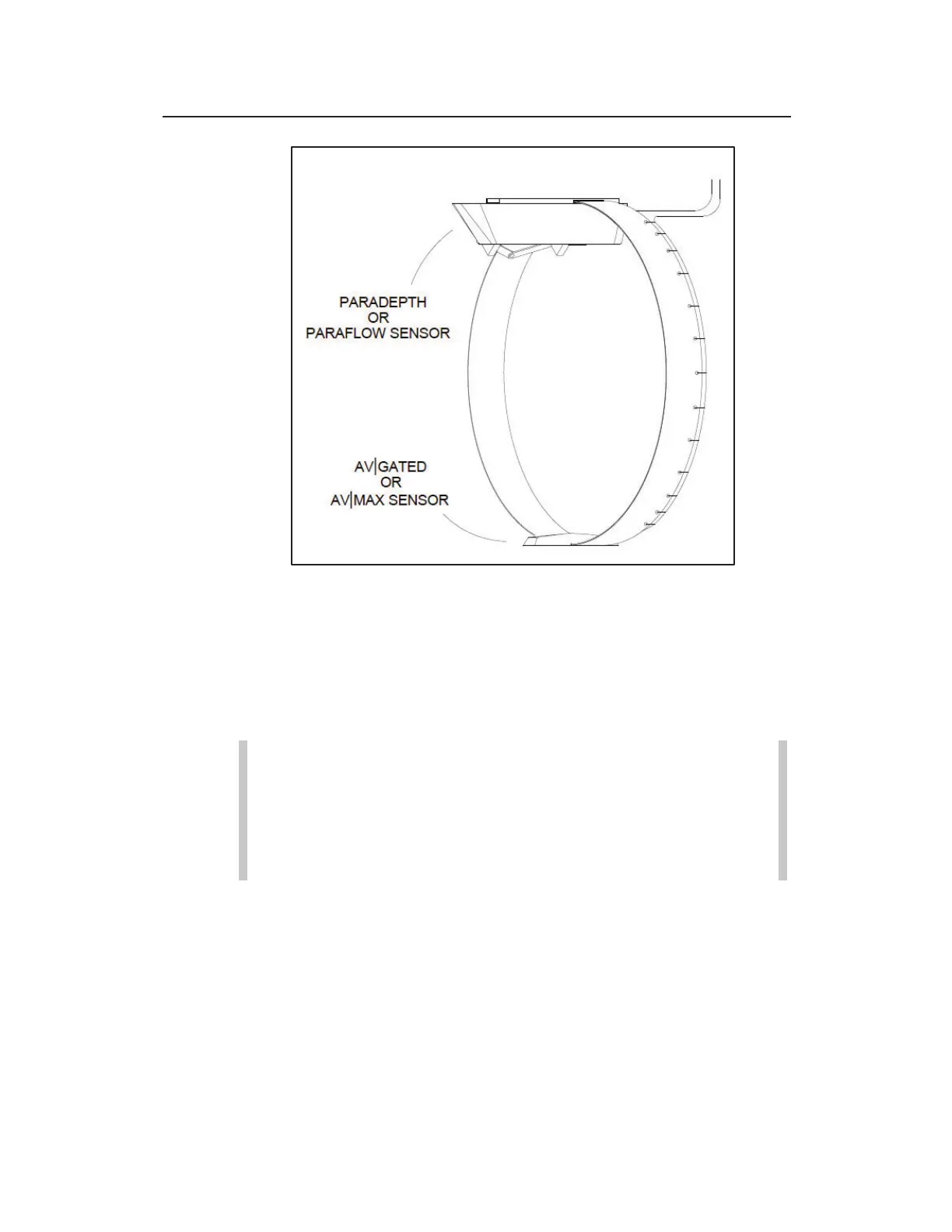

Proper positioning of sensors on the ring Surface Combo, ParaDepth, or
ParaFlow sensor at top and AV|Gated, AV|Max or Peak Combo sensor at
the bottom)
z ParaDepth, ParaFlow, Surface Combo Sensor or
Ultrasonic Depth Sensor Mount the sensor at the twelve
o’clock position (top of the pipe) with the spreader mechanism
in the ten or two o’clock position.
Caution: Handle all sensors and cables with extreme
care. The sensors and cables contain delicate mechanisms
and electronics. Keep sharp objects away from sensor
cables, and avoid stepping or placing heavy objects on the
cable during installation.
