Sensor Installation and Connection 5-33

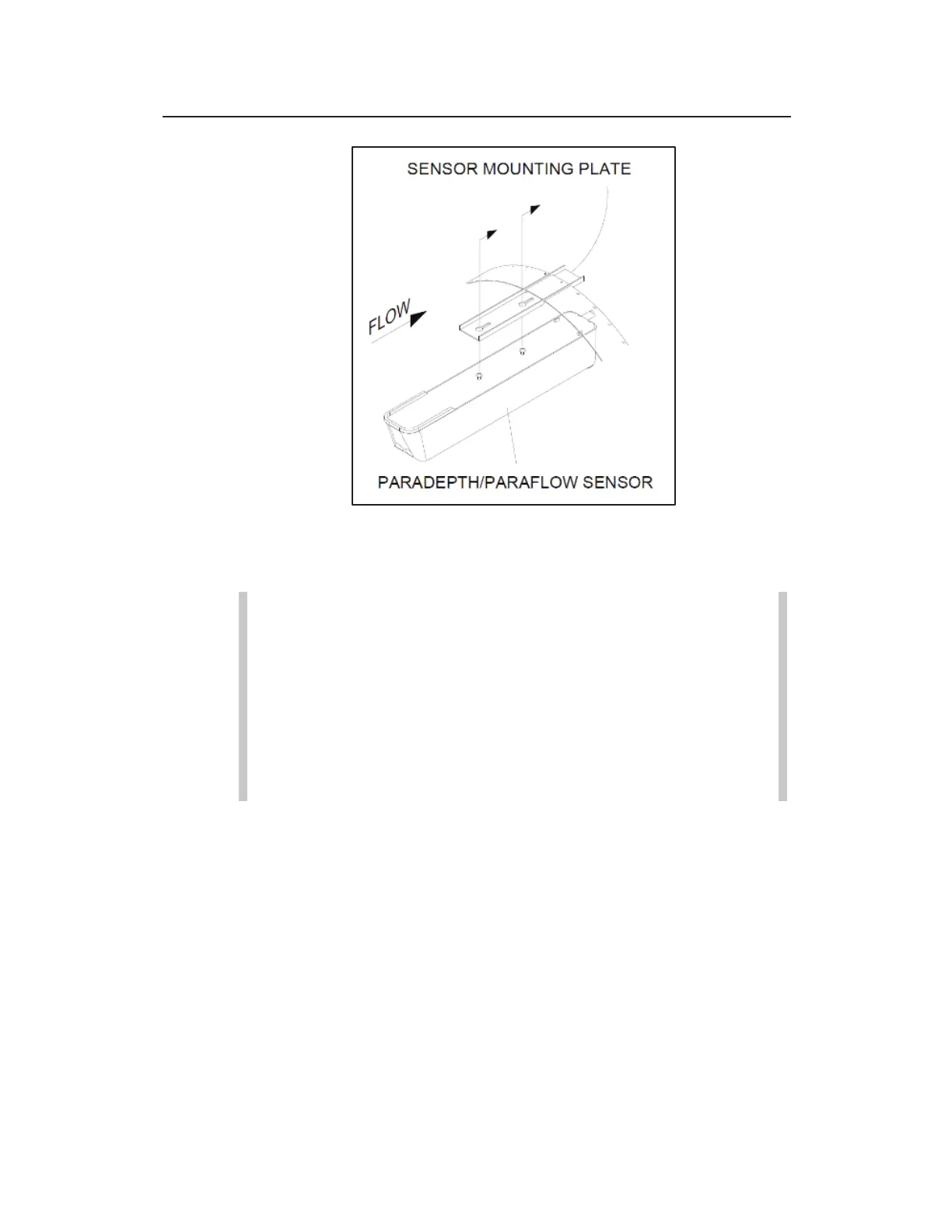

Mounting the ParaDepth/ParaFlow/Surface Combo/Ultrasonic Depth sensor
to the mounting plate on the ring
Note: Handle the ParaDepth/ParaFlow/Surface
Combo/Ultrasonic Depth sensors with care, and do not
expose it to extreme temperatures for an extended period
of time. Keep the sensor in its protective packaging until
it is time for installation. Avoid contacting the metal
connector at the end of the sensor cable (or any other
sharp object) with the Teflon
®
-coated crystals on the
sensor.
6. Using a 24-inch (500-mm or 1000-mm) carpenter’s level,
orient the ParaDepth/ParaFlow/Surface Combo/Ultrasonic
Depth sensor at the top of the pipe so that the sensor face is
parallel and level (from side to side) with the flow surface and
pipe crown. To protect the crystals on the Surface
Combo/Ultrasonic Depth sensor, use a block of wood of
uniform dimensions between the level and the flat face of the
horizontal, ultrasonic depth sensor portion of the sensor!
