Sensor Installation and Connection 5-55

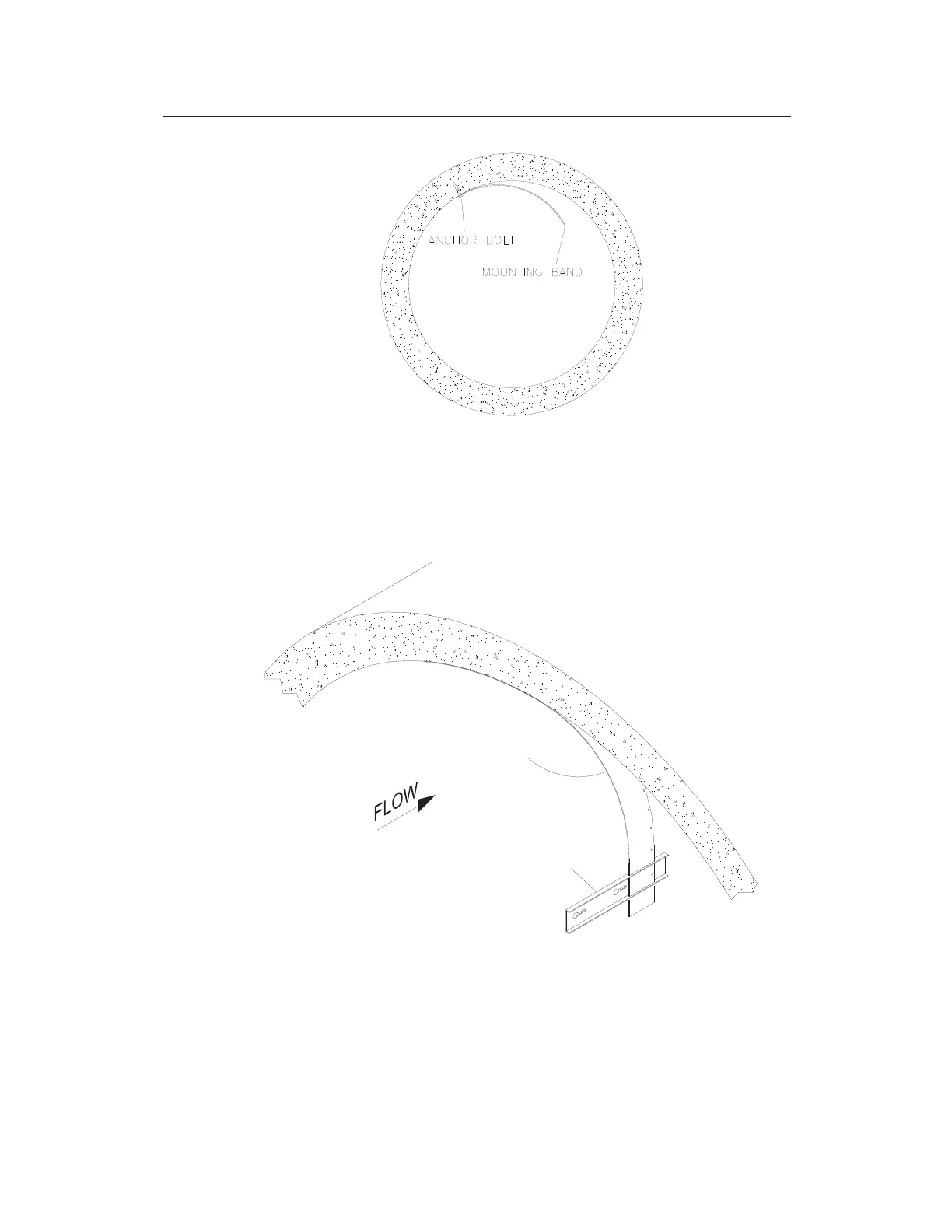

Securing one end of the sensor mounting band
6. Slide the sensor mounting plate (ADS p/n 8000-0307-02) onto
the band with the end of the plate with the keyholes facing
upstream and the two band slots facing up.
Sliding the mounting plate for the ParaDepth/ParaFlow/Surface Combo
/Ultrasonic Depth Sensor onto the free end of the mounting band
7. Align the sensor mounting plate with the scribe marks, and
conform the other end of the curved band with the pipe.
PLATE
MOUNTING
SENSOR
MOUNTING BAND
