5-58 ADS TRITON+ Manual
Measureing the Physical Offset of the Surface Combo or Ultrasonic Depth
Sensor

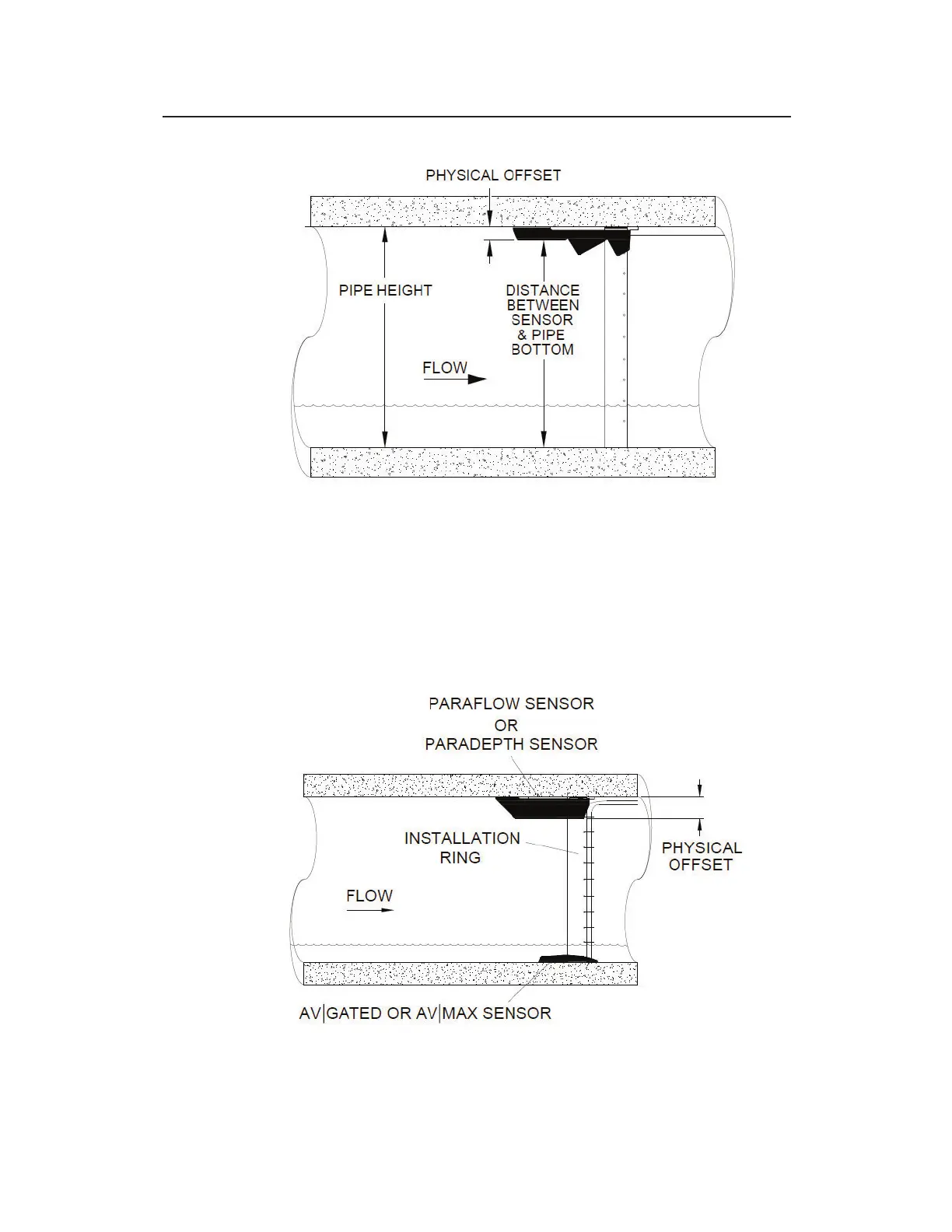

14. Determine the Physical Offset for the ParaDepth/ParaFlow
sensor by measuring the distance from the crown (top) of the
pipe to the face of the sensor as shown in the picture below.
Measuring the Physical Offset of the ParaDepth or ParaFlow Sensors
