Sensor Installation and Connection 5-65
Note: For installations within wider manhole frames,
refer to Adding Extension Rods to the Mounting Bar for
information on extending the mounting bar before
proceeding with the installation. If the manhole or
manhole frame will not accommodate a Mounting Bar
with or without extensions, a Wall Mount Bar must be
installed. Refer to Installing the Wall Mount Bar for
installation instructions.
Perform the following procedure to install the Mounting Bar:
1. Hang large loop from the Mounting Bar tether behind top rung.

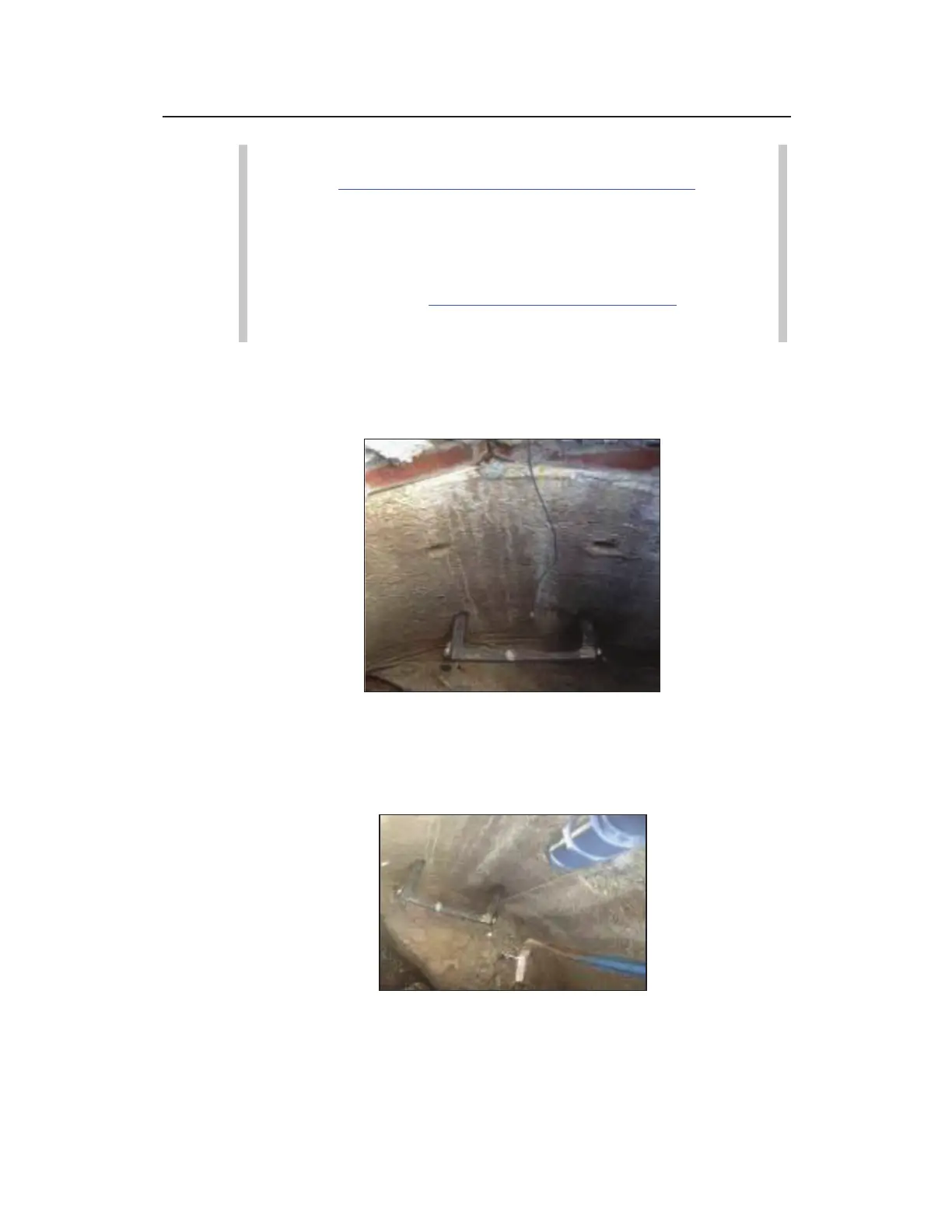

Passing Mounting Bar tether behind top rung
2. Use the J-Hook to pull the large loop under the rung and back
up towards you.
Using J-Hook to pull tether up from top rung
3. Pass the un-tethered end of the Mounting Bar through the large
loop, cinching the tether to the rung.
