Mount Rotation to Accommodate Bend
5. With the Mounting Bar in proper invert-orientation, turn knob
to extend rod to just short of manhole frame walls. Position the
bar so that the distance between it and the street surface is 8
inches (200 mm) to 12 inches (305 mm) and is mounted within
the manhole frame.
Note: Mount the bar sufficiently deep to prevent it from
being dislodged when the manhole lid is opened.

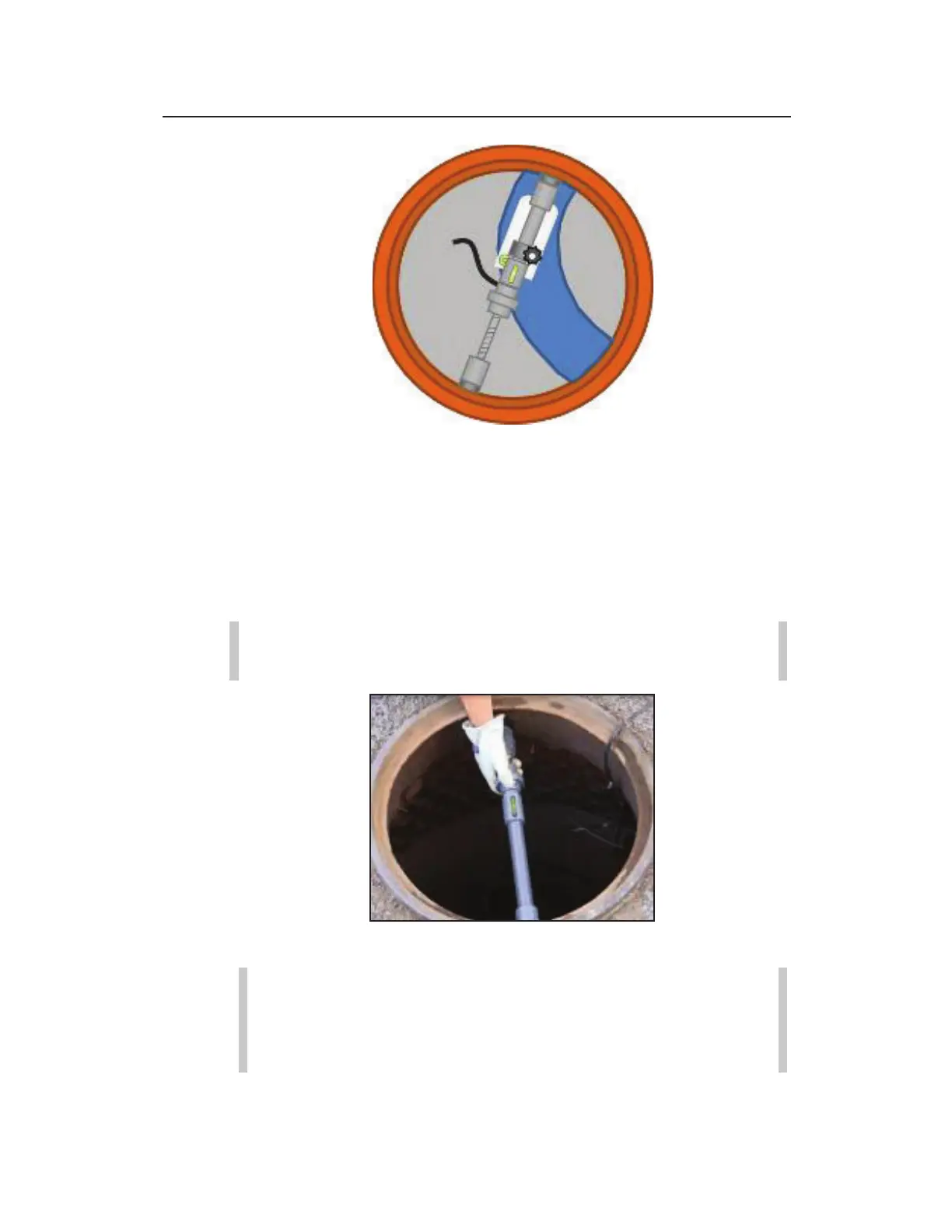

Positioning the Mounting Bar in the manhole frame
Note: The Mounting Bar may be positioned at greater
than 12 inches (305 mm) from the street level; however,
the goal of the installation should be to maximize the level
of surcharge the sensor can measure.
