Sensor Installation and Connection 5-67

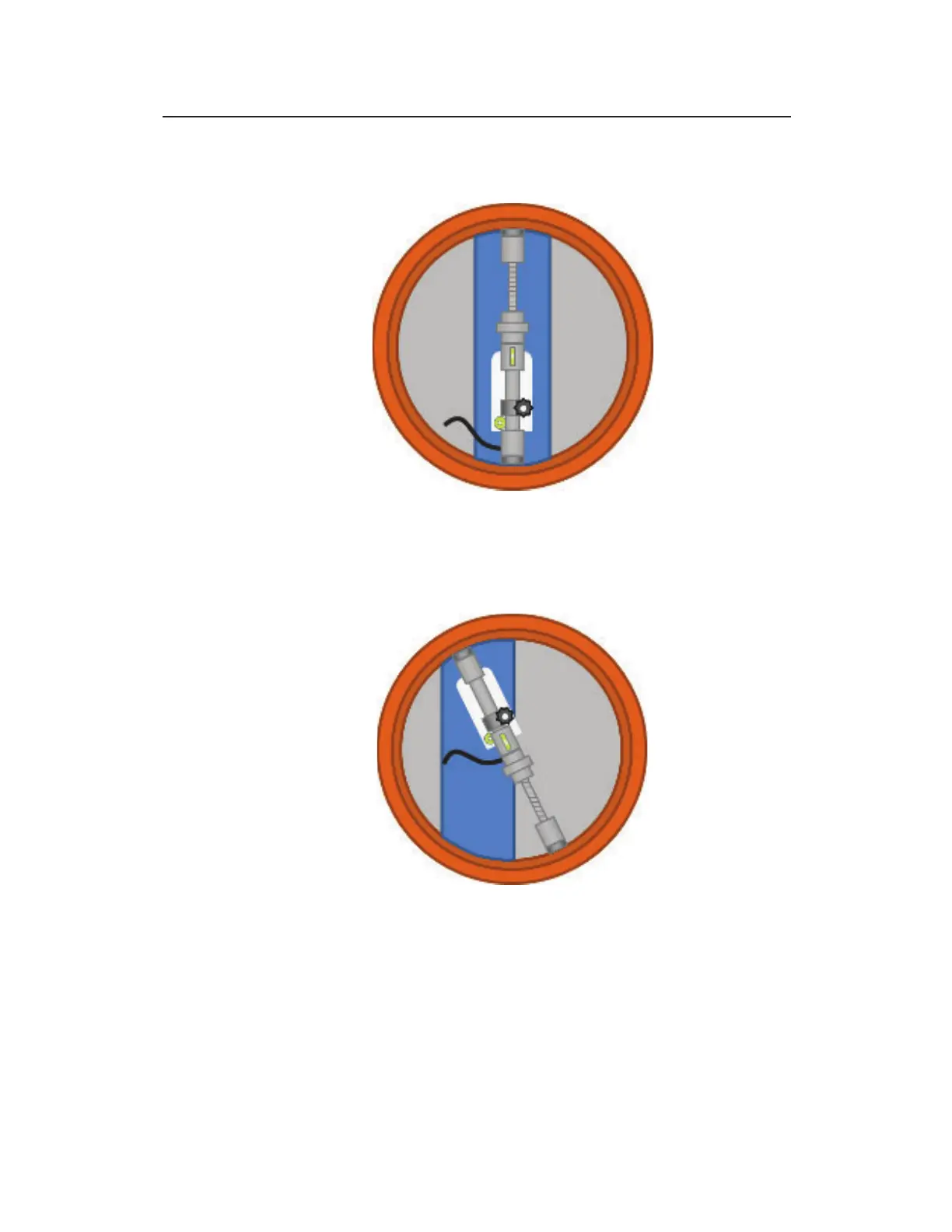

If the invert runs through the center of the manhole, the
Mounting Bar should be installed parallel to the flow.
Parallel Mount
If the invert is offset from the center, rotate the Mounting
Bar appropriately so the sensor housing can be pointed
directly at the invert.
Mount Rotation to Offset Accommodation
If the invert takes a bend as it runs through the manhole,
rotate the Mounting Bar appropriately to accommodate the
bend.
