5-70 ADS TRITON+ Manual

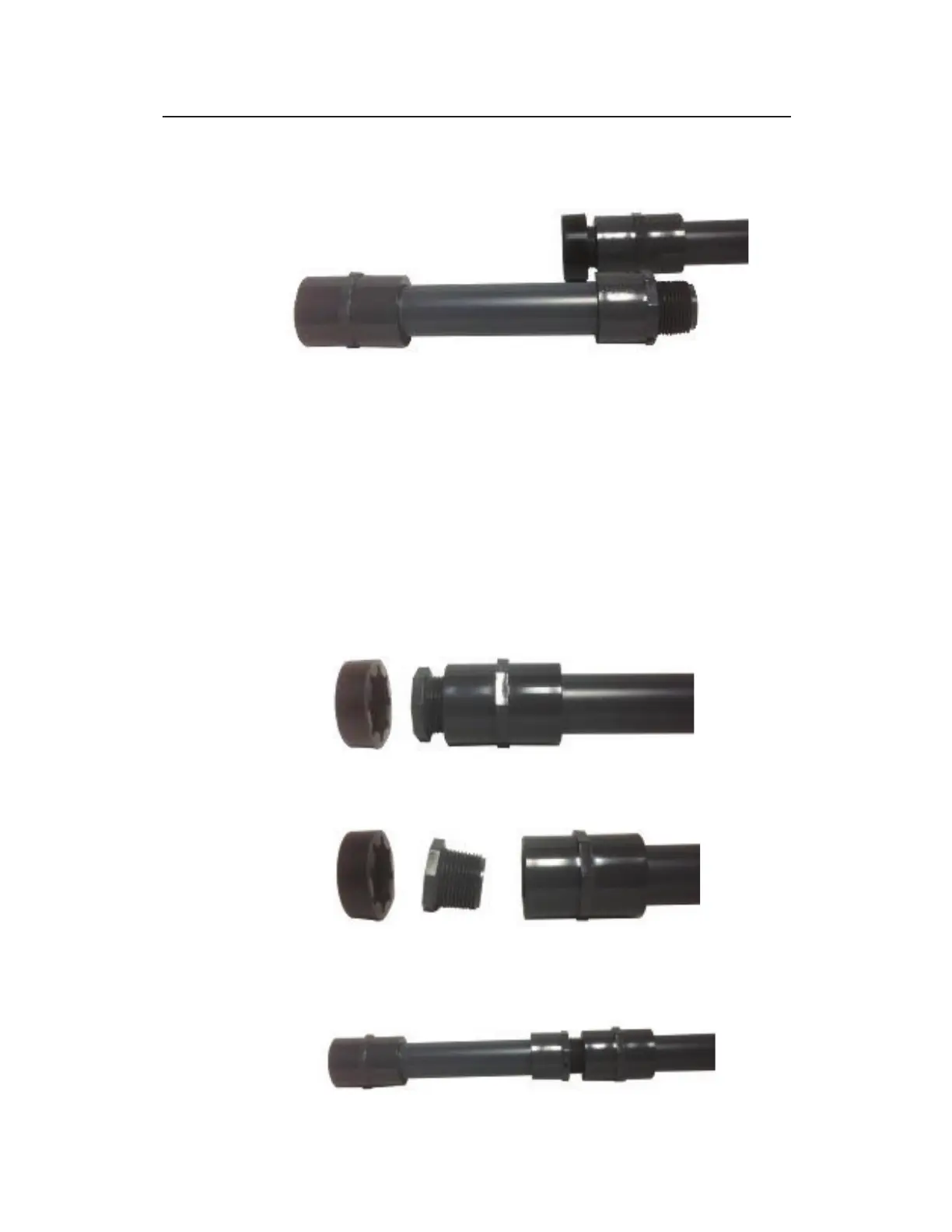

Adding Extension Rods to the Mounting Bar
Extension Rod
If the manhole is larger than standard-sized openings, utilize one
Mounting Bar Extension Rod (ADS p/n 8000-0481) for frames
extending 28 inches (711 mm) to 36 inches (914 mm) and two
Mounting Bar Extension Rods for frames 36 inches (914 mm) to 44
inches (1118 mm).
Add Extension Rods to the Mounting Bar as follows:
1. From the un-tethered end of the Mounting bar, carefully pry
the black rubber foot off the end of the gray threaded plug.
Removing the black rubber foot
2. Unscrew and remove the gray threaded plug.
Removing the gray threaded plug
3. Screw and hand-tighten the Extension Rod onto the end of the
Mounting Bar.
Screwing the Extension Rod onto the Mounting Bar
