Sensor Installation and Connection 5-71

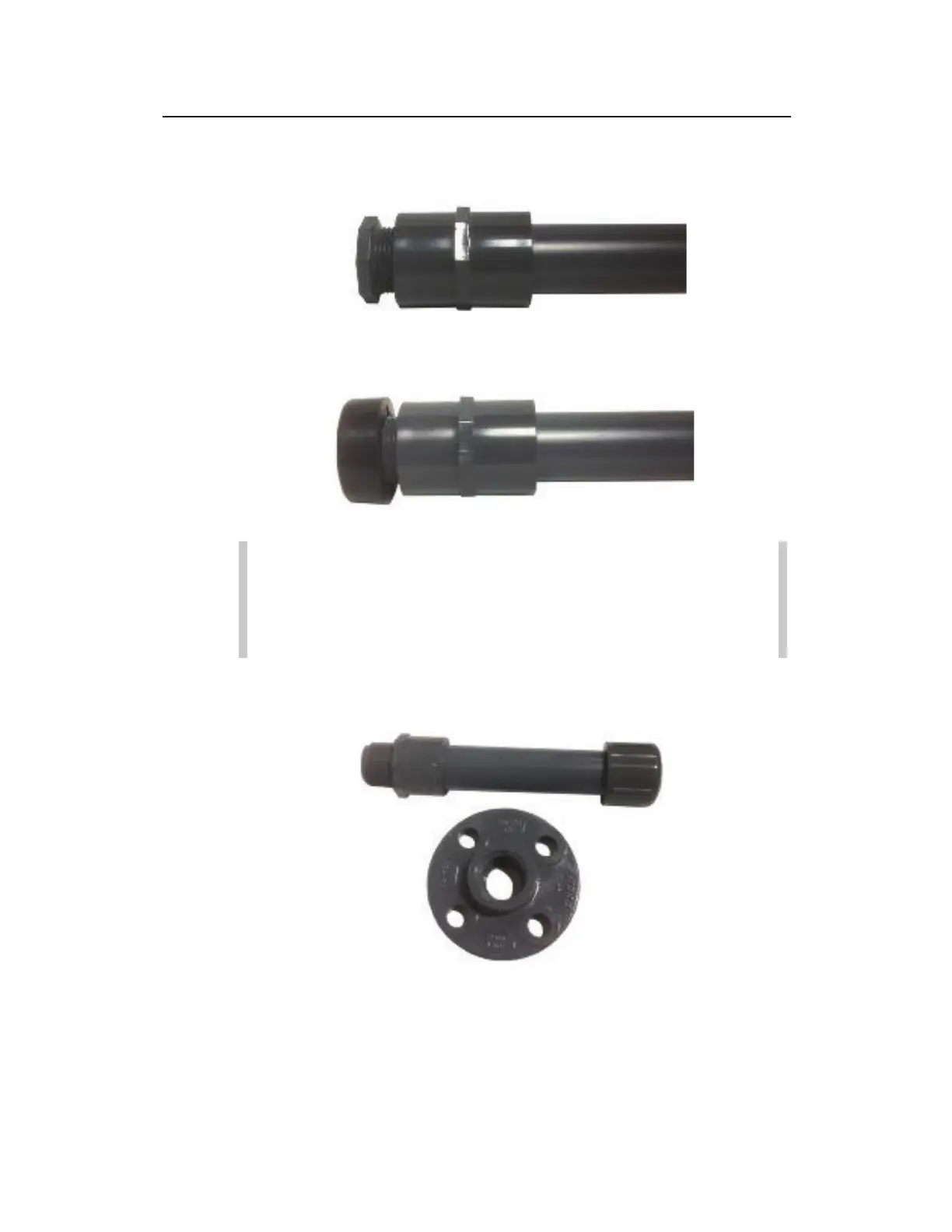

4. Screw and tighten the gray plug onto the end of the Extension
Rod.
Screwing the gray plug onto the Extension Rod
5. Replace the black rubber foot.
Replacing the black rubber foot
Note: When adding two Extension Rods, repeat the
process on the tethered end, ensuring that the Mounting
Bar tether remains secured at the end after the Rod is
added.
Installing Wall Mount Bar
Wall Mount Bar with bracket
If the manhole or manhole frame will not accommodate a standard
Mounting Bar with or without extensions, utilize the Wall Mount
Bar (ADS p/n 8000-0484) for installation.
Install the Wall Mount Bar as follows:
